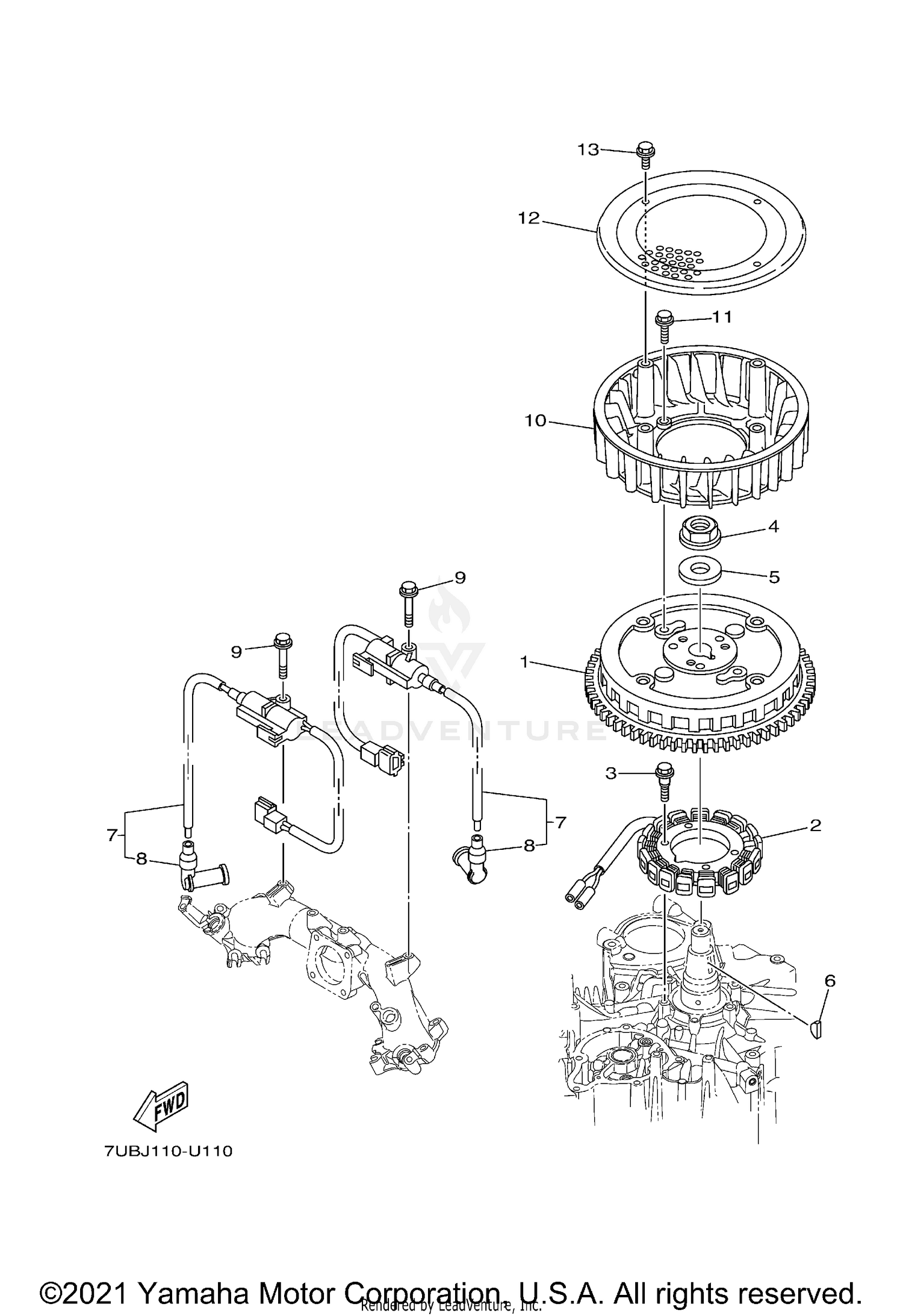

MAGNETO
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7UD-H5550-00-00 | ROTOR ASSY Price: $222.99 |
| 2 | 7UD-H1410-20-00 | STATOR ASSY Price: $107.99 |
| 3 | 7CU-H5119-00-00 | BOLT Price: $3.65 |
| 4 | 90179-22803-00 | NUT Price: $14.49 |
| 5 | 90201-22810-00 | WASHER, PLATE Price: $5.99 |
| 6 | 90280-04801-00 | KEY, WOODRUFF Price: $5.99 |
| 7 | 7UD-H2310-01-00 | IGN.COIL ASSY. Price: $60.99 |
| 8 | 7UD-H2370-00-00 | PLUG CAP ASSY Price: $10.49 |
| 9 | 95817-06040-00 | BOLT, FLANGE This part replaces 95802-06040-00. Price: $6.49 |
| 10 | 7UD-H5586-00-00 | FAN Price: $34.99 |
| 11 | 95817-06020-00 | BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 12 | 7UD-H5525-00-00 | COVER Price: $25.99 |
