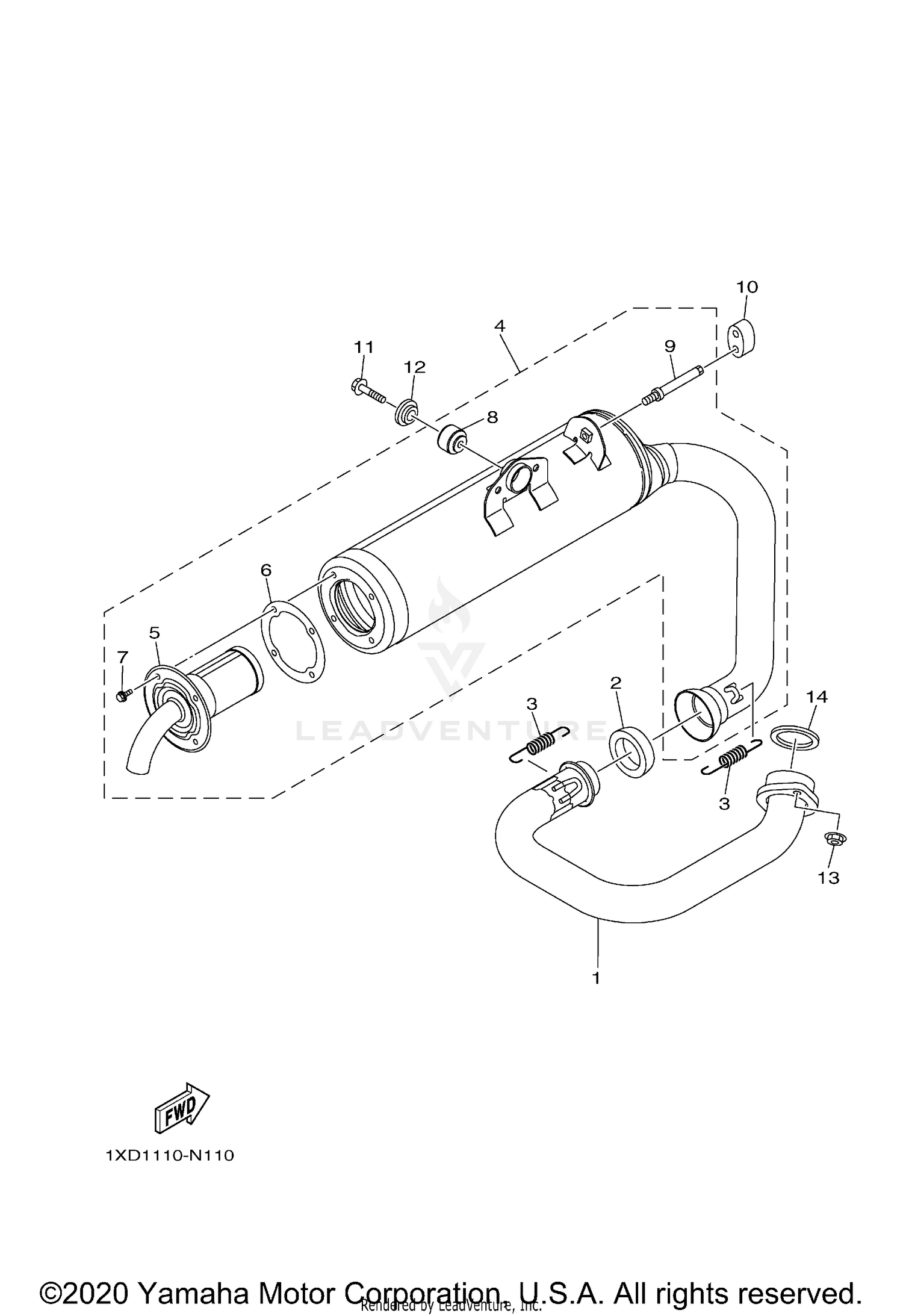

EXHAUST
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1XD-E4611-02-00 | PIPE, EXHAUST 1 This part replaces 1XD-E4611-01-00. Price: $147.99 |
| 2 | 1XD-E4714-01-00 | GASKET, MUFFLER Price: $64.99 |
| 3 | 90506-26012-00 | SPRING, TENSION Price: $15.49 |
| 4 | 1XD-E4710-02-00 | MUFFLER ASSY 1 Price: $544.99 |
| 5 | 2BG-E4780-00-00 | SPARK ARRESTER ASSY Price: $75.99 |
| 6 | 2BG-E4755-00-00 | GASKET, SILENCER Price: $23.99 |
| 7 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 8 | 1HP-F7414-00-00 | DAMPER, FOOTREST Price: $23.99 |
| 9 | 1XD-E4745-00-00 | SHAFT Price: $30.99 |
| 10 | 1XD-14737-00-00 | DAMPER, MUFFLER Price: $10.99 |
| 11 | 95817-08040-00 | BOLT, FLANGE This part replaces 95812-08040-00. Price: $7.49 |
| 12 | 3B4-14759-01-00 | WASHER Price: $19.99 |
| 13 | 95702-08500-00 | NUT, WITH WASHER Price: $1.05 |
