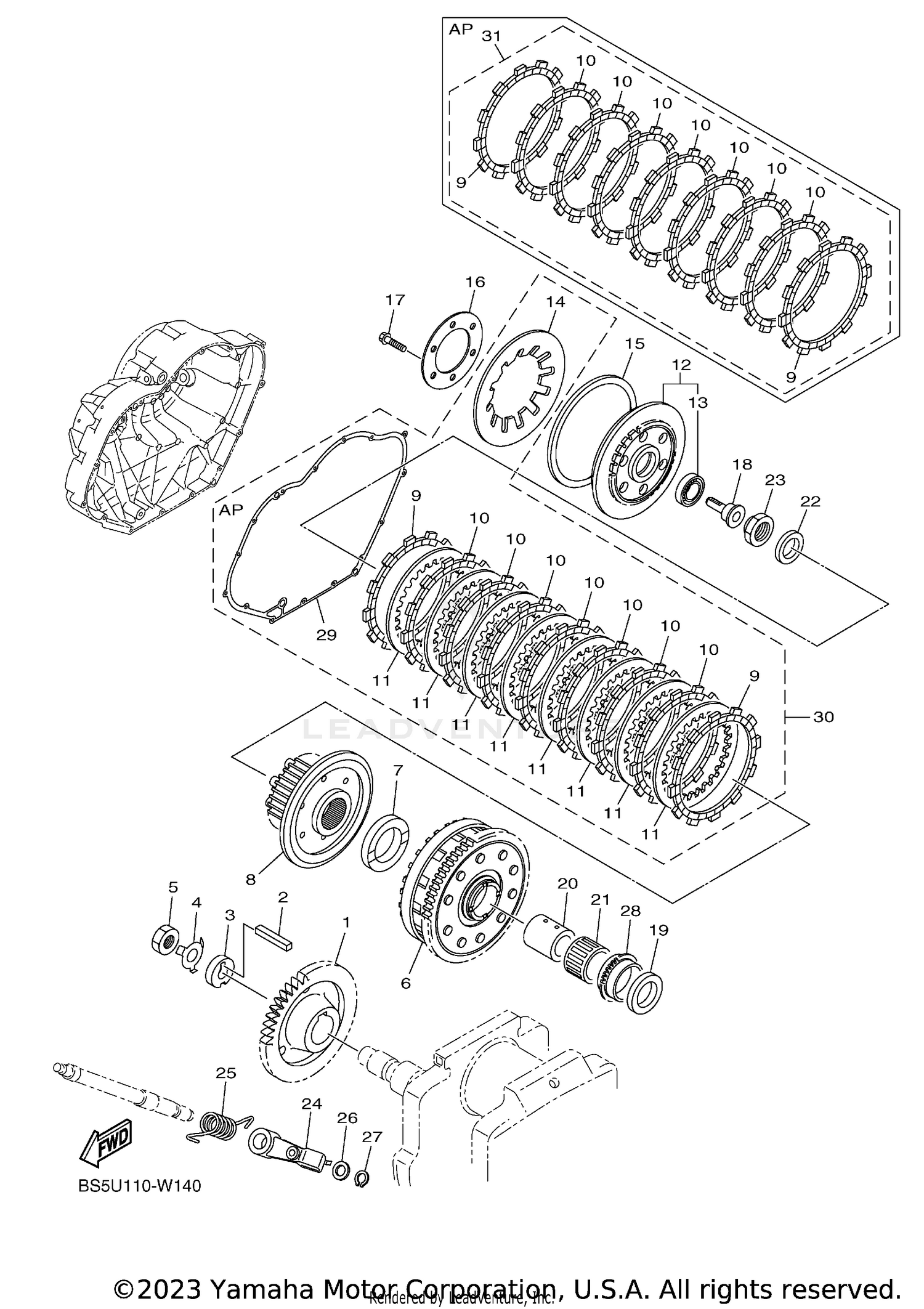

| Ref | Part Number | Description |
|---|
| 1 |
5S7-16111-00-00 |
GEAR, PRIMARY DRIVE Price: $255.99 |
| 2 |
4WM-16193-00-00 |
KEY, FEATHER Price: $7.99 |
| 3 |
3D8-16181-10-00 |
SPACER 1 Price: $52.99 |
| 4 |
90215-18003-00 |
WASHER, LOCK Price: $11.49 |
| 5 |
90170-18008-00 |
NUT Price: $13.99 |
| 6 |
1TP-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $485.99 |
| 7 |
5YU-16154-00-00 |
PLATE, THRUST 1 Price: $34.99 |
| 8 |
3D8-16371-00-00 |
BOSS, CLUTCH Price: $170.99 |
| 9 |
341-16321-20-00 |
PLATE, FRICTION Price: $17.99 |
| 10 |
5JW-16321-10-00 |
PLATE, FRICTION Price: $33.99 |
| 11 |
2H7-16325-10-00 |
PLATE, CLUTCH 2 This part replaces 2H7-16325-00-00. Price: $12.99 |
| 12 |
3D8-16350-00-00 |
PRESSURE PLATE ASSY Price: $118.99 |
| 13 |
93306-00315-00 |
BEARING This part replaces 93306-00304-00. Price: $36.99 |
| 14 |
5S7-16334-00-00 |
SPRING, CLUTCH 2 Price: $89.99 |
| 15 |
36Y-16335-00-00 |
HOUSING, SPRING Price: $39.99 |
| 16 |
1TX-16352-00-00 |
PLATE, PRESSURE 2 Price: $41.99 |
| 17 |
97017-06025-00 |
BOLT This part replaces 97002-06025-00. Price: $4.55 |
| 18 |
4XV-16356-01-00 |
ROD, PUSH 1 Price: $63.99 |
| 19 |
3D8-16164-10-00 |
PLATE, THRUST 2 Price: $66.99 |
| 20 |
90387-26006-00 |
COLLAR Price: $43.99 |
| 21 |
93310-33560-00 |
BEARING Price: $39.99 |
| 22 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 23 |
90179-20022-00 |
NUT This part replaces 90179-20007-00. Price: $15.49 |
| 24 |
5S7-16340-00-00 |
PUSH LEVER ASSY Price: $30.99 |
| 25 |
90508-18040-00 |
SPRING, TORSION Price: $6.49 |
| 26 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 27 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 28 |
3D8-13354-10-00 |
SPROCKET, DRIVE Price: $99.99 |
| 29 |
3D8-15461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $38.99 |
