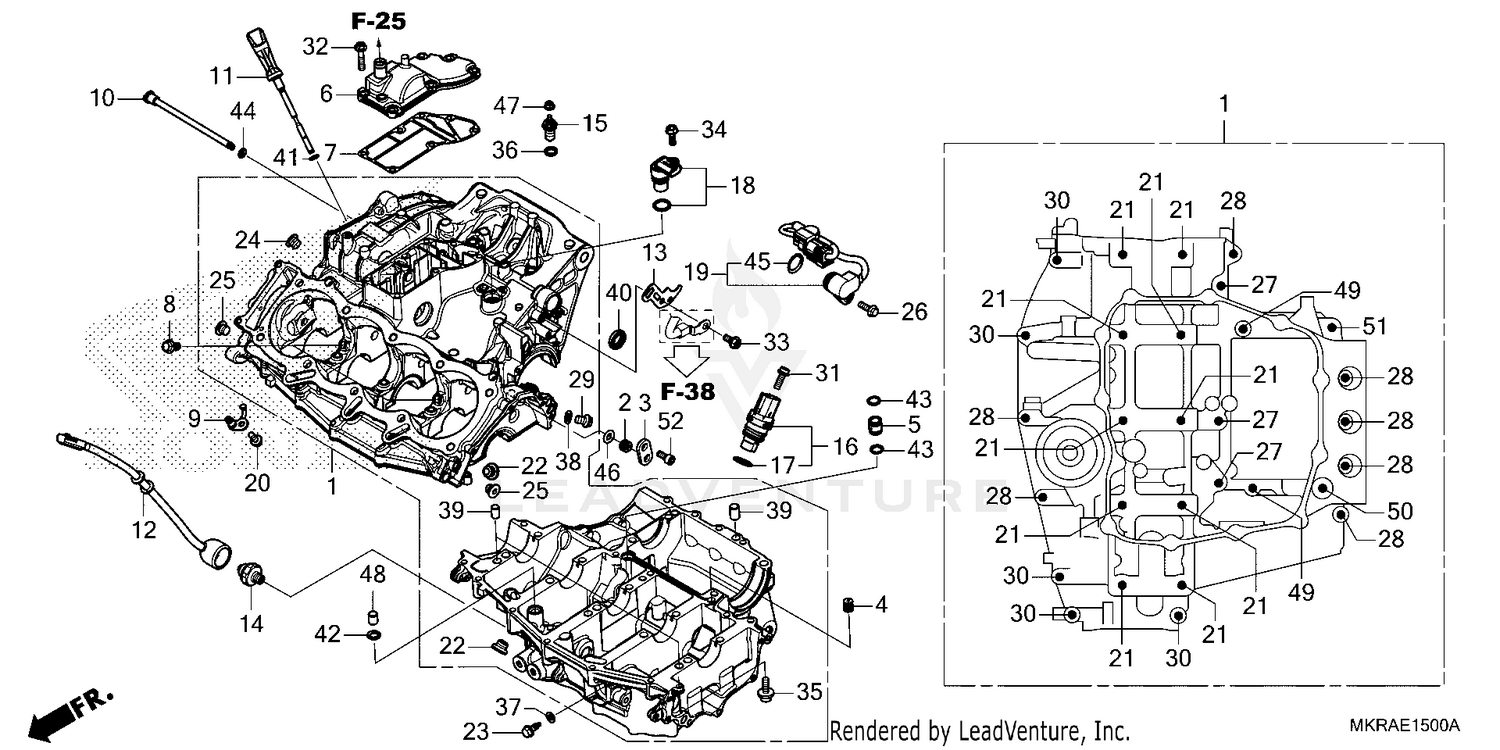

| Ref | Part Number | Description |
|---|
| 1 |
11000-MKR-DH0 |
CRANKCASE SET Price: $2,027.79 |
| 2 |
11202-MKR-D10 |
COLLAR, SEALING Price: $6.22 |
| 3 |
11205-MKR-D10 |
PLATE, SEALING COLLAR STOPPER Price: $2.45 |
| 4 |
11206-MKR-D10 |
ORIFICE Price: $7.20 |
| 5 |
11207-MKR-D10 |
COLLAR, ORIFICE Price: $8.16 |
| 6 |
11410-MKR-D10 |
COVER, STARTER GEAR Price: $93.98 |
| 7 |
11415-MKR-D11 |
GASKET, STARTER GEAR COVER Price: $9.20 |
| 8 |
15290-MKR-DH1 |
BOLT, OIL JET Price: $37.51 |
| 9 |
15330-MKR-D11 |
JET, PISTON Price: $26.51 |
| 10 |
15350-MFL-000 |
PIPE, TRANSMISSION OIL JET Price: $54.60 |
| 11 |
15750-MKR-D10 |
DIPSTICK, OIL Price: $22.40 |
| 12 |
32101-MKR-D10 |
SUB-HARNESS, ENGINE Price: $10.51 |
| 13 |
32154-MKR-D10 |
STAY, STROKE SENSOR Price: $4.47 |
| 14 |
35500-MJ4-024 |
SWITCH ASSY., OIL PRESSURE (DENSO) Price: $51.42 |
| 15 |
35600-MKF-D41 |
SWITCH ASSY., NEUTRAL Price: $24.71 |
| 16 |
37500-MKZ-J31 |
SENSOR ASSY., CRANK Price: $54.11 |
| 17 |
37501-K2Y-J01 |
O-RING Price: $1.13 |
| 18 |
37700-MJE-D01 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $29.33 |
| 19 |
38800-MKR-D11 |
SENSOR ASSY., ANGLE Price: $234.87 |
| 20 |
90001-MJP-G50 |
BOLT, FLANGE SOCKET (6X14) Price: $2.40 |
| 21 |
90001-MKR-D11 |
BOLT, FLANGE (9X120) Price: $8.56 |
| 22 |
90002-RGA-000 |
BOLT, SEALING (12X8) Price: $6.67 |
| 23 |
90004-MKR-D10 |
BOLT, SPECIAL (6X18) Price: $2.38 |
| 24 |
90005-MAZ-000 |
BOLT, SOCKET (10MM) Price: $2.58 |
| 25 |
90005-MJP-G80 |
BOLT, SOCKET (10MM) Price: $4.24 |
| 26 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 27 |
90017-MEL-000 |
BOLT, FLANGE (7X60) Price: $2.64 |
| 28 |
90017-MFL-000 |
BOLT, FLANGE (7X50) Price: $2.55 |
| 29 |
90019-MAT-000 |
BOLT, SEALING (8MM) Price: $7.71 |
| 30 |
90019-MFA-D00 |
BOLT, FLANGE (7X40) Price: $2.31 |
| 31 |
90026-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.55 |
| 32 |
90027-GHB-700 |
BOLT, FLANGE (6X30) Price: $2.64 |
| 33 |
90030-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 34 |
90031-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.45 |
| 35 |
90102-VK4-000 |
BOLT, FLANGE SOCKET (6X20) Price: $1.26 |
| 36 |
90443-MJ6-000 |
WASHER, NEUTRAL Price: $2.20 |
| 37 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 38 |
90475-703-000 |
WASHER C (8MM) Price: $1.22 |
| 39 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 40 |
91203-KA4-771 |
OIL SEAL (14X22X5) (NOK) Price: $4.80 |
| 41 |
91303-MJ0-003 |
O-RING (6.5X2.2) (ARAI) Price: $5.09 |
| 42 |
91305-422-000 |
O-RING (9.8X2.4) (Honda Code 0688986) Price: $2.96 |
| 43 |
91305-R7L-003 |
O-RING (10.6X1.9) Price: $3.45 |
| 44 |
91313-MA6-005 |
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000. Price: $2.98 |
| 45 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 46 |
91314-PC9-004 |
O-RING (8.5X1.9) (NOK) Price: $4.05 |
| 47 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.28 |
| 48 |
94301-10120 |
PIN, DOWEL (10X12) Price: $2.58 |
| 49 |
95701-08055-00 |
BOLT, FLANGE (8X55) Price: $2.57 |
| 50 |
95701-08080-00 |
BOLT, FLANGE (8X80) Price: $1.96 |
| 51 |
95701-10060-00 |
BOLT, FLANGE (10X60) Price: $2.25 |
