Parts Catalog

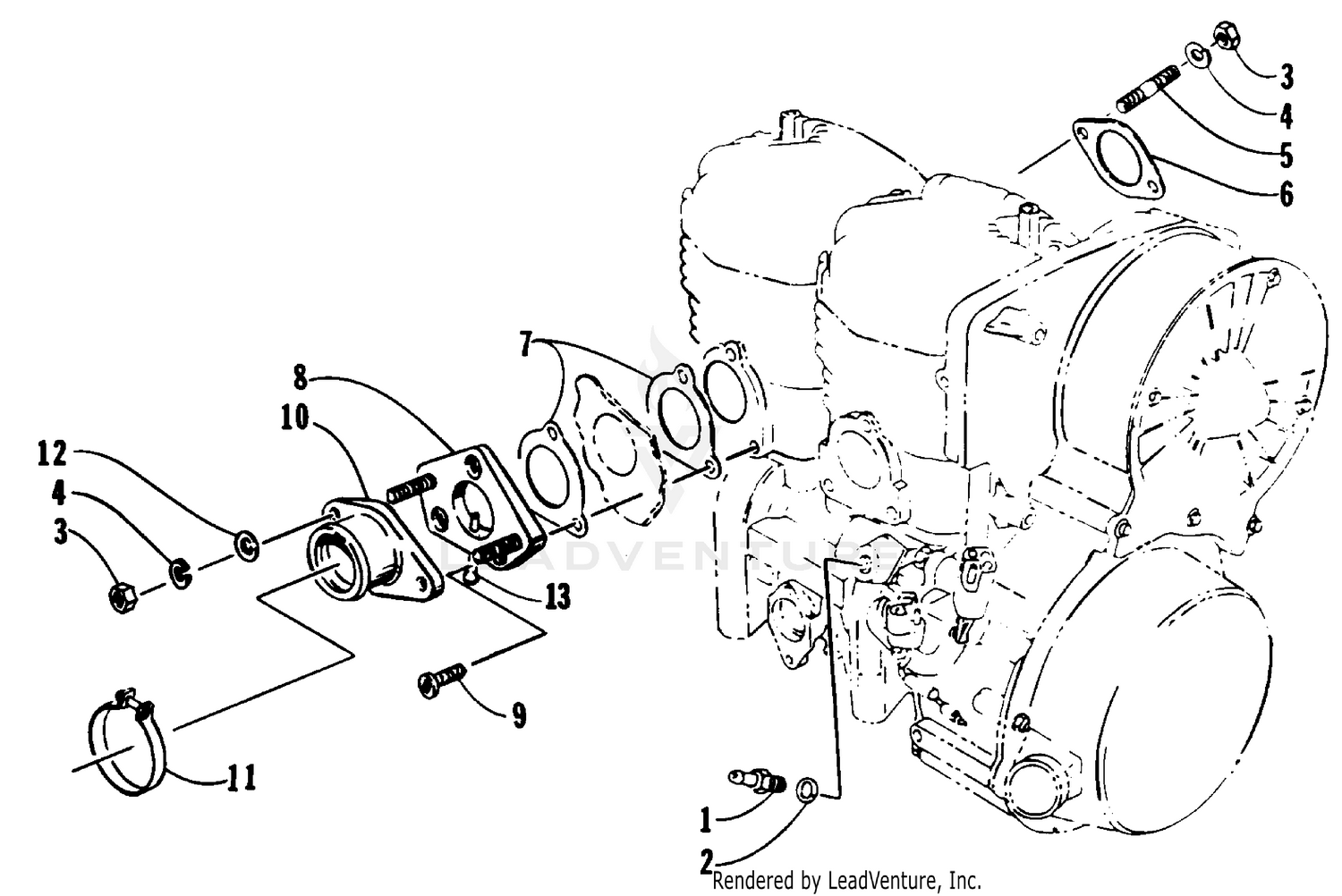

INTAKE ASSEMBLY [60776]

Parts (12)

Ref	Part Number	Description
1	3002-040	Union, Hose M9 Price: $7.95
2	3002-276	Gasket, Impulse,10MM Price: $0.89
3	3007-416	Nut Price: $2.69
4	3004-280	Washer, Lock, 8MM Price: $1.67
5	3007-419	Bolt, Stud Price: $4.94
6	3003-503	Gasket, Exhaust - Non-Asbestos Price: $19.04
7	3005-952	GASKET, INTAKE MANIFOLD Price: $17.92
8	0670-190	PLATE,ADAPTER-CARB. FLANGE Price: $13.95
9	3007-674	Bolt Price: $4.26
10	3003-587	FLANGE Price: $75.95
11	0109-709	Clamp Price: $9.95
12	3423-204	Washer Price: $1.29
