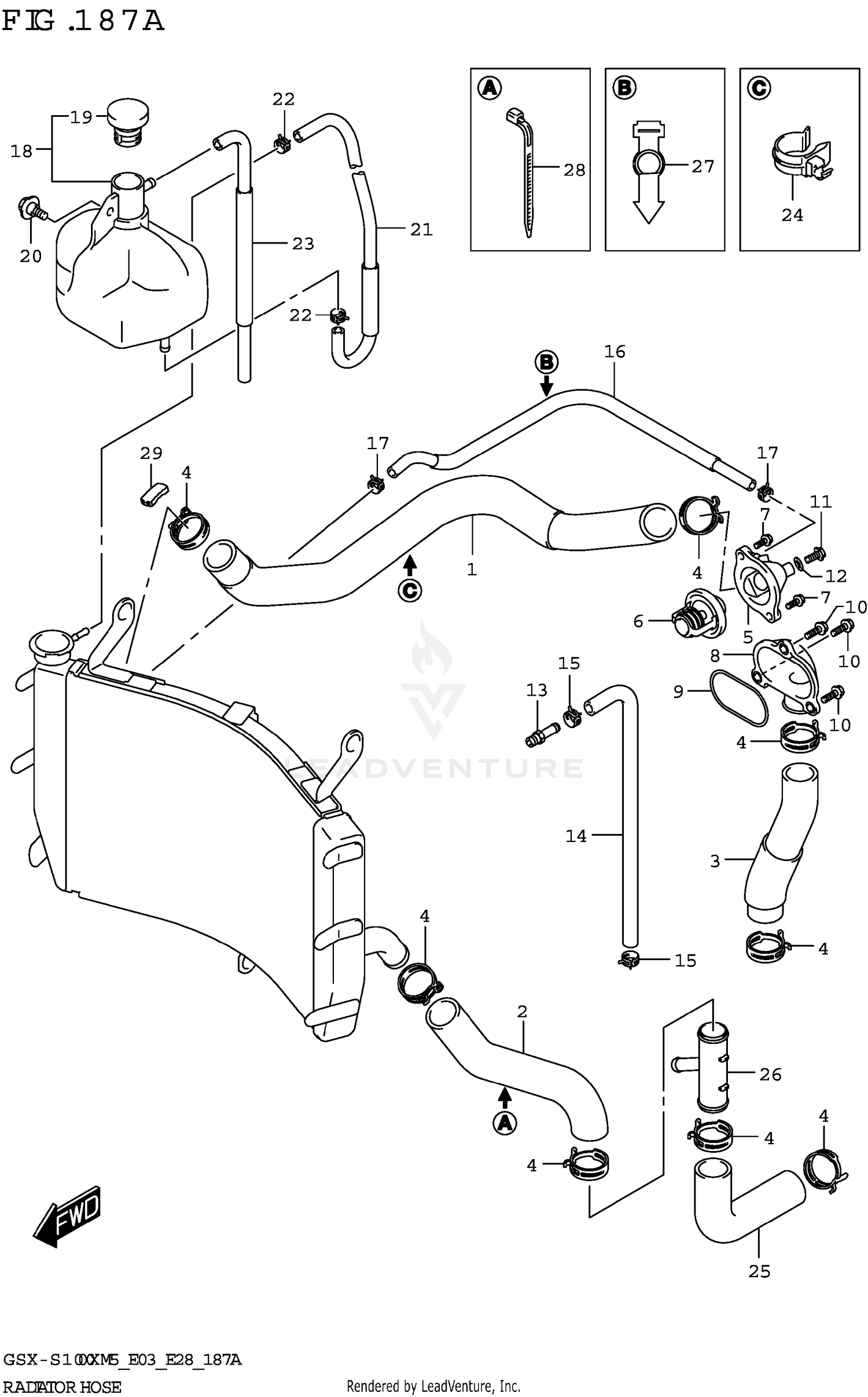

| Ref | Part Number | Description |
|---|
| 1 |
17851-04K10 |
HOSE, RDTR INLET Price: $35.41 |
| 2 |
17852-04K00 |
HOSE, RDTR OUTLET Price: $24.25 |
| 3 |
17853-40F10 |
HOSE, CYLINDER INLET Price: $29.69 |
| 4 |
09401-29001 |
CLAMP Price: $3.56 |
| 5 |
17661-35F00 |
COVER, THERMOSTAT Price: $54.76 |
| 6 |
17670-06G61 |
THERMOSTAT, WATER Price: $31.83 |
| 7 |
01547-0620A |
BOLT Price: $2.45 |
| 8 |
17861-33E20 |
CONNECTOR, CYLINDER WATER Price: $27.87 |
| 9 |
17863-33E00 |
O RING Price: $4.97 |
| 10 |
01547-0620A |
BOLT Price: $2.45 |
| 11 |
17568-50F00 |
UNION BOLT,AIR VENT Price: $6.05 |
| 12 |
09168-06026 |
GASKET (6.4X11.5X0.84) Price: $3.78 |
| 13 |
09362-09011 |
UNION Price: $10.22 |
| 14 |
17854-04K10 |
HOSE, WATER BYPASS Price: $13.95 |
| 15 |
09401-12414 |
CLIP Price: $4.02 |
| 16 |
17857-04K10 |
HOSE, WATER AIR BLEED Price: Call Us |
| 17 |
09401-10409 |
CLIP (ID:10.5) Price: $2.75 |
| 18 |
17910-04K00 |
TANK ASSY, RESERVOIR Price: $64.59 |
| 20 |
09111-06085 |
BOLT (6X12) Price: $5.61 |
| 21 |
17981-04K10 |
HOSE, RSVR TANK INLET Price: $10.58 |
| 22 |
09401-08411 |
CLIP (ID:8.6) Price: $2.15 |
| 23 |
17982-04K00 |
HOSE, RSVR TANK OVER FLOW Price: $13.45 |
| 24 |
09408-00321 |
CLAMP Price: $3.52 |
| 25 |
17855-04K00 |
HOSE, RDTR OUTLET NO.2 Price: $22.17 |
| 26 |
17881-04K00 |
PIPE, WATER HOSE JOINT Price: $8.45 |
| 27 |
17891-04K00 |
BAND, WATER HOSE Price: $11.69 |
| 28 |
09407-18402 |
CLAMP (L:165) Price: $2.68 |
