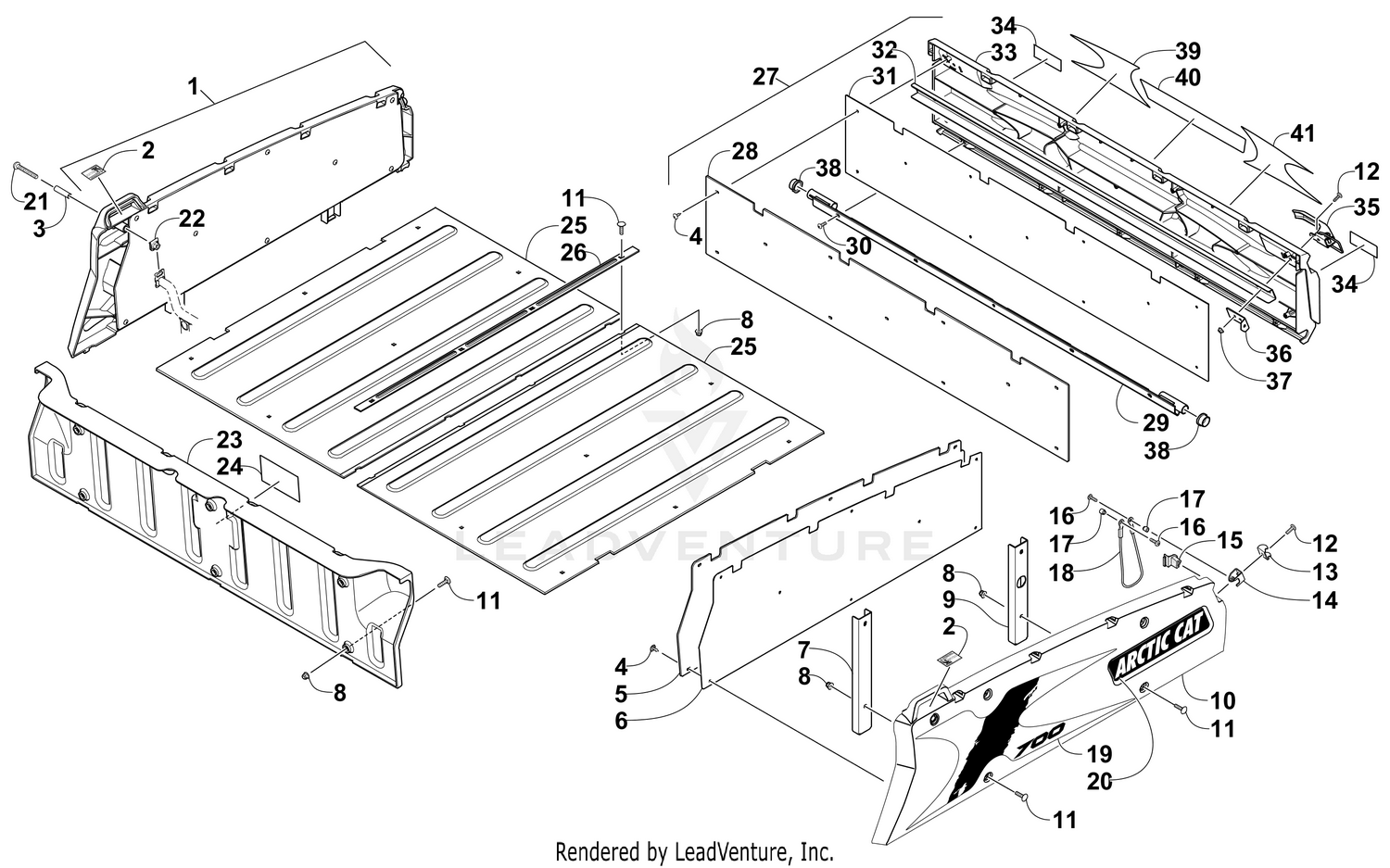

CARGO BOX AND TAILGATE ASSEMBLY [300117]

Parts (43)

Ref	Part Number	Description
1	4506-522	Side, Cargo Box - Assembly - Right Price: $259.95
2	4411-882	Decal, Warning - Pinch Point Price: $3.46
3	2416-368	Spacer Price: $6.43
4	1423-011	SCREW,TSTRH SELF TAP#10 X 3/4 Price: $1.20
5	4506-524	Panel, Side - Inner Price: $96.95
6	2416-647	Pad, Foam Price: $21.79
7	4506-154	Brace, Support - Rear Price: $54.95
8	8424-802	NUT,HEX-FLG M8X1.25 CL8 Z&Y Price: $0.59
9	4506-153	Brace, Support - Front Price: $50.71
10	2416-392	Side, Cargo Box - Right Price: $134.95
10	2416-393	Side, Cargo Box - Left Price: $134.95
11	0423-623	BOLT,CRG-M8-1.25X30-BLK Price: $1.80
12	1423-038	Screw, Machine Price: $1.56
13	2516-710	Bracket, Latch Price: $18.52
14	2416-379	Bracket, Retaining - Cable Price: $18.52
15	2416-390	Insert, Panel - Right Price: $2.98
15	2416-391	Insert, Panel - Left Price: $2.98
16	8470-520	Screw, Machine Price: $0.48
17	1423-009	SPACER, TAILGATE CABLE Price: $4.71
18	0487-080	Cable, Tailgate Price: $20.38
19	4411-928	Decal, Side Panel - Right Price: $77.95
19	4411-929	Decal, Side Panel - Left Price: $4.17
20	2411-208	Decal, "Arctic Cat" - Right Price: $20.43
20	2411-209	Decal, "Arctic Cat" - Left Price: $20.43
21	1423-010	SCREW,TSPNH M10X1.25X70 4037A RIE Price: $12.51
22	2416-378	Clip, U-Nut Price: $20.38
23	4406-588	Panel, Front Price: $145.95
24	4411-127	DECAL,WARNING-CARGO Price: $20.38
25	2416-396	Panel, Lower Price: $181.95
26	2516-871	Bracket, Retaining - Lower Panel Price: $37.75
28	4506-526	Panel, Tailgate - Inner Price: $136.03
29	4506-626	Shaft, Pivot - Tailgate Price: $129.95
30	1423-083	SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE Price: $0.69
31	2416-648	Pad, Foam Price: $20.38
32	2416-652	SUPPORT, TAILGATE Price: $74.95
33	2416-395	Panel, Tailgate - Outer Price: $145.95
34	2411-182	Decal, Reflector - Red Price: $6.57
35	2516-729	Latch, Tailgate Price: $64.95
36	2416-370	Bracket, Support - Latch Price: $21.96
37	8424-602	NUT,HEX-FLG M6X1.0 CL8 Z&Y Price: $0.35
38	2416-363	Bushing Price: $7.38
39	4411-930	Decal, Tailgate - Right Price: $15.66
40	2411-212	Decal, Box -Arctic Cat Price: $5.14
