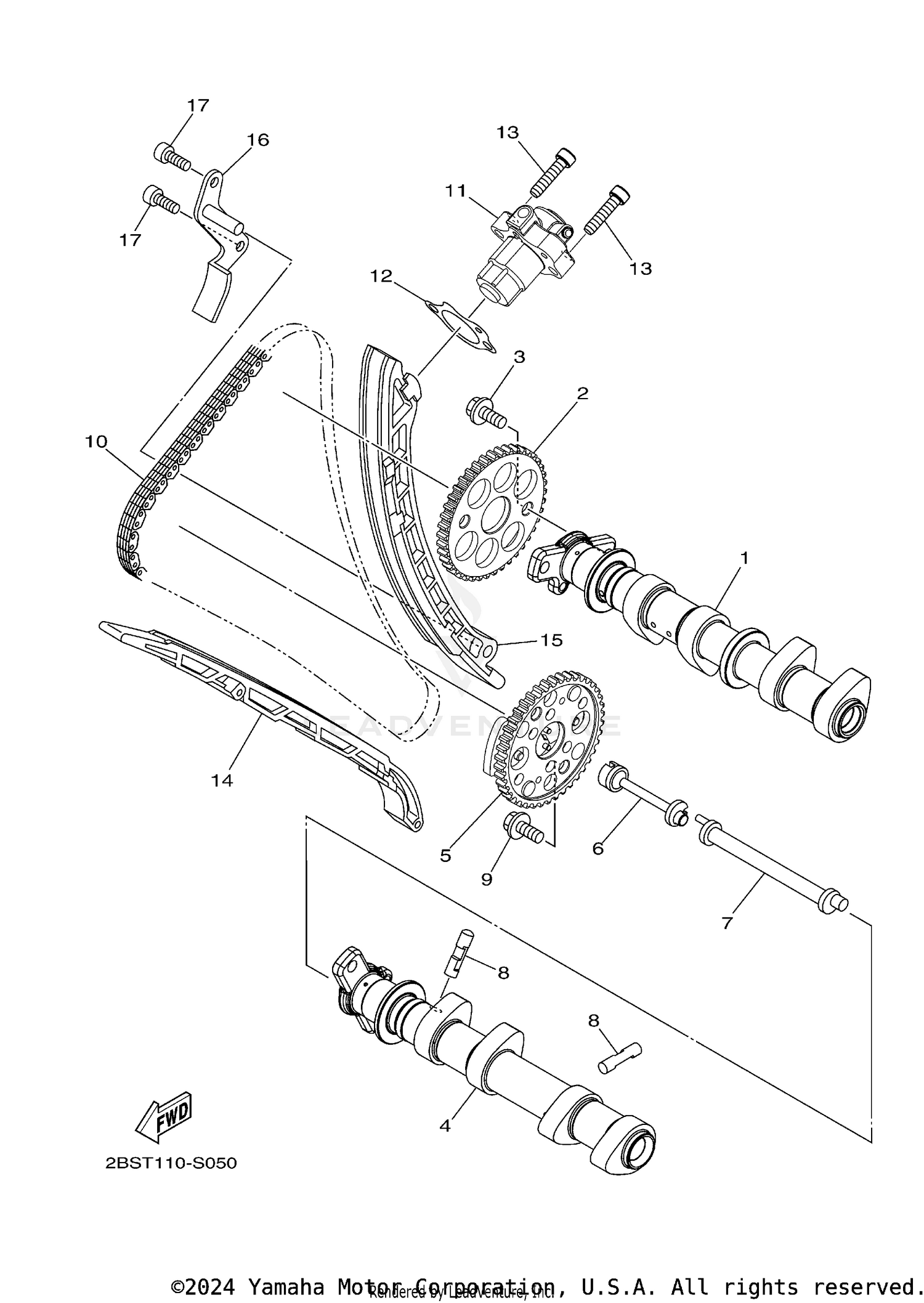

| Ref | Part Number | Description |
|---|
| 1 |
23P-12170-00-00 |
CAMSHAFT ASSY 1 Price: $408.99 |
| 2 |
23P-12176-00-00 |
SPROCKET, CAM CHAIN (42T) Price: $102.99 |
| 3 |
90105-07006-00 |
BOLT, FLANGE Price: $9.49 |
| 4 |
23P-12181-00-00 |
CAMSHAFT 2 Price: $405.99 |
| 5 |
23P-12280-00-00 |
DECOMPRESSION ASSY Price: $286.99 |
| 6 |
23P-12247-00-00 |
SHAFT, 1 Price: $64.99 |
| 7 |
23P-12257-00-00 |
SHAFT 2 Price: $61.99 |
| 8 |
23P-12288-00-00 |
CAM, DECOMPRESSION Price: $22.99 |
| 9 |
90105-07006-00 |
BOLT, FLANGE Price: $9.49 |
| 10 |
94591-61150-00 |
CHAIN (98XRH2015-150M) Price: $48.99 |
| 11 |
2BS-12210-02-00 |
TENSIONER ASSY, CAM CHAIN Price: $363.99 |
| 12 |
14B-12213-00-00 |
GASKET, TENSIONER CASE Price: $8.49 |
| 13 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 14 |
23P-12251-00-00 |
DAMPER, CHAIN 1 Price: $42.99 |
| 15 |
23P-12252-00-00 |
DAMPER, CHAIN 2 Price: $98.99 |
| 16 |
23P-12233-00-00 |
PLATE, GUIDE STOPPER 1 Price: $33.99 |
