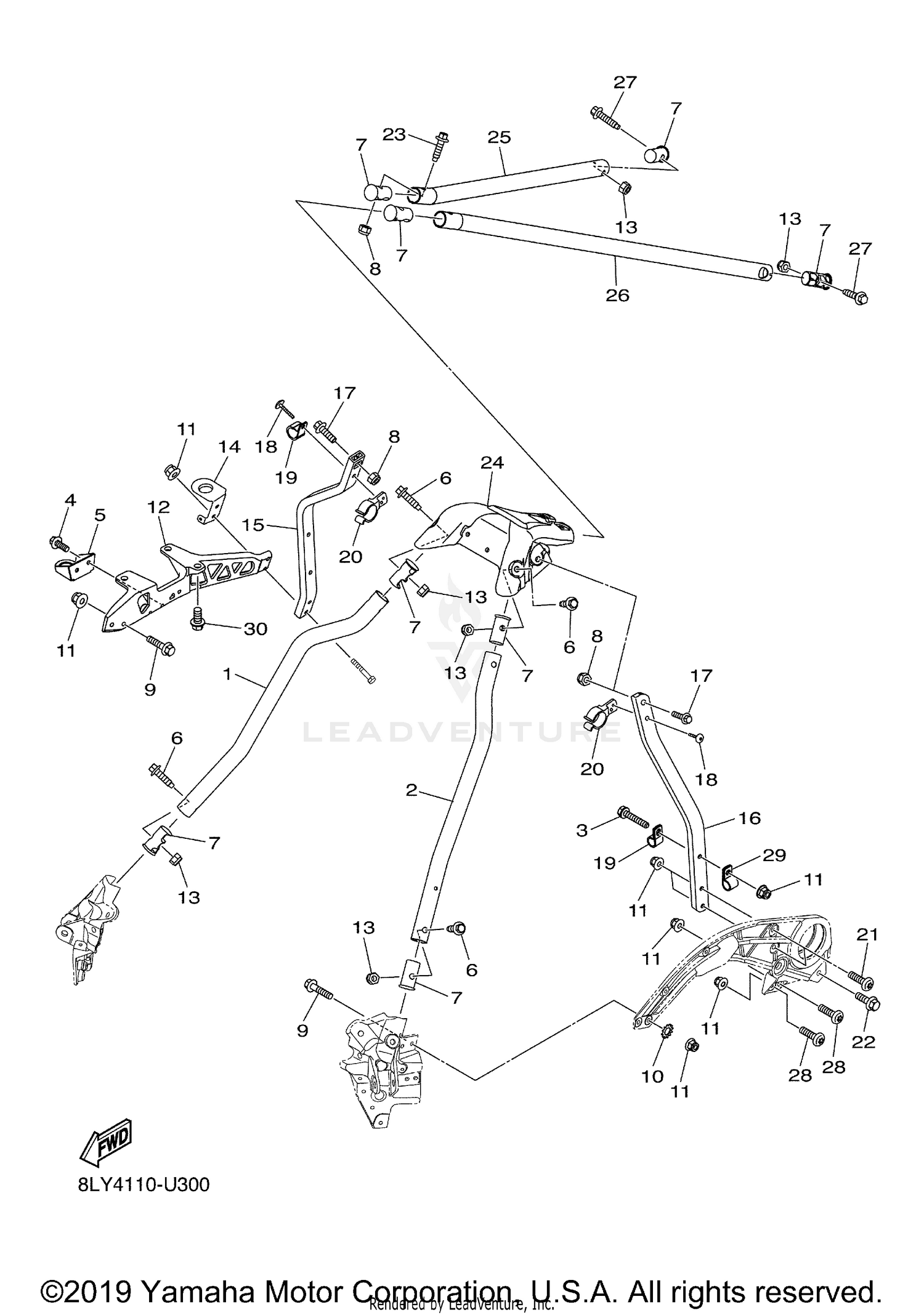

| Ref | Part Number | Description |
|---|
| 1 |
8KC-F1197-00-00 |
CROSS TUBE, 2 Price: $49.99 |
| 2 |
8KC-F1196-00-00 |
CROSS TUBE, 1 Price: $60.99 |
| 3 |
8KC-RA153-00-00 |
BOLT, FLANGE M6X25 Price: $3.60 |
| 4 |
8KC-RA146-00-00 |
BOLT, FLANGE M6X16 Price: $0.75 |
| 5 |
8KC-F194X-00-00 |
BRACKET 1 Price: $12.99 |
| 6 |
8JP-RA297-00-00 |
SCREW, 8 Price: $4.10 |
| 7 |
8JP-F111A-10-00 |
CAP, MAIN PIPE Price: $4.90 |
| 8 |
8JP-RA372-00-00 |
NUT, HEX. LOCKING M8X1.25 Price: $0.65 |
| 9 |
8JP-RA182-00-00 |
BOLT, FLANGE M6X1.0X25 Price: $0.70 |
| 10 |
8JM-RA407-00-00 |
WASHER, TOOTHED LOCK 1/4 Price: $0.35 |
| 11 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 12 |
8KC-F1932-00-00 |
REINF., FRAME FRONT 4 Price: $100.99 |
| 13 |
8JP-RA371-00-00 |
NUT, HEX. LOCKING M10X1/25 Price: $1.40 |
| 14 |
8MT-F112K-00-00 |
BRACKET 5 Price: $20.99 |
| 15 |
8KC-F111J-00-00 |
MEMBER, SIDE 1 Price: $109.99 |
| 16 |
8JP-F111K-00-00 |
MEMBER, SIDE 2 Price: $97.99 |
| 17 |
8JP-RA185-00-00 |
BOLT, FLANGE M8X1.25X20 Price: $0.90 |
| 18 |
8KC-RA288-00-00 |
SCREW, 10-12X1.00 Price: $4.65 |
| 19 |
8JP-RAB23-10-00 |
CLAMP, 21 Price: $2.99 |
| 20 |
8JP-F11C2-00-00 |
CLIP Price: $2.55 |
| 21 |
8KC-RA235-00-00 |
SCREW, 1 Price: $0.75 |
| 22 |
8JM-RA102-00-00 |
BOLT, FLANGE M8-1.25X25 Price: $1.45 |
| 23 |
8JP-RA187-00-00 |
BOLT, FLANGE M8X1.25X30 Price: $1.85 |
| 24 |
8KC-F3871-00-00 |
GATE, STEERING Price: $316.99 |
| 25 |
8KC-F119E-00-00 |
PIPE, CROSS, 7 Price: $41.99 |
| 26 |
8KC-F119F-00-00 |
PIPE CROSS 8 Price: $49.99 |
| 27 |
8JP-RA197-00-00 |
BOLT, FLANGE M10X1.25X30 Price: $2.95 |
| 28 |
8KG-RA229-00-00 |
SCREW Price: $1.05 |
| 29 |
8MT-RAB01-00-00 |
CLAMP, 2 Price: $3.30 |
