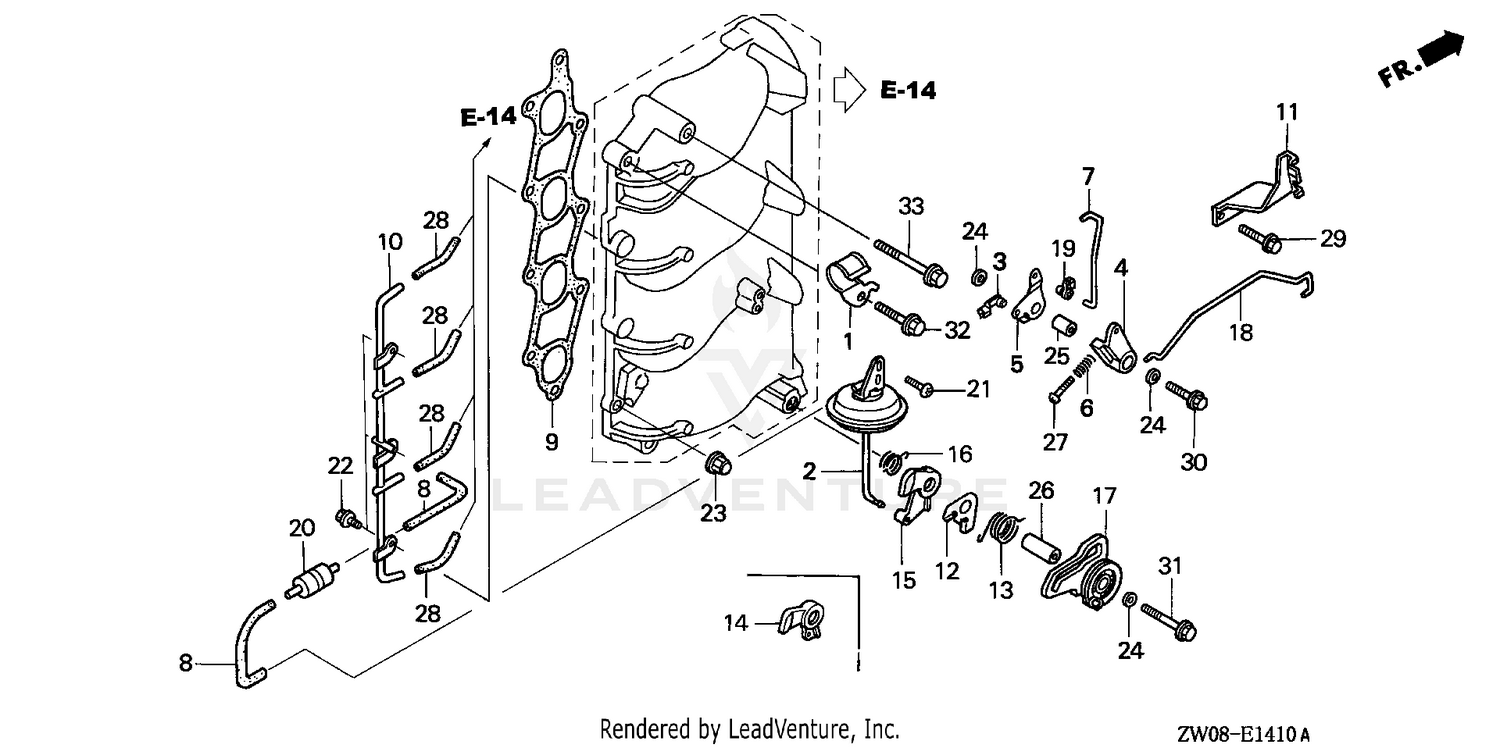

| Ref | Part Number | Description |
|---|
| 1 |
12328-ZW1-000 |
CLAMP, TUBE Price: $17.48 |
| 1 |
21110MCS010 |
CASE COMP., RR. Price: Call Us |
| 2 |
16240-ZW1-013 |
SEE PART DETAILS - PRI; DIAPHRAGM ASSY. Price: $69.12 |
| 2 |
21114MCS000 |
CLAMP B, DRAIN HOSE Price: Call Us |
| 3 |
16263-ZA0-000 |
JOINT, ROD (Honda Code 1307677). Price: $5.18 |
| 3 |
22860MCS000 |
CYLINDER ASSY., CLUTCH SLAVE Price: Call Us |
| 4 |
16574-ZV5-000 |
ARM A, CHOKE Price: $8.56 |
| 4 |
22862MW7650 |
GASKET, SLAVE CYLINDER Price: Call Us |
| 5 |
16575-ZW1-000 |
ARM B, CHOKE Price: $8.02 |
| 5 |
22863MJ8003 |
PISTON, SLAVE CYLINDER Price: Call Us |
| 6 |
16659-ZV5-000 |
SPRING, CHOKE ARM ADJUSTING Price: $1.90 |
| 6 |
22864MT7016 |
SPRING, SLAVE CYLINDER Price: Call Us |
| 7 |
16674-ZW1-000 |
ROD, CHOKE Price: $4.68 |
| 7 |
22865MJ8003 |
CUP, SLAVE CYLINDER Price: Call Us |
| 8 |
16881-ZW1-L00 |
TUBE, FUEL (D) Price: $2.74 |
| 8 |
23751MCS000 |
HOLDER, FINAL SHAFT BEARING Price: Call Us |
| 9 |
17151-ZW1-000 |
GASKET, IN. MANIFOLD Price: $18.14 |
| 9 |
37700MCS003 |
SENSOR ASSY., SPEED Price: Call Us |
| 10 |
17881-ZW1-010 |
PIPE, INSTALL Price: $29.68 |
| 10 |
90463MCS000 |
WASHER, SEALING, 8.5MM Price: Call Us |
| 11 |
17926-ZW1-010 |
SEE PART DETAILS - PRI; STAY, THROTTLE CABLE Price: $19.22 |
| 11 |
91106KM1013 |
BEARING, NEEDLE, 14X22X16 Price: Call Us |
| 12 |
17927-ZV5-000 |
PLATE, ASSIST Price: $9.40 |
| 12 |
91201MV1003 |
OIL SEAL, 28X45X7 Price: Call Us |
| 13 |
17928-ZW1-000 |
SPRING, ASSIST Price: $3.78 |
| 13 |
91203KK3830 |
OIL SEAL, 14X22X5 Price: Call Us |
| 14 |
91204MB0013 |
OIL SEAL, 8X25X8 (ARAI) Price: Call Us |
| 15 |
17937-ZW1-000 |
CAM, THROTTLE OPENER Price: $10.86 |
| 15 |
91209MB0003 |
OIL SEAL, 8X18X5 Price: Call Us |
| 16 |
17938-ZV5-000 |
SPRING, OPENER CAM RETURN Price: $3.84 |
| 16 |
91302MAL601 |
O-RING, 18.1X3.6 Price: Call Us |
| 17 |
17946-ZW1-000 |
CAM, THROTTLE Price: $19.14 |
| 17 |
91351881000 |
O-RING, 66MM Price: Call Us |
| 18 |
17955-ZW1-000 |
ROD, CHOKE KNOB Price: $8.20 |
| 18 |
9430108100 |
DOWEL PIN, 8X10 Price: Call Us |
| 19 |
17957-ZV4-000 |
BUSH, LINKAGE Price: $2.60 |
| 19 |
9430310160 |
DOWEL PIN, 10X16 Price: Call Us |
| 20 |
36135-ZW1-L01 |
VALVE, DASHPOT CHECK Price: $31.00 |
| 20 |
957010601400 |
BOLT, FLANGE, 6X14 Price: Call Us |
| 21 |
90011-ZV5-003 |
BOLT, TORX (6X14) Price: $1.98 |
| 21 |
957010602000 |
BOLT, FLANGE, 6X20 Price: Call Us |
| 22 |
90019-ZV1-010 |
SEE PART DETAILS - PRI; BOLT, FLANGE (5X10) Price: $1.86 |
| 22 |
957010802800 |
BOLT, FLANGE, 8X28 Price: Call Us |
| 23 |
90208-438-000 |
NUT, FLANGE CAP (8MM) Price: $4.50 |
| 23 |
957010803200 |
BOLT, FLANGE, 8X32 Price: Call Us |
| 24 |
957010804000 |
BOLT, FLANGE, 8X40 Price: Call Us |
| 25 |
91503-ZV5-000 |
COLLAR, DISTANCE (6.5X10.5X16) Price: $7.04 |
| 25 |
957010807500 |
BOLT, FLANGE, 8X75 Price: Call Us |
| 26 |
91504-ZW1-000 |
COLLAR (6.7X12.5X31.5) Price: $9.34 |
| 26 |
957010808500 |
BOLT, FLANGE, 8X85 Price: Call Us |
| 27 |
90180-ZW4-000 |
SCREW, PAN (4X16) Price: $0.80 |
| 27 |
960010602200 |
BOLT, FLANGE, 6X22 Price: Call Us |
| 28 |
95001-35003-60M |
SEE PART DETAILS - PRI; BULK HOSE, FUEL (3.5X3000) (3.5X120) (Honda Code 4260329). Price: $30.32 |
| 29 |
90017-ZZ5-M01 |
BOLT, FLANGE (6X16) Price: $1.70 |
| 30 |
90002-ZZ5-M01 |
BOLT, FLANGE (6X30) Price: $2.00 |
| 31 |
90020-ZY9-M01 |
BOLT, FLANGE (6X45) This part replaces 90020-ZW5-000. Price: $2.64 |
| 32 |
90054-ZY9-M01 |
BOLT, FLANGE (8X35) Price: $2.36 |
