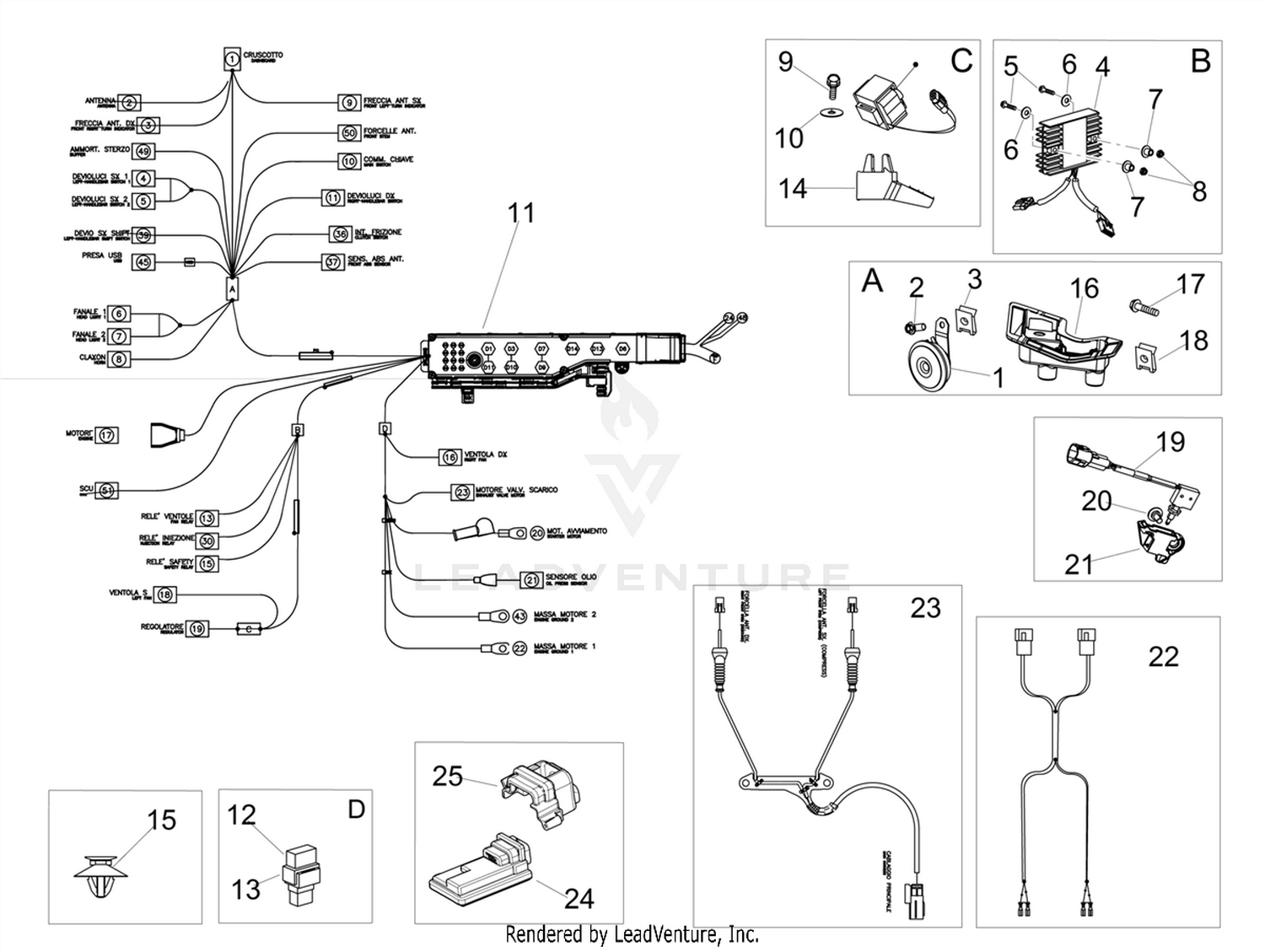

Front electrical system
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 890979 | Horn Price: $17.43 |
| 2 | AP8152277 | Flanged hexagon screw Price: $0.18 |
| 3 | 254485 | Spring plate Price: $0.25 |
| 4 | B043488 | Voltage regulator Price: $233.31 |
| 5 | AP8152128 | Hex socket screw Price: $0.25 |
| 6 | AP8150179 | Washer Price: $0.06 |
| 7 | AP8121075 | T bush Price: $2.70 |
| 8 | AP8152299 | Self-locking nut Price: $0.25 |
| 9 | AP8152279 | Screw w/ flange Price: $0.37 |
| 10 | AP8121991 | Bush Price: $3.85 |
| 11 | 2D000475 | Main wiring harness Price: $826.55 |
| 12 | AP8224462 | Relay Price: $10.34 |
| 13 | AP8220283 | Rubber spacer Price: $0.55 |
| 14 | 858916 | Sensor support Price: $3.98 |
| 15 | 890760 | Instrument support Price: $0.37 |
| 16 | 2B001765 | Horn support Price: $11.84 |
| 17 | AP8150500 | Hex socket screw Price: $1.12 |
| 18 | AP8102375 | Clip Price: $0.50 |
| 19 | 2D000325 | Stop/clutch switch Price: $32.91 |
| 20 | AP8150500 | Hex socket screw Price: $1.12 |
| 22 | 2D000178 | Turn ind.harness Price: $13.66 |
| 23 | 2D000476 | FORK WIRING Price: $91.08 |
| 24 | 2D0004799 | ECU Price: Call Us |
