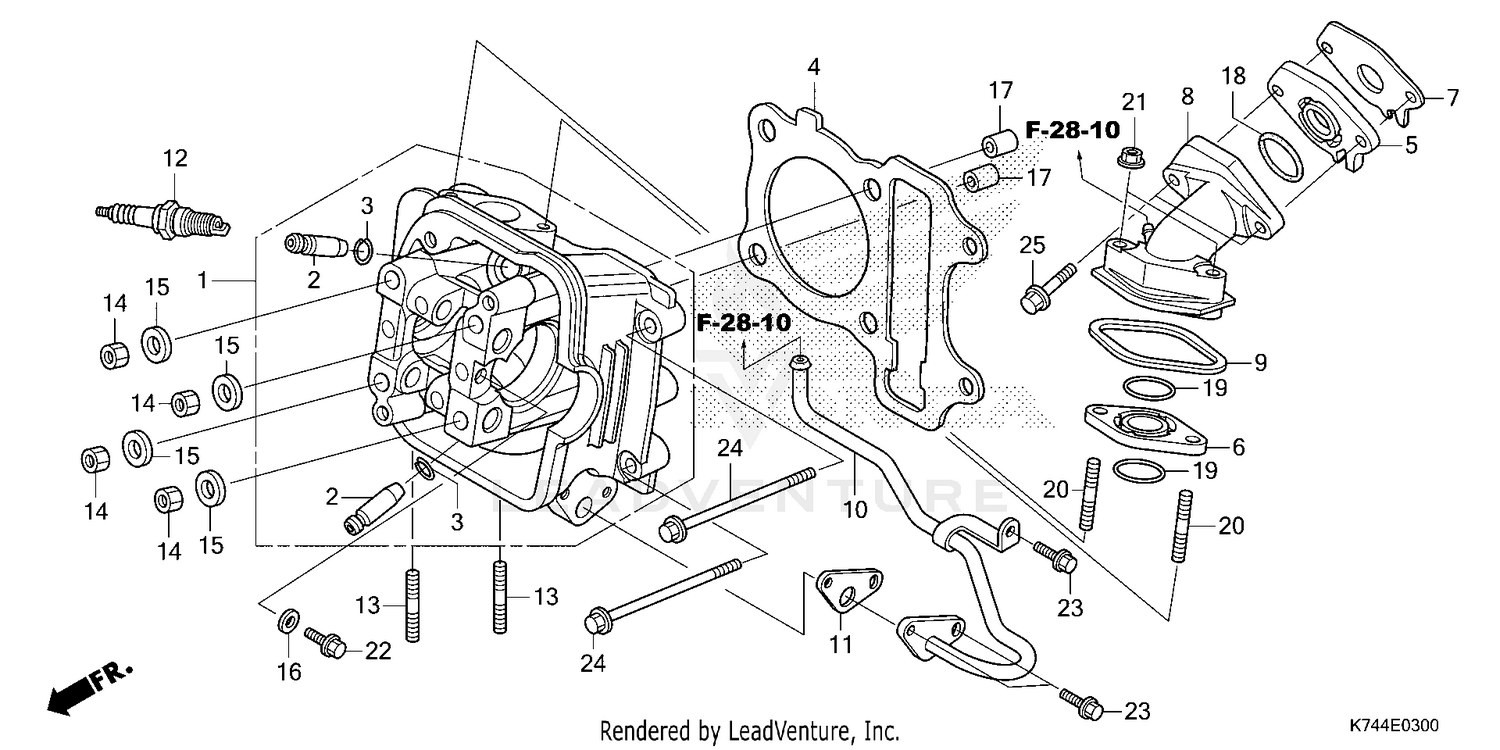

| Ref | Part Number | Description |
|---|
| 1 |
12200-KWP-H00 |
CYLINDER HEAD Price: $147.45 |
| 2 |
12204-KWP-P00 |
GUIDE, VALVE (OS) Price: $1.60 |
| 3 |
12206-KPL-900 |
CLIP, VALVE GUIDE Price: $3.91 |
| 4 |
12251-KWP-D01 |
GSKT (STD/0.25/0.50) Price: $1.91 |
| 5 |
16211-KWP-900 |
INSULATOR A, CARB Price: $0.82 |
| 6 |
16212-KWP-900 |
INSULATOR B, CARB Price: $0.85 |
| 7 |
16229-KRP-602 |
GASKET A, CARBURETOR INSULATOR Price: $0.22 |
| 8 |
17110-K74-N00 |
PIPE, INLET Price: $4.91 |
| 9 |
17113-KWP-900 |
RUB, IN. PIPE SEAL Price: $0.29 |
| 10 |
18640-KWP-D00 |
PIPE, AIR FEED Price: $2.60 |
| 11 |
18645-KVY-900 |
GSKT, AIR FEED PIPE Price: $1.67 |
| 12 |
31917-KWP-D01 |
SPARK PLUG (MR7C-9N) Price: $6.76 |
| 12 |
31917-KWP-H02 |
SPARK PLUG (UR6DE0) (BOSCH) Price: $4.89 |
| 13 |
90004-KGF-910 |
BOLT, STUD (7X17) Price: $2.42 |
| 14 |
90201-GCC-000 |
NUT, HEX. (7MM) Price: $1.07 |
| 15 |
90401-GCC-000 |
WASHER (7.2X16X2.5) Price: $2.45 |
| 16 |
90402-KWP-900 |
WASHER (6MM) Price: $0.20 |
| 17 |
90701-KPL-900 |
PIN (8X14) Price: $0.16 |
| 18 |
91304-KWP-900 |
O-RING (25X2.4) Price: $0.40 |
| 19 |
91308-GFM-900 |
O-RING (25.5X1.9) Price: $6.68 |
| 20 |
92900-06035-0B |
BOLT, STUD (6X35) Price: $2.03 |
| 21 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 22 |
95701-06014-00 |
BOLT, FLANGE (6X14) (Honda Code 2410884) Price: $1.15 |
| 23 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
| 24 |
95701-06100-00 |
BOLT, FLANGE (6X100) Price: $3.17 |
