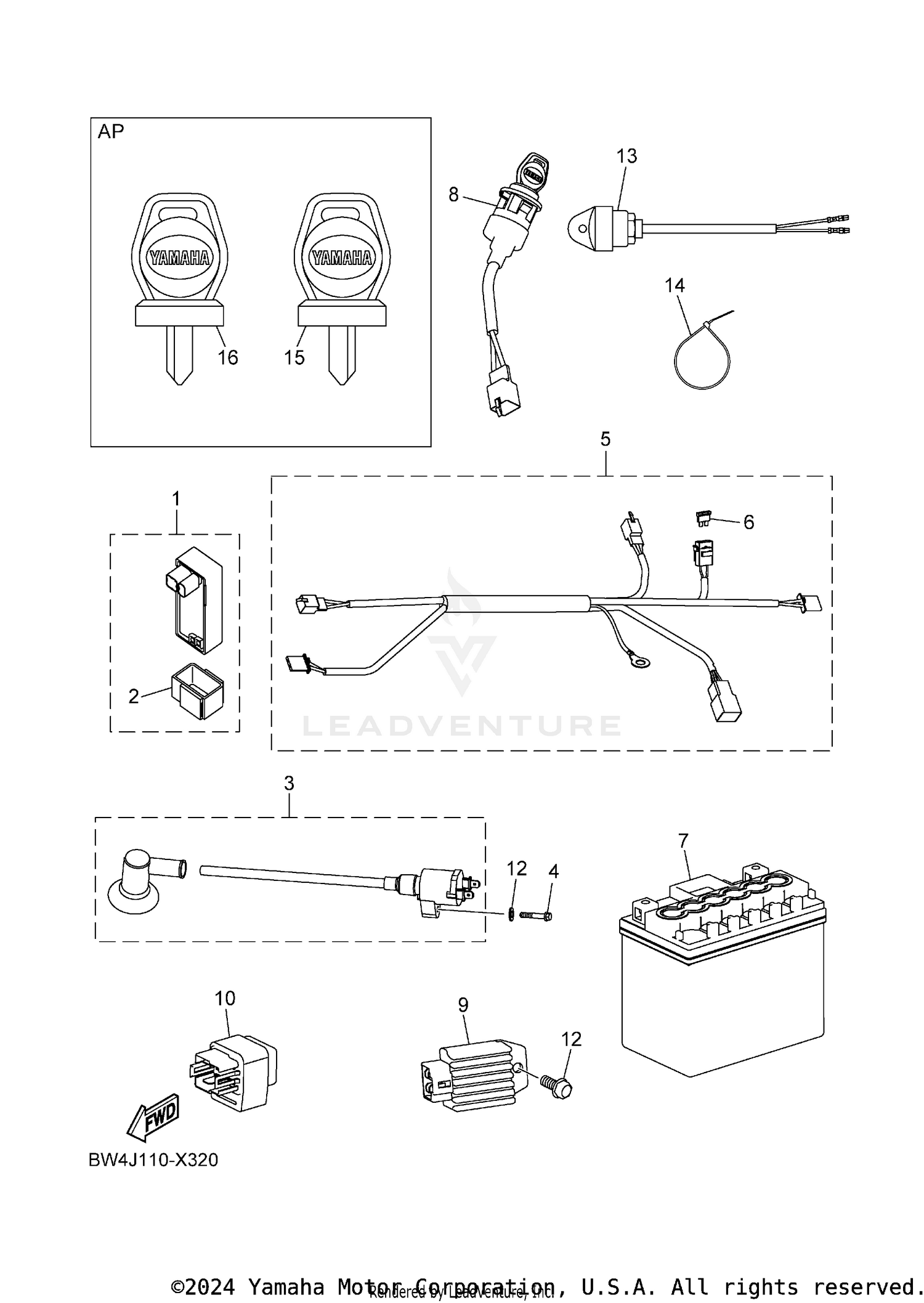

ELECTRICAL 1
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BW4-H5504-20-00 | C.D.I. UNIT ASSY Price: $504.99 |
| 2 | BD3-H5546-10-00 | BAND Price: $19.49 |
| 3 | BW4-H2320-00-00 | IGNITION COIL ASSY Price: $212.99 |
| 4 | BD3-F2241-10-00 | BOLT 1 Price: $4.20 |
| 5 | BW4-H2590-00-00 | WIRE HARNESS ASSY Price: $371.99 |
| 6 | BD3-H2151-00-00 | FUSE Price: $19.49 |
| 7 | YTX-5LBS0-00-00 | YTX5LBS YUASA BATTE This part replaces GTX-5LBS0-00-00. Price: $76.99 |
| 8 | BW4-H2510-10-00 | MAIN SWITCH ASSY Price: $95.99 |
| 9 | BD3-H1960-00-00 | RECTIFIER & REGULATOR ASSY Price: $92.99 |
| 10 | BD3-H1940-00-00 | STARTER RELAY ASSY Price: $77.99 |
| 11 | BD3-E2228-10-00 | BOLT Price: $4.50 |
| 12 | BD3-F3456-10-00 | WASHER Price: $2.90 |
| 13 | BW4-H2550-01-00 | ENGINE STOP SWITCH A Price: $77.99 |
| 14 | BW4-H2544-00-00 | CLAMP Price: $2.90 |
