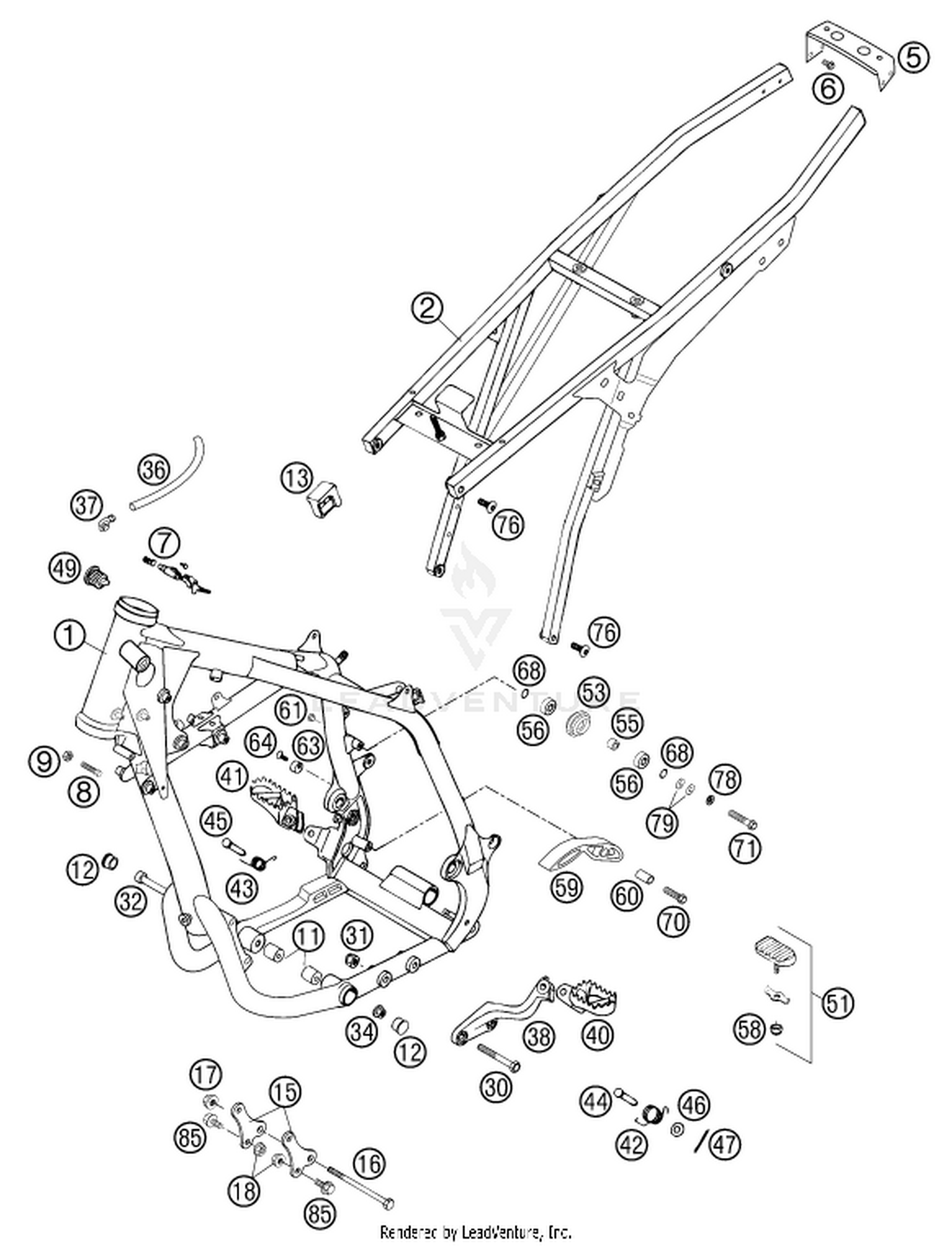

| Ref | Part Number | Description |
|---|
| 2 |
58303102544 |
SUB FRAME CPL.ALU 400/620SC 99 Price: Call Us |
| 5 |
58403002152 |
OVERLAP METAL SHEET S.FRAME'99 Price: Call Us |
| 6 |
0025060106 |
HH collar screw M6x10 TX30 This part replaces 0015060103. Price: Call Us |
| 7 |
71003007000 |
STEERING HEAD LOCK CPL. ZADI Price: Call Us |
| 8 |
59001037000 |
SPECIAL SCREW M8X26 WS=10 Price: Call Us |
| 9 |
0934080003 |
Hexagon nut DIN934 M8 Price: Call Us |
| 11 |
58003012000 |
SPACER ROLLER 10,3X20X22 Price: Call Us |
| 12 |
71001012100 |
PVC CAP D=22MM Price: Call Us |
| 13 |
58307015000 |
TANK SUPPORT '93 Not Available Price: |
| 15 |
58303055000 |
ENGINE SUPPORT AGW '94 Not Available Price: |
| 16 |
0931101103 |
HH SCREW DIN0931-M10X110 Price: Call Us |
| 18 |
54310086200 |
Self locking nut M8 10.9 Price: Call Us |
| 30 |
0931100603 |
HH SCREW DIN0931-M10X60 Not Available Price: |
| 31 |
0985100003 |
SELF LOCKING NUT DIN0985-M10 Price: Call Us |
| 32 |
0912101603 |
AH SCREW DIN0912-M10X160 Price: Call Us |
| 34 |
55530044000 |
Collar nut M10-SW13 ZnNi This part replaces 54630044000. Price: Call Us |
| 36 |
55007016001 |
PVC-HOSE 7X10 PER METER Price: Call Us |
| 37 |
50303089000 |
ANGLE PIECE '97 Price: Call Us |
| 40 |
5830304000090 |
FOOTREST L/S SILVER '99 Price: Call Us |
| 41 |
5460314000090 |
FOOT REST R/S SILVER '98 Not Available Price: |
| 42 |
58303041000 |
FOOTREST SPRING L/S '93 Price: Call Us |
| 43 |
54603041000 |
FOOTREST SPRING L/S R/S Price: Call Us |
| 44 |
58303044000 |
BOLT FOR FOOTREST Price: Call Us |
| 45 |
54803044000 |
PIN FOR FOOT PED 51.5X9.8 MM This part replaces 54603044000. Price: Call Us |
| 47 |
0094032250 |
PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 49 |
42007049000 |
PLASTIC CAP Not Available Price: |
| 51 |
58303045044 |
FOOTREST RUBBER CPL. '94 Price: Call Us |
| 53 |
52303053000 |
CHAIN ROLL D=30MM 125-380 '99 Price: Call Us |
| 55 |
74003021000 |
BUSHING 8.2 X 12 X 6 Price: Call Us |
| 56 |
0625006087 |
Grooved ball bearing 608 2RS C Price: Call Us |
| 58 |
0985060003 |
Self lock. nut DIN985-M6-A2 Price: Call Us |
| 59 |
51103053000 |
CHAIN SLIDING PIECE BELOW '97 Price: Call Us |
| 60 |
51103053051 |
BUSHING 8,2X10X20 Price: Call Us |
| 61 |
54403135000 |
PLASTIC CAP SFL10 Price: Call Us |
| 63 |
58303063000 |
BRAKE LEVER STOP '93 Price: Call Us |
| 64 |
0991060202 |
Flat head screw DIN7991 M6X20 This part replaces 0991060203. Price: Call Us |
| 68 |
36003014000 |
LOCK WASHER 8MM Price: Call Us |
| 70 |
0025080306 |
HH collar screw M8x30 This part replaces 0015080303. Price: Call Us |
| 71 |
0025080406 |
HH COLLAR SCREW M8X40 TX40 This part replaces 0015080403. Price: Call Us |
| 76 |
0019080266S |
COUNTER-SUNK SCREW ISA45 M8X26 This part replaces 54510052100. Price: Call Us |
| 78 |
0797080003 |
TOOTHLOCK WASHER DIN6797-J 8,4 Price: Call Us |
