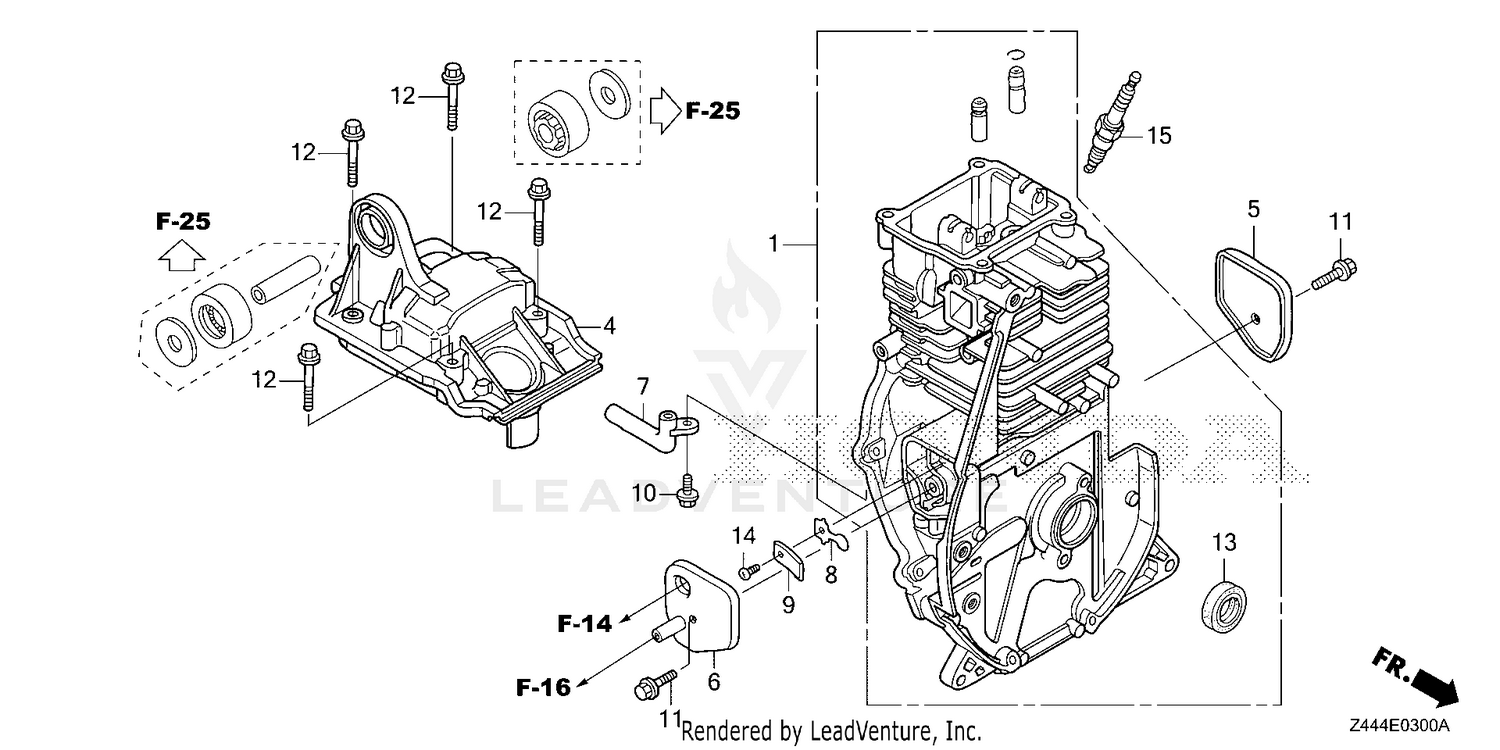

CYLINDER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12000-ZDJ-405 | CYLINDER ASSY. Price: $71.61 |
| 4 | 12311-Z0D-D00 | COVER, HEAD Price: $68.34 |
| 5 | 12355-ZDJ-D00 | COVER A, BREATHER Price: $3.80 |
| 6 | 12365-Z0D-D00 | COVER B, BREATHER Price: $12.46 |
| 7 | 15171-Z0D-V00 | PIPE, BREATHER Price: $8.90 |
| 8 | 15571-ZM7-003 | VALVE, OIL OUTLET Price: $3.80 |
| 9 | 15572-ZM7-000 | PLATE, STOPPER Price: $2.04 |
| 10 | 90008-ZM7-000 | BOLT (4X10) Price: $2.42 |
| 11 | 90014-952-000 | BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 12 | 90015-883-000 | BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314. Price: $3.62 |
| 13 | 91202-ZE6-013 | SEE PART DETAILS - PRI; OIL SEAL (22X35X6) (Honda Code 7387756). Price: $10.04 |
| 14 | 93500-03005-0A | SEE PART DETAILS - PRI; SCREW, PAN (3X5) Price: $1.04 |
