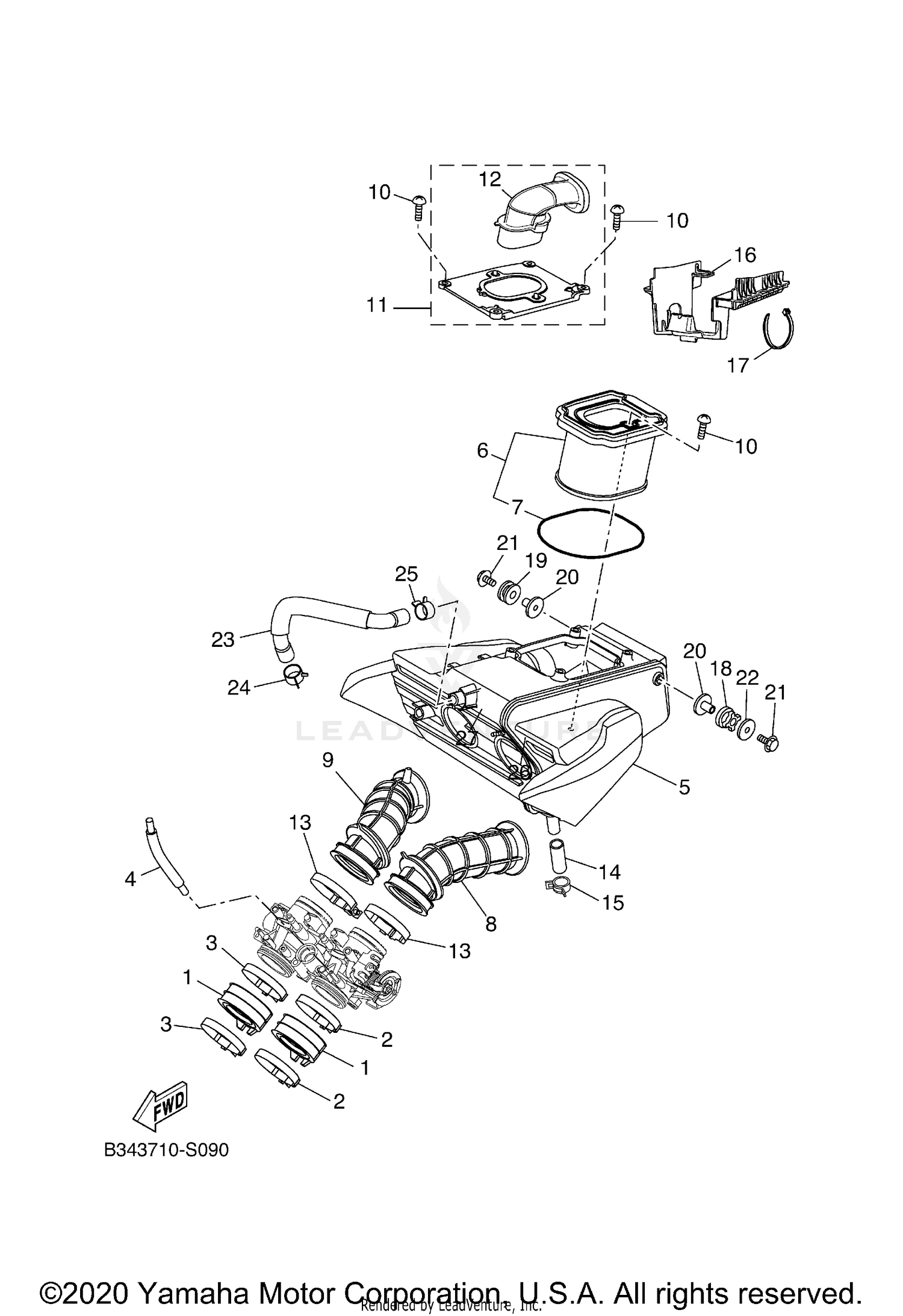

INTAKE
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WS-13635-00-00 | JOINT, INTAKE 1 Price: $30.99 |
| 2 | 90450-56011-00 | HOSE CLAMP ASSY Price: $15.49 |
| 3 | 90450-56012-00 | HOSE CLAMP ASSY Price: $36.99 |
| 4 | 1WS-13542-00-00 | HOSE, VACUUM SENSING 1 Price: $4.90 |
| 5 | 1WS-14401-00-00 | AIR CLEANER CASE ASSY Price: $296.99 |
| 6 | 1WS-14450-00-00 | ELEMENT ASSY, AIR CLEANER Price: $43.99 |
| 7 | 1WS-14452-00-00 | SEAL Price: $8.49 |
| 8 | 1WS-14469-01-00 | FUNNEL, AIR Price: $28.99 |
| 9 | 1WS-1446C-01-00 | FUNNEL 2 Price: $28.99 |
| 10 | 90160-05013-00 | SCREW, ROUND TAPPING Price: $9.49 |
| 11 | 1WS-14430-11-00 | DUCT ASSY Price: $37.99 |
| 12 | 1WS-14437-11-00 | DUCT Price: $41.99 |
| 13 | 90450-56011-00 | HOSE CLAMP ASSY Price: $15.49 |
| 14 | 1WS-1443E-00-00 | PIPE, DRAIN Price: $4.65 |
| 15 | 90467-13133-00 | CLIP This part replaces 90467-13083-00. Price: $9.49 |
| 16 | B34-E4476-00-00 | SEAL Price: $32.99 |
| 17 | 90464-16061-00 | CLAMP Price: $9.49 |
| 18 | 90480-15001-00 | GROMMET Price: $9.49 |
| 19 | 90480-15014-00 | GROMMET Price: $4.60 |
| 20 | 90387-06300-00 | COLLAR Price: $8.49 |
| 21 | 90111-06156-00 | BOLT, HEX. SOCKET BUTTON Price: $1.85 |
| 22 | 90201-064K6-00 | WASHER, PLATE Price: $10.49 |
| 23 | 1WS-11166-00-00 | PIPE, BREATHER 1 Price: $25.99 |
| 24 | 90467-17128-00 | CLIP Price: $9.49 |
