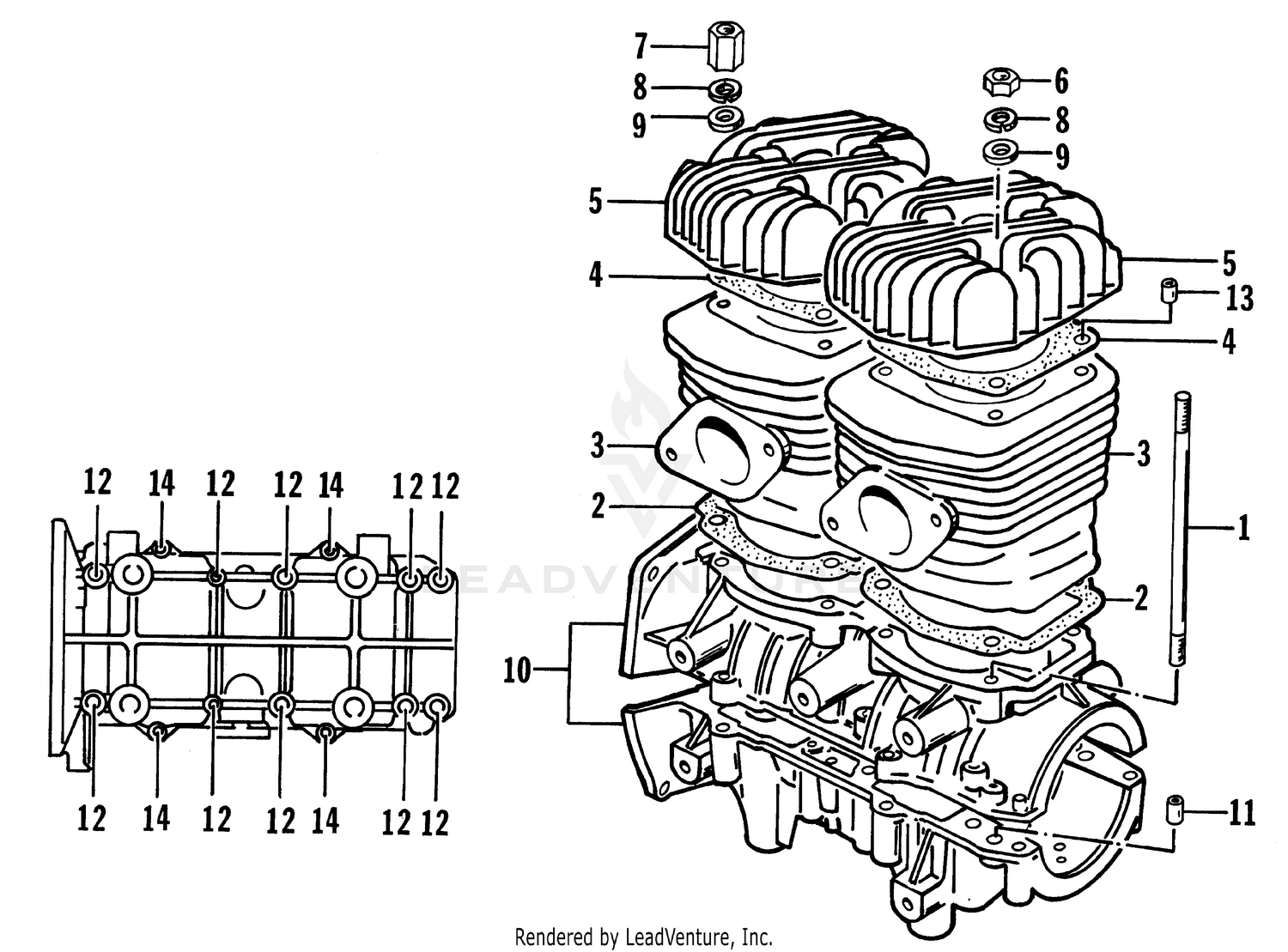

CRANKCASE AND CYLINDER [77018]
![CRANKCASE AND CYLINDER [77018]](https://cdn.datamanager.arinet.com/image/ARCT/734ae9fb-db94-4b8f-b8e1-b4fb3f99fd6a/Max)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3007-686 | Bolt, Stud Price: $18.67 |
| 2 | 3005-002 | Gasket, Cylinder Price: $5.95 |
| 3 | 3005-453 | Cylinder Assembly Price: $799.95 |
| 4 | 3005-449 | Gasket, Head Price: $9.95 |
| 5 | 3005-452 | Head, Cylinder Price: $272.95 |
| 6 | 3007-391 | Nut Price: $3.13 |
| 7 | 3004-997 | Nut Price: $2.79 |
| 8 | 3007-424 | Lock Washer Price: $4.26 |
| 9 | 3007-410 | Washer Price: $3.02 |
| 11 | 3002-012 | Pin, Case Price: $3.13 |
| 12 | 3004-881 | Bolt Price: $7.81 |
| 13 | 3004-975 | Pin, Dowel Price: $2.57 |
