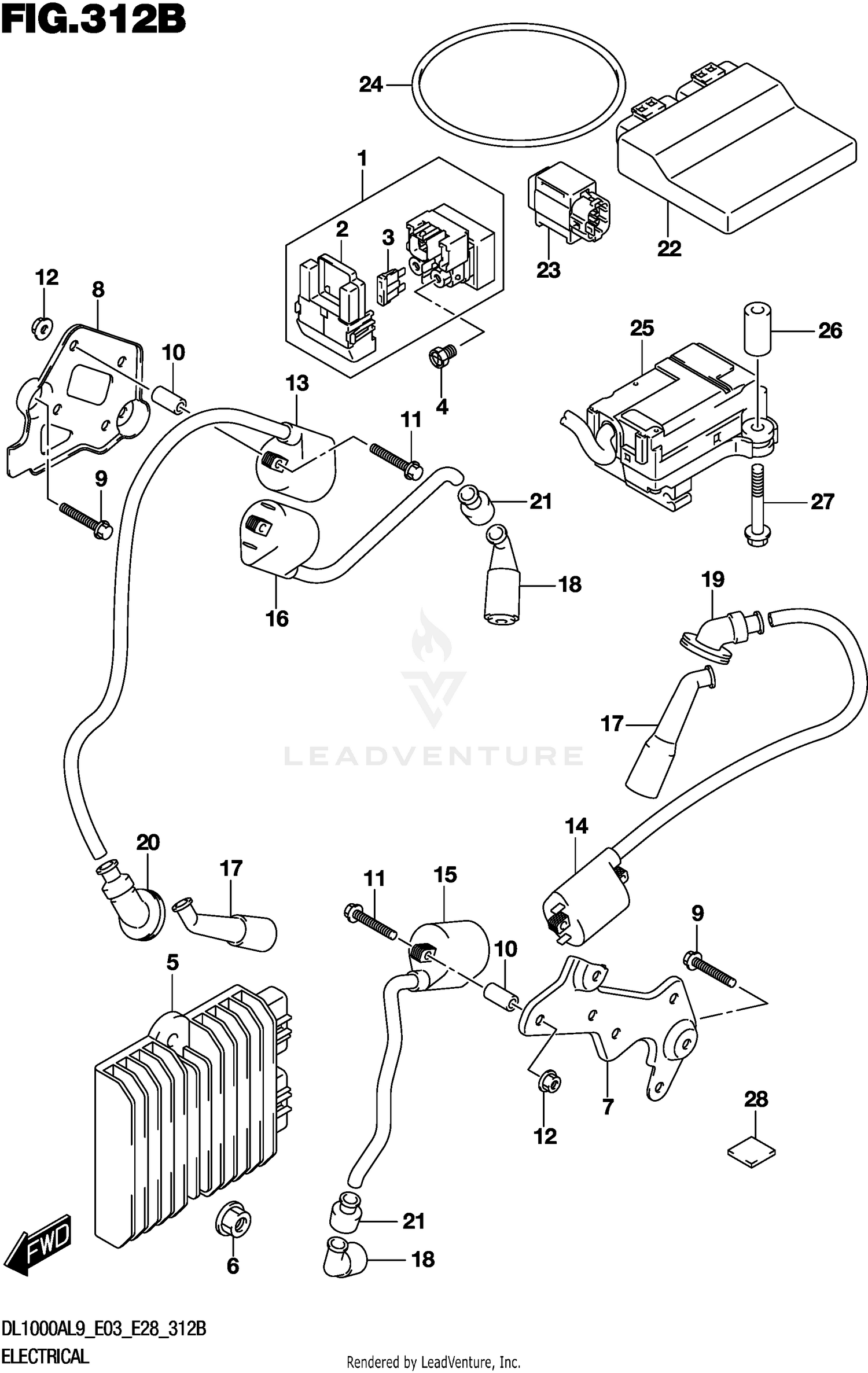

| Ref | Part Number | Description |
|---|
| 1 |
31800-06G02 |
RELAY ASSY, STARTING MOTOR This part replaces 31800-06G00. Price: $83.16 |
| 4 |
09128-06013 |
SCREW (6X8) Price: $1.50 |
| 5 |
32800-31J10 |
RECTIFIER ASSY This part replaces 32800-31J00. Price: $159.58 |
| 6 |
08316-1006A |
NUT (6X12) Price: $2.64 |
| 7 |
33414-31J00 |
BRACKET, IGNITION COIL Price: $15.24 |
| 8 |
33424-31J00 |
BRACKET, IGNITION COIL Price: $13.88 |
| 9 |
01550-0620A |
BOLT (6X20) Price: $2.37 |
| 10 |
09180-06195 |
SPACER (6.4X10X18) Price: $4.54 |
| 11 |
09103-06231 |
BOLT (6X35) Price: $3.41 |
| 12 |
09159-06096 |
NUT (M6) Price: $3.31 |
| 13 |
33410-06G01 |
COIL ASSY,IGNITION Price: $126.10 |
| 14 |
33410-17G01 |
COIL ASSY, IGNITION Price: $92.65 |
| 15 |
33410-20H01 |
COIL ASSY,IGNITION Price: $99.35 |
| 16 |
33410-26G01 |
COIL ASSY,IGNITION Price: $129.31 |
| 17 |
33510-31G00 |
CAP ASSY,SPARK PLUG Price: $49.67 |
| 18 |
33510-31G10 |
CAP ASSY,SPARK PLUG Price: $40.70 |
| 19 |
33542-06G00 |
SEAL,HT CORD RR Price: $8.78 |
| 20 |
33542-06G10 |
SEAL,HT CORD FR Price: $8.95 |
| 21 |
33542-38B00 |
SEAL, HIGH TENSION Price: $5.36 |
| 22 |
32920-31J12 |
CONTROL UNIT, FI Price: $1,755.96 |
| 23 |
33960-06G10 |
SENSOR ASSY, FUEL CUT Price: $111.08 |
| 24 |
09280-85001 |
O-RING (D:3.5,ID:85) Price: $3.59 |
| 25 |
33970-47H03 |
ACTUATOR ASSY This part replaces 33970-47H01. Price: $452.23 |
| 26 |
09180-06345 |
SPACER (6.2X14.5X26) Price: $10.80 |
| 27 |
09116-06183 |
BOLT (6X55) Price: $2.53 |
