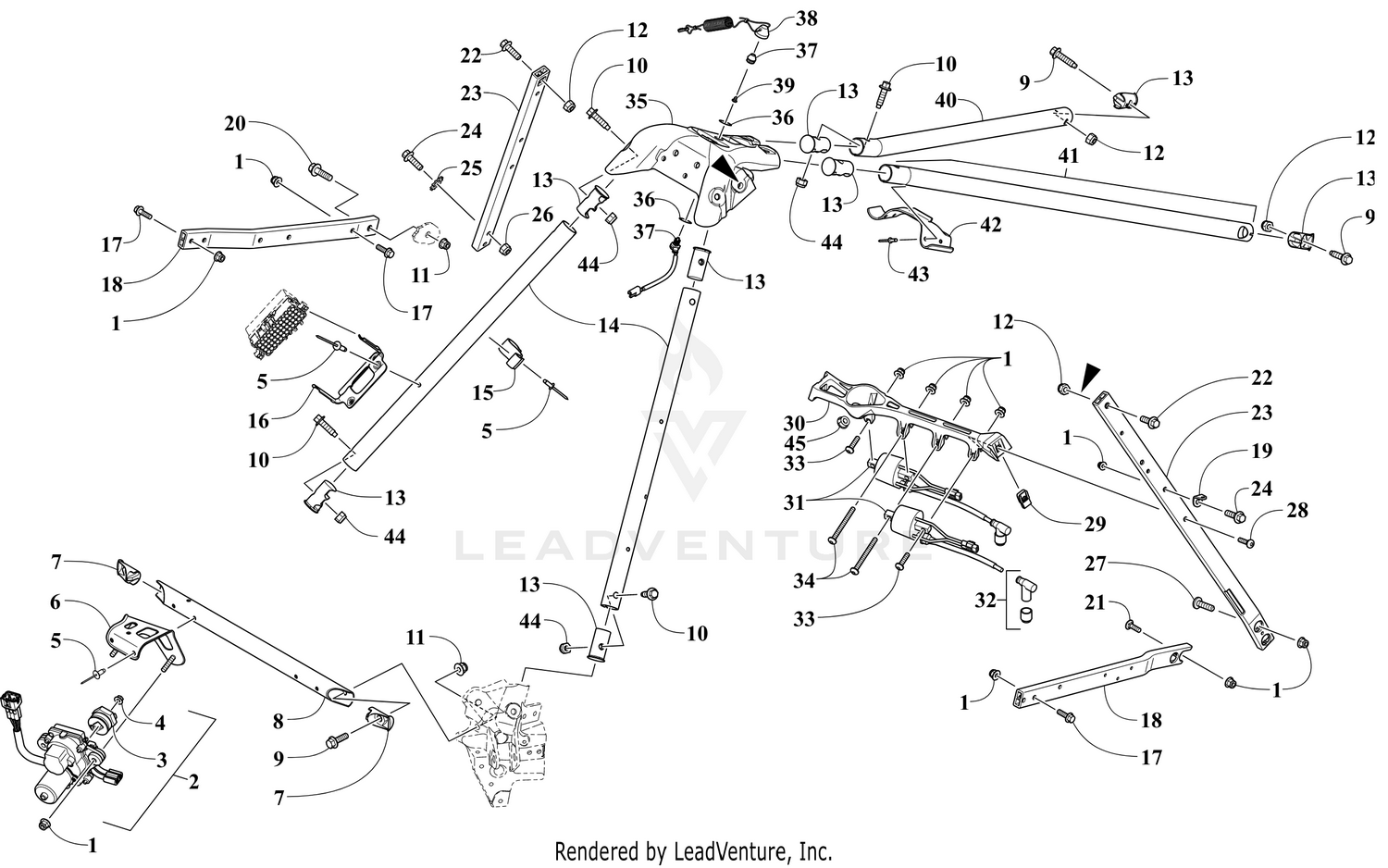

STEERING SUPPORT ASSEMBLY [102837]

Parts (41)

Ref	Part Number	Description
1	8427-602	Nut, Hex Price: $0.23
3	0902-019	Pulley, Controller Price: $19.95
4	8424-501	Nut Price: $3.39
5	8060-686	Rivet - Zinc Price: $0.46
6	4706-845	Bracket, Mounting - Servomotor Price: $135.95
7	1607-002	Insert Price: $2.05
8	1707-582	Support, Shock Mount Bracket -Black Price: $22.99
9	1623-982	Screw, Cap Price: $1.32
10	1623-836	Screw, Cap Price: $3.02
11	8427-802	Nut, Lock Price: $0.58
12	8422-802	Nut, Lock Price: $0.46
13	1607-680	Insert Price: $3.88
14	2707-497	Spar, Front - Black Price: $26.95
15	1623-938	Clamp, Routing Price: $2.91
16	0645-653	Bracket, Mounting - Fuse Block Price: $22.99
17	8408-630	Screw, Cap Price: $1.08
18	1607-212	Support, Chassis - Right Price: $78.95
18	1607-583	Support, Chassis - Left Price: $74.95
19	2612-707	Tab, Spring Price: $3.21
20	8408-885	Screw, Cap Price: $3.02
21	1623-917	Bolt, Carriage Price: $1.08
22	8408-820	Screw, Cap Price: $0.71
23	0607-252	Support, Side - Rear - Right Price: $83.95
23	1607-581	Support, Side - Rear - Left Price: $48.95
24	8408-625	Screw, Cap Price: $0.59
25	8053-212	Washer, Lock Price: $0.23
26	8422-602	Nut Price: $0.48
27	8476-616	Screw, Machine Price: $0.46
28	8476-626	Screw, Machine Price: $0.29
29	0423-577	Clip, U-Nut Price: $0.46
30	0708-626	Bracket, Mounting - Coil Price: $41.95
32	3006-367	Cap, Spark Plug Price: $29.95
33	8468-640	Screw, Machine Price: $0.71
34	8468-650	SCREW,MACH-TSPNH M6X1.0X50 CL8.8 BLK Price: $1.92
35	2707-739	Support, Steering - Black Price: $195.95
36	0123-985	Washer, Internal Tooth Lock Price: $3.38
39	0623-338	Screw, Self-Tapping Price: $0.35
40	2707-498	Spar, Rear - Right Price: $42.95
42	6606-391	Bracket, Hold-Down - Seat-Base Price: $16.92
43	8060-482	Rivet Price: $0.48
44	8422-002	Nut, Lock Price: $1.08
