| Ref | Part Number | Description |
|---|
| 1 |
16011-ZY3-A01 |
SEE PART DETAILS - PRI; VALVE SET, FLOAT Price: $58.62 |
| 1 |
43312MEW920 |
PIPE B, RR. BRAKE Price: Call Us |
| 2 |
16013-ZW5-000 |
FLOAT SET Price: $67.48 |
| 2 |
43313MEW920 |
PIPE C, RR. BRAKE Price: Call Us |
| 3 |
16015-ZW5-000 |
BODY, CHAMBER Price: $124.02 |
| 3 |
43315MEW921 |
HOSE COMP. C, RR. BRAKE Price: Call Us |
| 4 |
16020-ZW5-000 |
COVER Price: Call Us |
| 4 |
43320MEW920 |
SUB PIPE A, BRAKE Price: Call Us |
| 5 |
16024-ZY3-000 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN Price: $16.68 |
| 5 |
43321MEW921 |
SUB HOSE COMP. A, BRAKE Price: Call Us |
| 6 |
16061-ZW5-000 |
COVER, WATER JACKET Price: $114.18 |
| 6 |
43322MEW921 |
SUB HOSE COMP. B, BRAKE Price: Call Us |
| 7 |
16075-ZW5-000 |
O-RING Price: $6.44 |
| 7 |
46400MEW921 |
VALVE ASSY., PROPORTIONING CONTROL Price: Call Us |
| 8 |
16076-ZW5-000 |
O-RING Price: $4.80 |
| 8 |
90006PR0000 |
BOLT, FLANGE, 6X42 Price: Call Us |
| 9 |
16081-ZW5-010 |
SEE PART DETAILS - PRI; SCREW-WASHER This part replaces 16081-ZW5-000. Price: $5.72 |
| 9 |
90021MZ1000 |
BOLT, SPECIAL, 6X18 Price: Call Us |
| 10 |
16082-ZW5-000 |
SCREW, PAN (4X8) Price: $3.38 |
| 10 |
90101MEW920 |
BOLT, FLANGE, 6X21 (SH) Price: Call Us |
| 11 |
16086-ZW5-000 |
COLLAR Price: $4.58 |
| 11 |
90145MS9612 |
BOLT, OIL, 10X22 Price: Call Us |
| 12 |
16087-ZW5-000 |
WASHER, PLAIN Price: $5.06 |
| 12 |
90545300000 |
WASHER, OIL BOLT Price: Call Us |
| 13 |
06167-ZW5-345 |

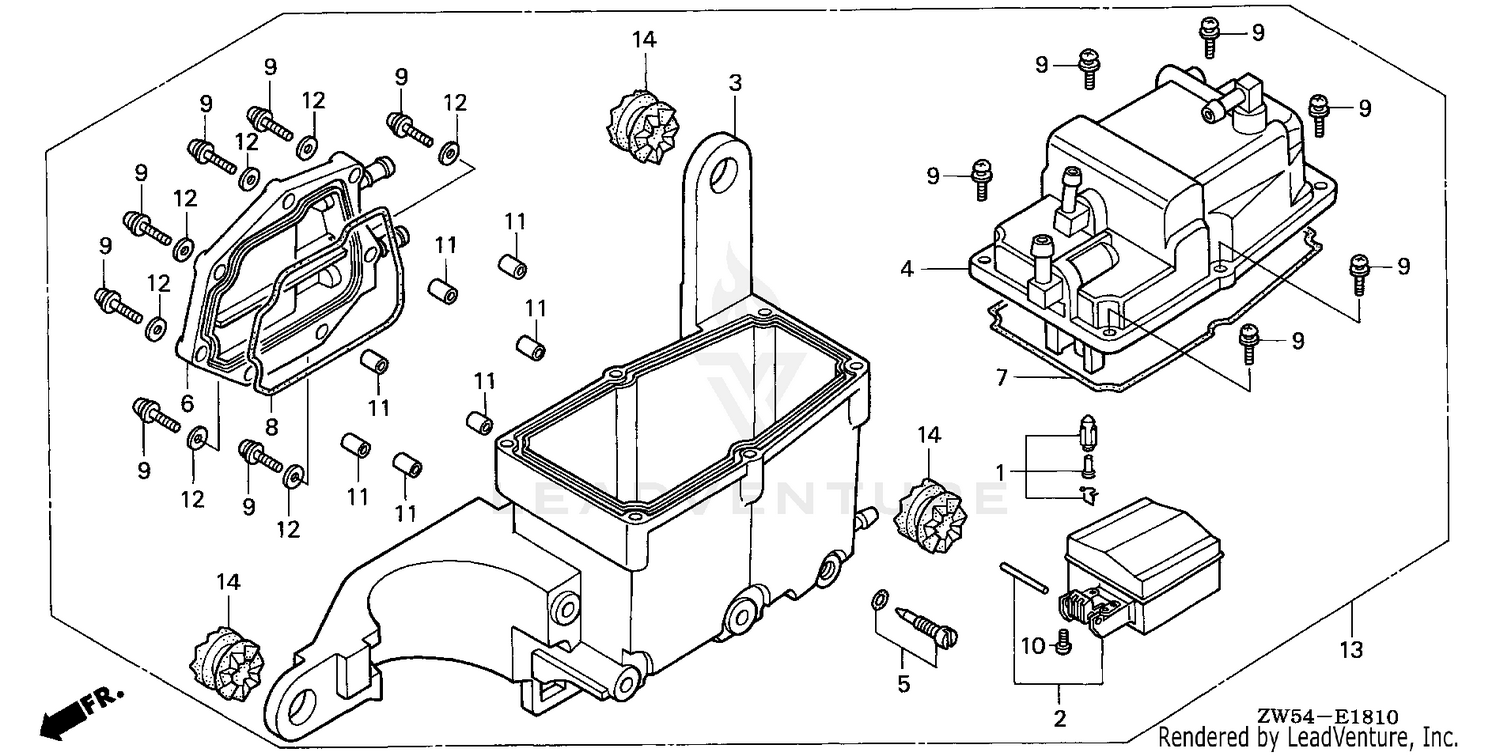

VAPOR SEPARATOR K This part replaces 06167-ZW5-305. Price: $1,335.04 |
| 13 |
90661MEW921 |
CLAMP, BRAKE PIPE (7.0X2) Price: Call Us |
| 14 |
960010601807 |
BOLT, FLANGE, 6X18 Price: Call Us |
