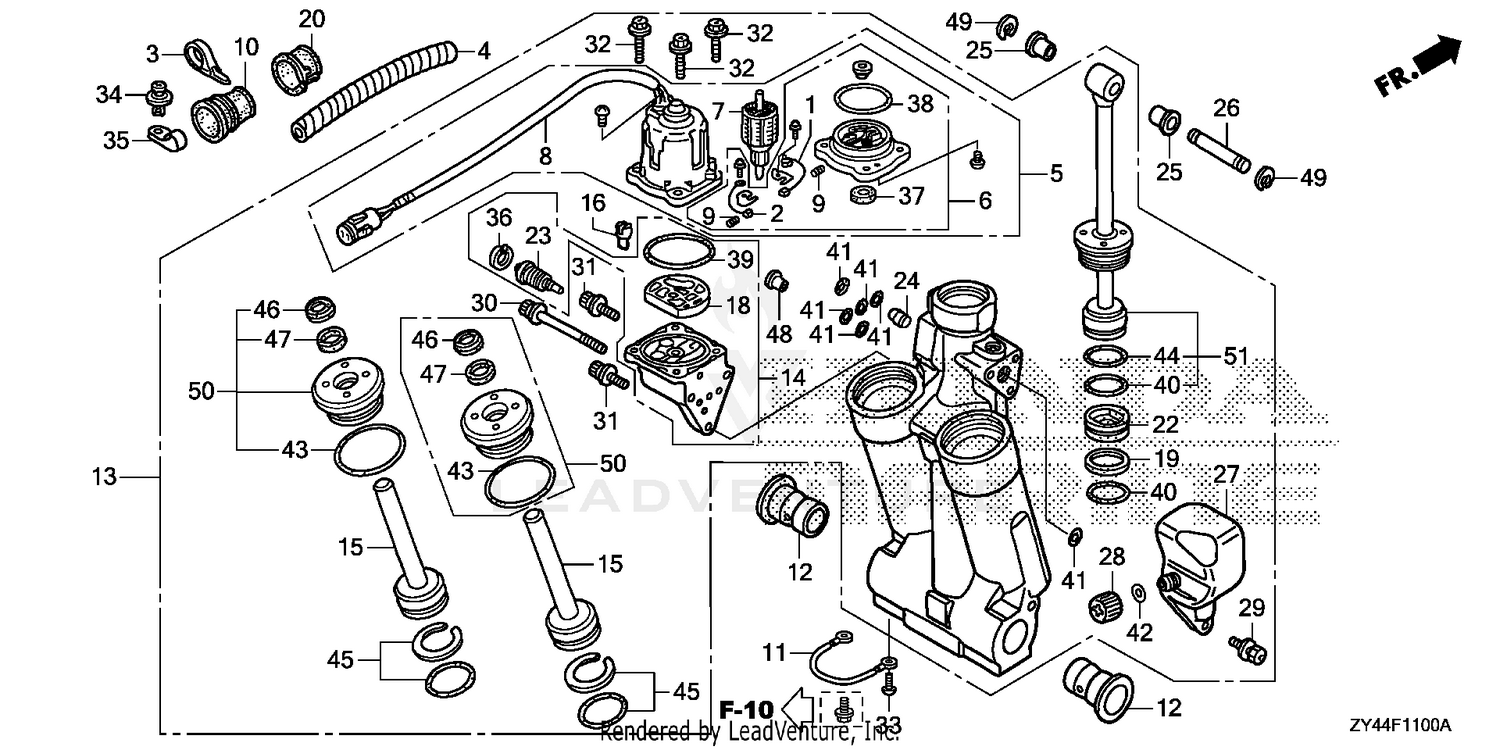

| Ref | Part Number | Description |
|---|
| 1 |
30280-ZX2-013 |
BREAKER ASSY. Price: $43.10 |
| 2 |
31106-ZY3-003 |
BRUSH ASSY. Price: $45.32 |
| 3 |
35701-MG9-950 |
BAND (BLACK 3.5X140) Price: $2.50 |
| 4 |
36104-ZW1-003 |
TUBE, SPIRAL (12X14.6) Price: $10.84 |
| 5 |
36120-ZY3-023 |
SEE PART DETAILS - PRI; MOTOR ASSY., POWER TILT Price: $756.20 |
| 6 |
36122-ZX2-023 |
BRACKET ASSY. Price: $463.04 |
| 7 |
36123-ZY3-013 |
ARMATURE Price: $205.10 |
| 8 |
36129-ZY3-013 |
YOKE ASSY. Price: $418.04 |
| 9 |
36136-ZV5-821 |
SPRING, MOTOR Price: $9.88 |
| 10 |
40107-ZW1-700 |
GROMMET, CASE (LOWER) (C) Price: $20.54 |
| 11 |
40219-ZY3-023 |
WIRE, LEAD (1.5X116MM) Price: $12.40 |
| 12 |
50214-ZV5-003 |
BUSH, SWIVEL CASE Price: $10.48 |
| 13 |
56000-ZY3-083 |
TRIM-TILT, POWER Price: $3,024.81 |
| 14 |
56100-ZY3-023 |
PUMP ASSY. Price: $1,460.15 |
| 15 |
56110-ZW1-701 |
ROD, PISTON (B) Price: $157.48 |
| 16 |
56113-ZW1-701 |
JOINT, DRIVE Price: $22.48 |
| 18 |
56116-ZW1-701 |
FILTER (B) Price: $19.94 |
| 19 |
56117-ZV5-821 |
RING, BACK-UP Price: $11.60 |
| 20 |
56118-ZV5-820 |
BUSH, MOTOR CODE Price: $11.72 |
| 22 |
56130-ZW1-702 |
PISTON, FREE Price: $88.14 |
| 23 |
56170-ZY3-023 |
VALVE, MANUAL This part replaces 56170-ZY3-013. Price: $140.88 |
| 24 |
56180-ZW1-701 |
VALVE, RESERVOIR Price: $110.44 |
| 25 |
56513-ZV5-000 |
BUSH, CYLINDER (LOWER) Price: $5.16 |
| 26 |
56532-ZX2-C00 |
SEE PART DETAILS - PRI; PIN, CYLINDER (UPPER) Price: $31.66 |
| 27 |
56851-ZW1-703 |
SEE PART DETAILS - PRI; TANK, OIL Price: $25.34 |
| 28 |
56860-ZW1-701 |
CAP, OIL TANK Price: $18.44 |
| 29 |
90113-ZW1-702 |
SEE PART DETAILS - PRI; BOLT, RECESSED Price: $4.26 |
| 30 |
90114-ZW1-702 |
SEE PART DETAILS - PRI; BOLT A, SOCKET Price: $19.18 |
| 31 |
90115-ZW1-702 |
SEE PART DETAILS - PRI; BOLT B, SOCKET Price: $14.82 |
| 32 |
90116-ZW1-702 |
BOLT, HEX. Price: $8.08 |
| 33 |
90119-ZV5-000 |
SCREW, PAN (6X8) Price: $2.26 |
| 34 |
90127-ZV5-003 |
SCREW, RIVET (5X10) Price: $2.66 |
| 35 |
90602-SB0-003 |
CLIP (10.7MM) Price: $5.54 |
| 36 |
90652-ZW1-702 |
SEE PART DETAILS - PRI; CIRCLIP (INNER) Price: $8.90 |
| 37 |
91203-ZV5-821 |
OIL SEAL Price: $42.16 |
| 38 |
91207-ZW1-013 |
SEE PART DETAILS - PRI; O-RING (2.0X70.5) Price: $7.82 |
| 39 |
91302-ZV5-821 |
O-RING (1.8X69.6) Price: $6.98 |
| 40 |
91316-ZV5-821 |
O-RING (3.5X38.7) Price: $4.58 |
| 41 |
91352-ZX2-003 |
O-RING (1.68X7.25) This part replaces 91352-ZW1-702. Price: $2.92 |
| 42 |
91353-ZW1-703 |
SEE PART DETAILS - PRI; O-RING (1.9X11) Price: $8.08 |
| 43 |
91354-ZW1-701 |
O-RING (3.5X35.7) Price: $11.30 |
| 44 |
91355-ZW1-701 |
O-RING (3.5X41.7) Price: $17.82 |
| 45 |
91357-ZW1-701 |
O-RING SET (3.5X31.7) Price: $16.04 |
| 46 |
91358-ZW1-701 |
SEAL, WATER Price: $11.32 |
| 47 |
91361-ZW1-701 |
GASKET Price: $9.04 |
| 48 |
91557-ZW1-701 |
COLLAR, ORIFICE Price: $14.04 |
| 49 |
94540-15029 |
E-RING (15MM) Price: $10.98 |
| 50 |
56115-ZY9-023 |
SEE PART DETAILS - PRI; GUIDE, ROD Price: $132.76 |
