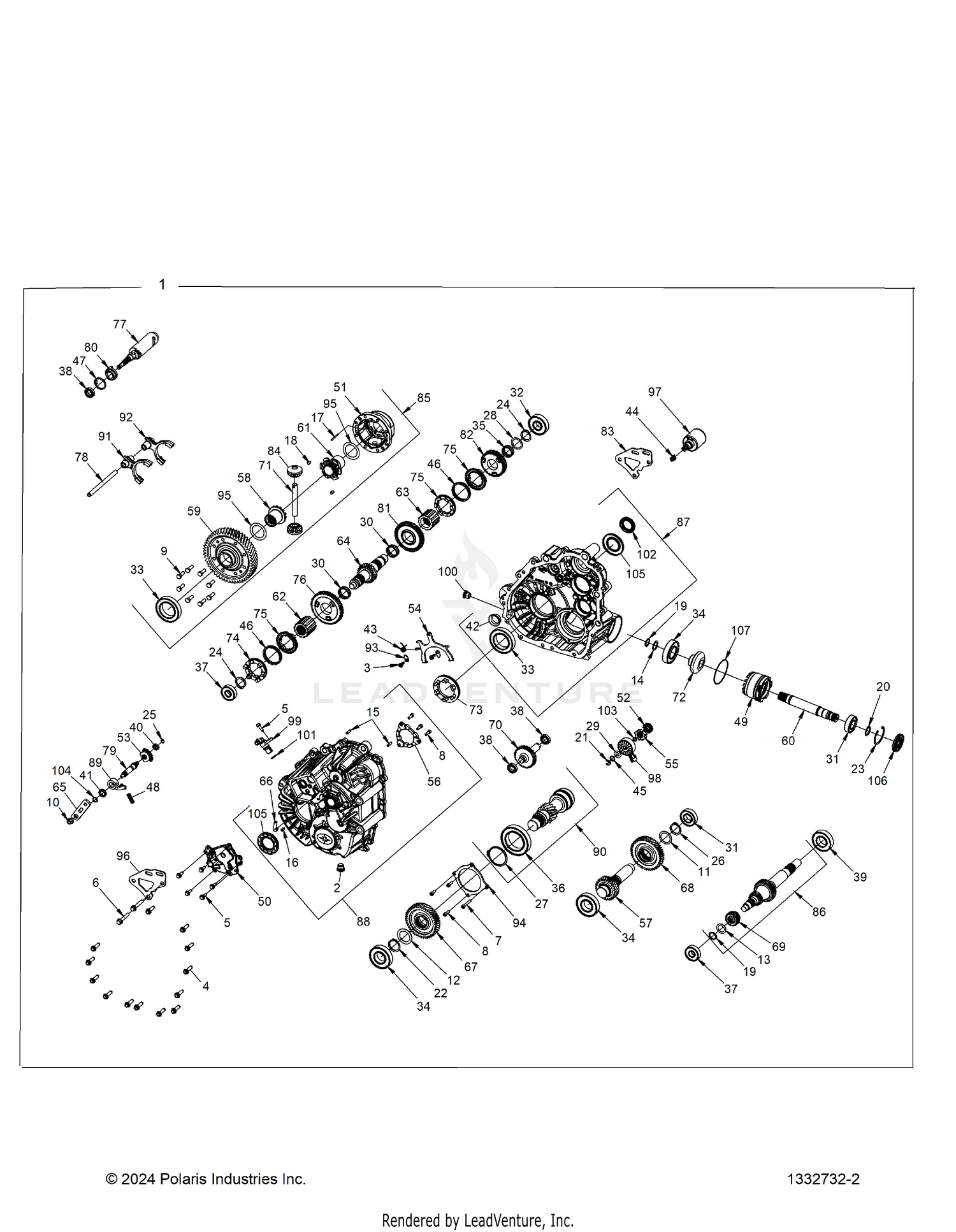

| Ref | Part Number | Description |
|---|
| 2 |
3234756 |
PLUG, M18 X 1.5 MAGNETIC Price: $39.99 |
| 3 |
3234309 |
SCREW, 6-LOBE, PAN HD M6 X 1 X 16 Price: $8.99 |
| 4 |
3234898 |
SCREW-HEXFLANGEHEAD,M8X1.25X30 Price: $11.99 |
| 5 |
3235206 |
SCREW, HEX FLANGE HEAD, M6 X 1 X 20 Price: $8.99 |
| 6 |
3235207 |
SCREW, HEX FLANGE M8 X 50 Price: $12.99 |
| 7 |
3235208 |
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 Price: $13.99 |
| 8 |
3235332 |
SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 Price: $4.99 |
| 9 |
3236169 |
SCREW, CAP HH M8 X 1.25 X 25 Price: $11.99 |
| 10 |
3235210 |
NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 Price: $9.99 |
| 11 |
3235211 |
WASHER-32.3X42X1.5(115288) Price: $12.99 |
| 12 |
3235212 |
WASHER-35.6X57X1.5(115289) Price: $16.99 |
| 13 |
3235991 |
WASHER 22.70 X 32.0 X 1.5 Price: $12.99 |
| 14 |
3236410 |
WASHER, 22.5 X 30 X 1.5 Price: $9.99 |
| 15 |
3234330 |
PIN, DOWEL 6 X 20 Price: $8.99 |
| 16 |
7043746 |
PIN, SPRING, SLOTTED 6 X 12 Price: $9.99 |
| 17 |
3236286 |
PIN, DOWEL 3 X 40 Price: $16.99 |
| 18 |
3236295 |
PIN, DOWEL 8 X 10 Price: $13.99 |
| 19 |
7710434 |
RING, RETAINING BASIC EXTERNAL Price: $4.99 |
| 20 |
3233106 |
RING,RETAINING BASIC,EXTERNAL 0.984 Price: $6.99 |
| 21 |
3233834 |
RING, RETAINING BASIC EXTERNAL Price: $12.99 |
| 22 |
3233364 |
RING, RETAINING, SHAFT, DIA. 1.375 Price: $7.99 |
| 23 |
3234269 |
RING,RETAINING BASIC,INTERNAL 2.047 Price: $11.99 |
| 24 |
3234205 |
RING, RETAINING, Price: $13.99 |
| 25 |
3239594 |
RING, RETAINING, BASIC EXTERNAL SH-39 Price: $9.99 |
| 26 |
3235214 |
RING-RETAIN,EXT,MSR-32(130296) Price: $11.99 |
| 27 |
3235216 |
RING-RETAIN,VSH-237(130298) Price: $12.99 |
| 28 |
3233378 |
WASHER,THRUST,1.187 X 1.500 X .0600 Price: $11.99 |
| 29 |
3234642 |
WASHER,THRUST,0.446 X 0.88 X 0.025 Price: $12.99 |
| 30 |
3233014 |
BEARING, NEEDLE Price: $54.99 |
| 31 |
3233019 |
BEARING, BALL, 6205 C3 25X52X15 Price: $39.99 |
| 32 |
3233020 |
BEARING Price: $59.99 |
| 33 |
3233268 |
BEARING-BALL 6010 C3 50 X 80 X 10 Price: $64.99 |
| 34 |
3234065 |
BEARING,BALL 6207 C3 35X72X17 Price: $59.99 |
| 35 |
3233384 |
BEARING-NEEDLE,30X35X13-CAGED Price: $39.99 |
| 36 |
3235218 |
BEARING, BALL, 6012 C3 60 X 95 X 18 Price: $74.99 |
| 37 |
3234652 |
BEARING, BALL 6303, 17 X 47 X 14 Price: $19.99 |
| 38 |
3235807 |
BEARING, BALL 6903 17 X 30 X 7 Price: $44.99 |
| 39 |
3236118 |
BEARING, BALL 62/32 Price: $39.99 |
| 40 |
3239595 |
BEARING, BALL 6800, 10 X 19 X 5 Price: $14.99 |
| 41 |
3239596 |
BEARING, BALL 6802, 15 X 24 X 5 Price: $14.99 |
| 42 |
3239597 |
BEARING, PLAIN FLNGD, 28 X 32 X 13.00 Price: $19.99 |
| 43 |
3234276 |
SPRING, TORSION, RETURN Price: $10.99 |
| 44 |
3234277 |
SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE Price: $16.99 |
| 45 |
3235327 |
WASHER-SPRING,210393 Price: $11.99 |
| 46 |
3239598 |
SPRING, WAVE, 53.00 ID X 61.00 OD Price: $16.99 |
| 47 |
3239599 |
SPRING, TORSION Price: $29.99 |
| 48 |
3239600 |
SPRING, COMPRESSION, DETENT Price: $16.99 |
| 49 |
3236120 |
TUBE, SNORKEL MACH Price: $204.99 |
| 50 |
3239601 |
COVER, SECTOR GEARS, MACH Price: $44.99 |
| 51 |
3236287 |
CARRIER, DIFFERENTIAL MACH Price: $209.99 |
| 52 |
3233839 |
GEAR, SECTOR, 16T Price: $44.99 |
| 53 |
3233832 |
GEAR-SECTOR,31T Price: $44.99 |
| 54 |
3235455 |
FORK, PIVOT SHIFT, REAR DIFF Price: $114.99 |
| 55 |
3239602 |
STAR, DETENT Price: $44.99 |
| 56 |
3239815 |
PLATE, PARK 6-FACE Price: $49.99 |
| 57 |
3235223 |
SHAFT-IDLER,29T(285803) Price: $134.99 |
| 58 |
3236290 |
GEAR, 14T OUTPUT, MACH Price: $204.99 |
| 59 |
3236291 |
GEAR, 53T OUTPUT Price: $324.99 |
| 60 |
3236411 |
SHAFT, FRONT OUTPUT Price: $164.99 |
| 61 |
3236289 |
GEAR, 14T OUTPUT DISCONNECT, MACH Price: $209.99 |
| 62 |
3239675 |
SLEEVE, PARK Price: $59.99 |
| 63 |
3239676 |
SLEEVE, HIGH Price: $29.99 |
| 64 |
3239606 |
SHAFT,REVERSE,25T Price: $184.99 |
| 65 |
3239607 |
BELLCRANK, ZEUS, RC SHIFTING Price: $39.99 |
| 66 |
3234230 |
TUBE, VENT 90 -1/4 INCH HOSE Price: $12.99 |
| 67 |
3235236 |
GEAR-46T,STAGE 3(352872) Price: $134.99 |
| 68 |
3235450 |
GEAR, 48T, STAGE 2 Price: $164.99 |
| 69 |
3236132 |
GEAR, LOW 25T Price: $79.99 |
| 70 |
3235986 |
GEAR, IDLER 39T Price: $139.99 |
| 71 |
3236292 |
PIN, DIFFERENTIAL Price: $129.99 |
| 72 |
3236412 |
GEAR, 13T SNORKEL Price: $179.99 |
| 73 |
3236293 |
DOG, ENGAGEMENT Price: $169.99 |
| 74 |
3239608 |
SHIFT DOG, PARK Price: $179.99 |
| 75 |
3239609 |
DOG, SHIFT Price: $179.99 |
| 76 |
3239610 |
GEAR, LOW 67T Price: $144.99 |
| 77 |
3239611 |
DRUM, SHIFT MACH Price: $344.99 |
| 78 |
3239612 |
RAIL, SHIFT SHAFT Price: $29.99 |
| 79 |
3239613 |
SHAFT, SHIFT Price: $44.99 |
| 80 |
3239614 |
CAM, PARK Price: $189.99 |
| 81 |
3239615 |
GEAR, REVERSE 56T Price: $119.99 |
| 82 |
3239616 |
GEAR, HIGH 52T Price: $99.99 |
| 83 |
3236342 |
WELDMENT, REAR MOUNT BRACKET Price: $44.99 |
| 84 |
3236288 |
SUBASSEMBLY, PINION GEAR Price: $169.99 |
| 85 |
3236285 |
SUBASSEMBLY, DIFFERENTIAL Price: $479.99 |
| 86 |
3236691 |
SUBASSEMBLY, INPUT 43T/22T/25T Price: $429.99 |
| 87 |
3239617 |
SUBASSEMBLY, LH CASE Price: $564.99 |
| 88 |
3239618 |
SUBASSEMBLY, RH CASE Price: $499.99 |
| 89 |
3239619 |
SUBASSEMBLY,ROLLER PAWL Price: $44.99 |
| 90 |
3239519 |
SHAFT,PINION,11T Price: $469.99 |
| 91 |
3239620 |
SUBASSEMBLY, SHIFT FORK Price: $89.99 |
| 92 |
3239621 |
SUBASSEMBLY, SHIFT FORK Price: $89.99 |
| 93 |
3234934 |
RETAINER-FORK Price: $12.99 |
| 94 |
3235241 |
COVER-BEARING,CNTR DR. Price: $59.99 |
| 95 |
3236294 |
WASHER, THRUST, 40.83 X 56.25 X 0.38 Price: $13.99 |
| 96 |
3236343 |
BRACKET, REAR MOUNT Price: $44.99 |
| 97 |
3235478 |
SOLENOID Price: $364.99 |
| 98 |
7662299 |
SWITCH, ROTARY , 2 PIN RESISTIVE Price: $139.99 |
| 100 |
3234755 |
PLUG, M18 X 1.5 Price: $34.99 |
| 101 |
3236279 |
O-RING, -016 VITON Price: $8.99 |
| 102 |
3236141 |
SEAL, TRIPLE LIP 32 X 49 X 8 VITON Price: $74.99 |
| 103 |
3233836 |
O-RING, -012 VITON Price: $8.49 |
| 104 |
3233828 |
O-RING, -014 VITON Price: $8.49 |
| 105 |
3235052 |
SEAL, TRIPLE LIP, VITON HELIX 40X70X7 Price: $39.99 |
| 106 |
3236135 |
SEAL, TRIPLE LIP 25 X 55 X 8 Price: $69.99 |
