| Ref | Part Number | Description |
|---|
| 1 |
2BS-11101-09-00 |

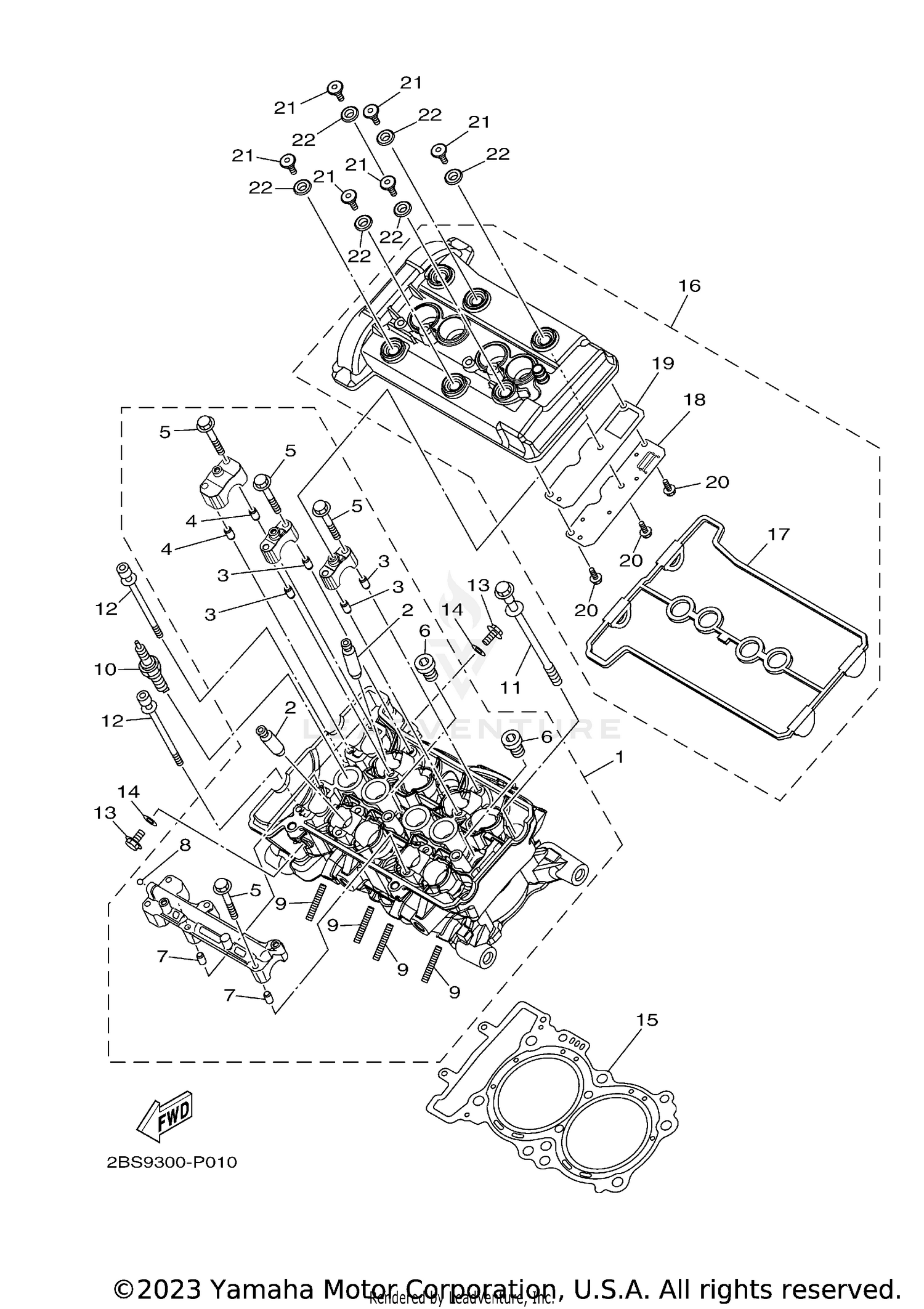

CYLINDER HEAD ASSY Price: $1,161.99 |
| 2 |
23P-11133-10-00 |
GUIDE, VALVE 1 Price: $99.99 |
| 3 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 4 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 5 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 6 |
90340-12007-00 |
PLUG, STRAIGHT SCREW Price: $9.49 |
| 7 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 8 |
93501-04011-00 |
BALL Price: $9.49 |
| 9 |
95612-08625-00 |
BOLT, STUD Price: $6.49 |
| 10 |
CPR-8EB90-00-00 |
CPR8EB-9 NGK SPLUG This part replaces 94702-00428-00. Price: $9.99 |
| 11 |
90119-12003-00 |
BOLT, WITH WASHER Price: $50.99 |
| 12 |
90110-06229-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 13 |
95022-08012-00 |
BOLT, FLANGE Price: $13.49 |
| 14 |
90430-08119-00 |
GASKET Price: $7.49 |
| 15 |
23P-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $77.99 |
| 17 |
23P-11193-00-00 |
GASKET, HEAD COVER 1 Price: $53.99 |
| 18 |
2BS-11165-00-00 |
PLATE, BREATHER Price: $17.49 |
| 19 |
23P-11169-00-00 |
GASKET, BREATHER COVER Price: $4.45 |
| 20 |
95022-06020-00 |
BOLT, FLANGE This part replaces 90105-06201-00. Price: $3.90 |
| 21 |
90109-066F0-00 |
BOLT Price: $9.49 |
