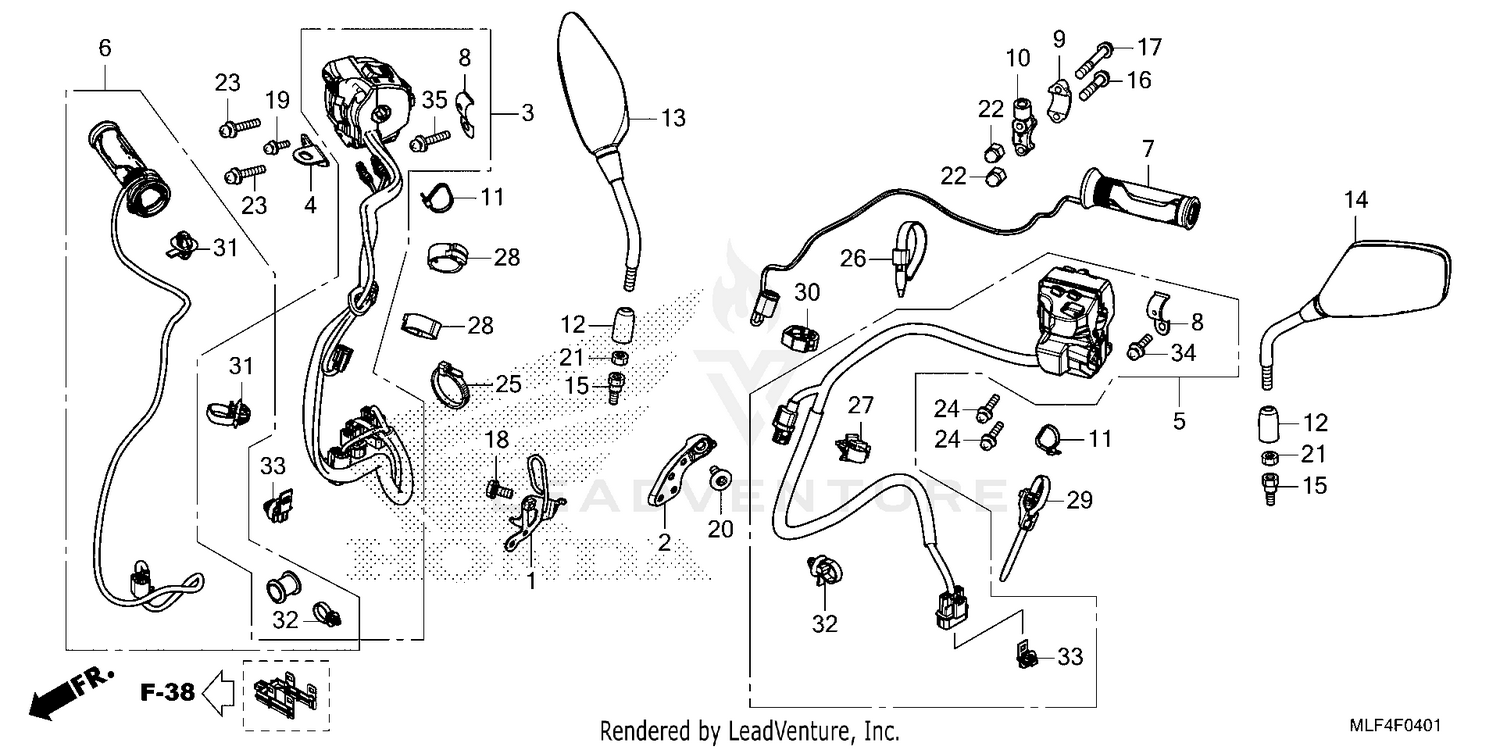

| Ref | Part Number | Description |
|---|
| 1 |
17925-MKS-E00 |
GUIDE, CABLE Price: $14.18 |
| 2 |
32151-MKK-D00 |
STAY, CLIP Price: $9.76 |
| 3 |
35135-MLF-ED1 |
SWITCH UNIT Price: $312.64 |
| 4 |
35138-MKS-E20 |
STAY, GRIP HEATER WIRE Price: $4.33 |
| 5 |
35200-MLF-AD1 |
SWITCH ASSY. Price: $249.45 |
| 6 |
35511-MKS-E21 |
HEATER UNIT, R. HANDLE Price: $96.85 |
| 7 |
35520-MLF-305 |
HEATER ASSY., L. (NOT AVAILABLE) Price: $113.73 |
| 8 |
37971-MKS-E01 |
PLATE A, SETTING Price: $5.09 |
| 9 |
45517-MFL-006 |
HOLDER, MASTER CYLINDER Price: $14.38 |
| 10 |
45518-MFN-D01 |
HOLDER, MASTER CYLINDER Price: $15.04 |
| 11 |
83645-GG0-000 |
BAND, NYLON Price: $2.22 |
| 12 |
88130-MFG-D00 |
COVER, LOCK NUT Price: $1.96 |
| 13 |
88210-MLN-E60 |
MIRROR, R. Price: $82.27 |
| 14 |
88220-MLC-D00 |
MIRROR COMP L Price: $80.45 |
| 15 |
90003-MW3-620 |
BOLT, ADAPTER (10MM) Price: $9.80 |
| 16 |
90021-GHB-710 |
BOLT, FLANGE (6X32) Price: $2.84 |
| 17 |
90021-GHB-750 |
BOLT, FLANGE (6X45) Price: $3.35 |
| 18 |
90030-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.44 |
| 19 |
90110-MKS-E20 |
SCREW-WASHER (4X8) Price: $1.65 |
| 20 |
90114-MGE-D00 |
BOLT, SPECIAL (6X15) Price: $2.35 |
| 21 |
90201-MW3-620 |
NUT, HEX. (10MM) (LEFT HAND THREAD) Price: $5.53 |
| 22 |
90301-MLF-E70 |
NUT, HEX. CAP (6MM) (NOT AVAILABLE) Price: $1.58 |
| 23 |
90508-MGE-D00 |
SCREW-WASHER (5X25) Price: $1.47 |
| 24 |
90508-MGS-D30 |
SCREW-WASHER (5X16) Price: $2.13 |
| 25 |
90650-KV6-003 |
BAND, WIRE (Honda Code 2687788) Price: $3.91 |
| 26 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 27 |
90672-SA0-003 |
STRAP, CABLE (118MM) (BLACK) (Honda Code 1170653) Price: $7.85 |
| 28 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.47 |
| 29 |
90690-GHB-611 |
CLIP, HARNESS BAND (25MM) Price: $2.49 |
| 30 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 31 |
91540-S7S-003 |
CLIP, HARNESS BAND (157.7MM) (BLACK) Price: $6.08 |
| 32 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 33 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
| 34 |
93892-05010-08 |
SCREW-WASHER (5X10) Price: $1.20 |
