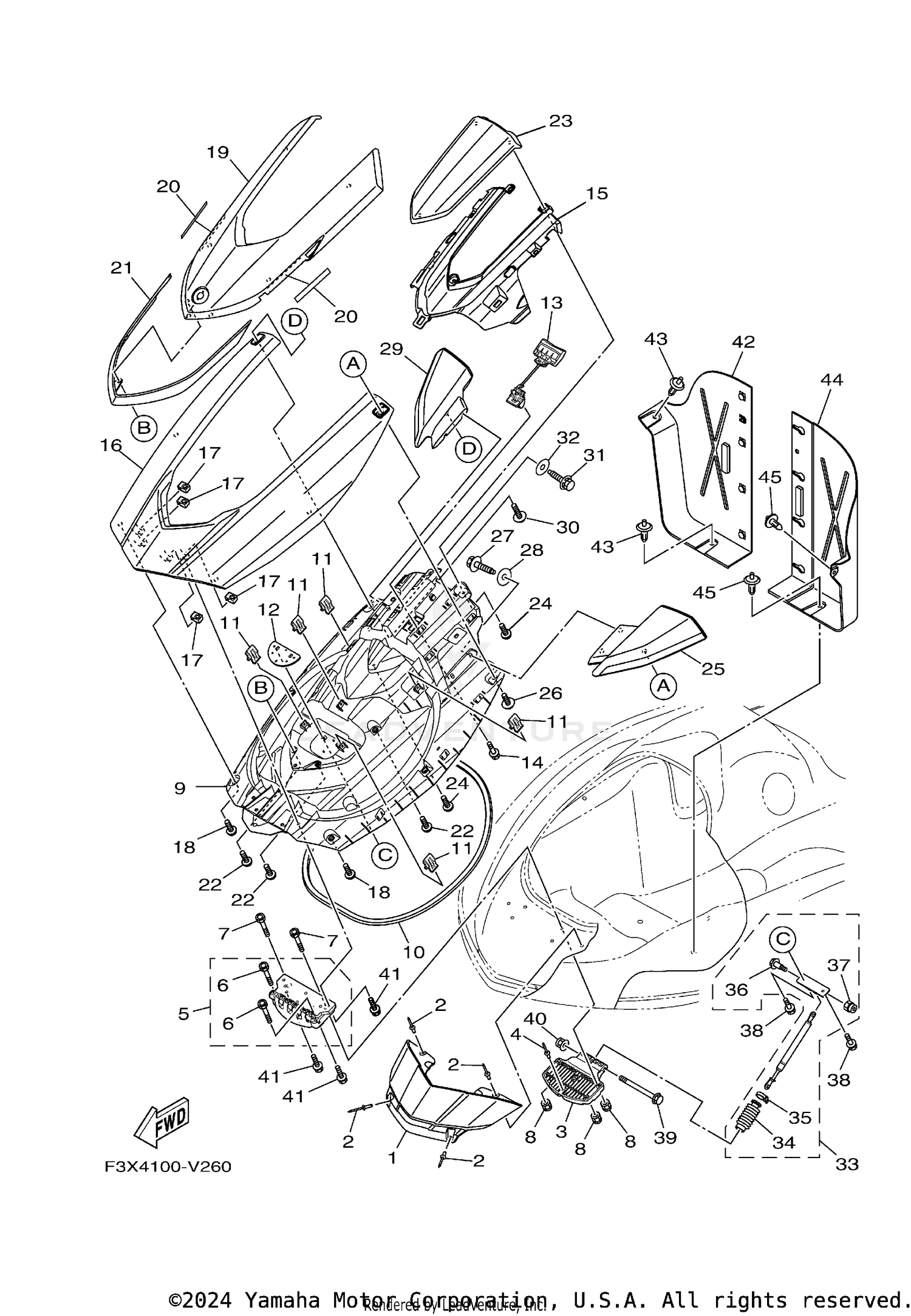

| Ref | Part Number | Description |
|---|
| 1 |
F3X-U513M-01-P1 |
COVER, FRONT Price: $134.99 |
| 2 |
90267-489U6-00 |
RIVET, BLIND Price: $6.99 |
| 3 |
F3X-U518E-00-00 |
PLATE, HINGE LID Price: $30.99 |
| 4 |
90267-489U6-00 |
RIVET, BLIND Price: $6.99 |
| 5 |
F3X-U517D-01-00 |
HINGE, LID Price: $39.99 |
| 6 |
F3X-U3222-00-00 |
BOLT Price: $4.99 |
| 7 |
F3X-U3222-00-00 |
BOLT Price: $4.99 |
| 8 |
F2N-U142L-00-00 |
NUT, LOCK Price: $5.99 |
| 9 |
F3X-U519G-00-00 |
INNER, ENGINE HATC Price: $102.99 |
| 10 |
F3X-U2663-10-00 |
PACKING 1 This part replaces F3X-U2663-00-00. Price: $65.99 |
| 11 |
F3Y-U153K-00-00 |
CLIP Price: $5.99 |
| 12 |
F3X-U5148-00-00 |
PLATE, HATCH Price: $12.99 |
| 13 |
F3X-U517C-00-00 |
LOCK, LID Price: $40.99 |
| 14 |
90119-05912-00 |
BOLT, WITH WASHER This part replaces 90119-059U4-00. Price: $4.49 |
| 15 |
F3X-U519F-00-00 |
OUTER, ENGINE HATC Price: $39.99 |
| 16 |
F3X-U517B-00-P1 |
LID, ENGINE ROOM Price: $390.99 |
| 17 |
F3X-U517E-00-00 |
NUT Price: $5.99 |
| 18 |
F2S-U13C1-00-00 |
SCREW Price: $6.99 |
| 19 |
F3X-U515N-01-P8 |
VISOR This part replaces F3X-U515N-00-P8. Price: $249.99 |
| 20 |
F0X-U515E-02-00 |
DAMPER 2 This part replaces F0X-U515E-01-00. Price: $1.99 |
| 21 |
F3X-U517V-30-00 |
ORNAMENT, CENTER Price: $47.99 |
| 22 |
F2S-U13C1-00-00 |
SCREW Price: $6.99 |
| 23 |
F3X-U515P-30-00 |
VISOR, 2 Price: $119.99 |
| 24 |
F2S-U13C1-00-00 |
SCREW Price: $6.99 |
| 25 |
F3X-U590D-C0-00 |
MIRROR ASSY. 1 Price: $161.99 |
| 26 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 27 |
90119-06803-00 |
BOLT, WITH WASHER This part replaces 90119-06880-00. Price: $8.99 |
| 28 |
90201-068G0-00 |
WASHER, PLATE Price: $2.99 |
| 29 |
F3X-U590E-C0-00 |
MIRROR ASSY. 2 Price: $161.99 |
| 30 |
F3X-U7823-12-00 |
SCREW Price: $5.99 |
| 31 |
90119-06803-00 |
BOLT, WITH WASHER This part replaces 90119-06880-00. Price: $8.99 |
| 32 |
90201-068G0-00 |
WASHER, PLATE Price: $2.99 |
| 33 |
F2S-6514S-00-00 |
DAMPER ASSY Price: $261.99 |
| 34 |
F1W-6514T-00-00 |
COVER, DAMPER Price: $23.99 |
| 35 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 36 |
90109-06218-00 |
BOLT Price: $10.49 |
| 37 |
95720-06300-00 |
NUT, SELF-LOCKING Price: $1.99 |
| 38 |
90119-06830-00 |
BOLT, WITH WASHER This part replaces 90119-069UH-00. Price: $1.60 |
| 39 |
F3X-U491K-00-00 |
BOLT, SPECIAL Price: $6.99 |
| 40 |
F3Y-U142L-00-00 |
NUT, LOCK Price: $6.99 |
| 41 |
90119-06896-00 |
BOLT, WITH WASHER Price: $8.99 |
| 42 |
F3X-U475B-00-00 |
LOCKER,BOW Price: $31.99 |
| 43 |
F4P-U1454-00-00 |
RIVET Price: $2.99 |
| 44 |
F3X-U475F-00-00 |
PLATE, LOKER BOW Price: $32.99 |
