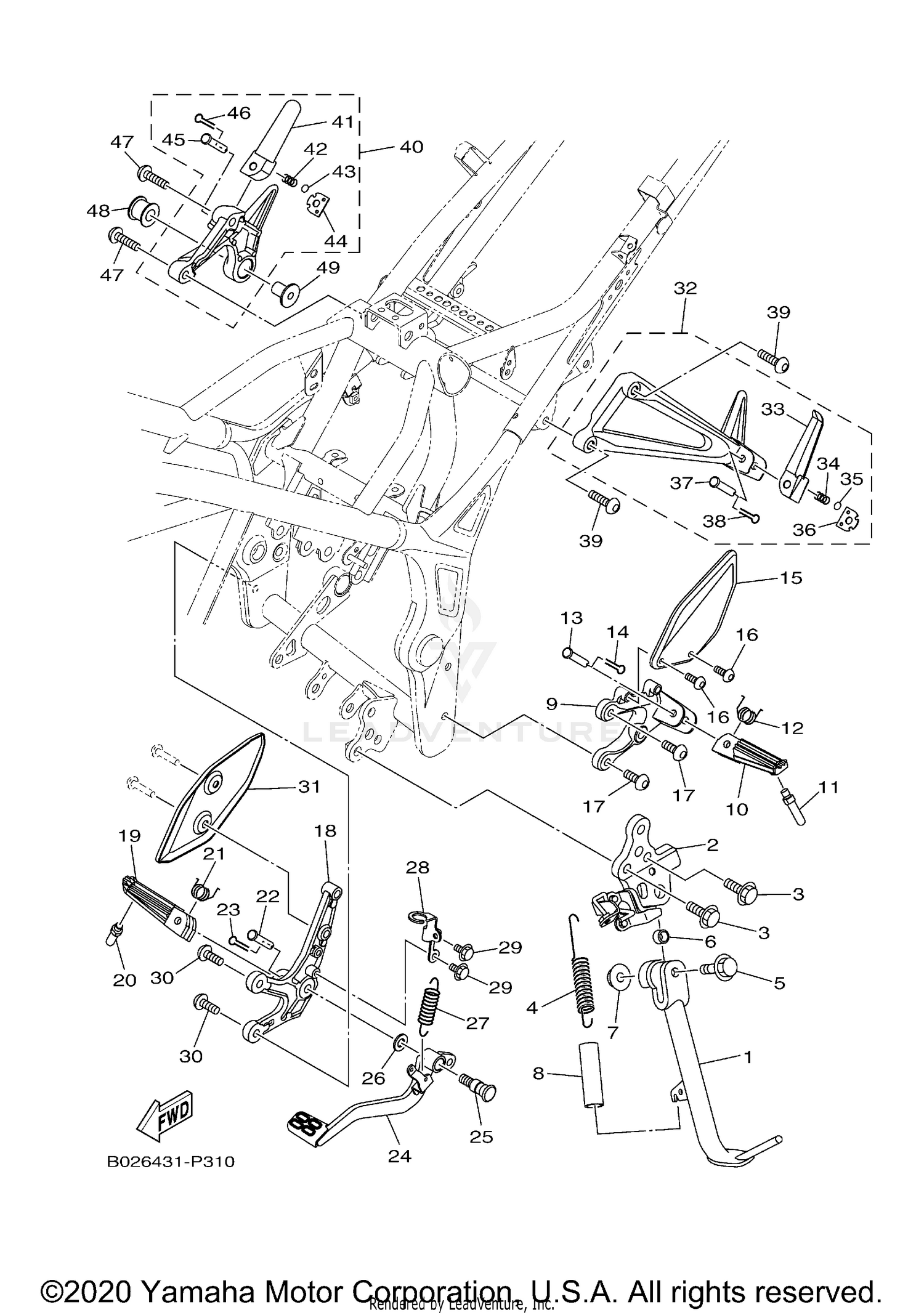

| Ref | Part Number | Description |
|---|
| 1 |
1WD-F7311-00-00 |
STAND, SIDE Price: $35.99 |
| 2 |
1WD-F7321-10-00 |
BRACKET, SIDE STAND Price: $80.99 |
| 3 |
95817-10025-00 |
BOLT, FLANGE Price: $9.49 |
| 4 |
90506-23812-00 |
SPRING, TENSION Price: $11.49 |
| 5 |
90105-106A7-00 |
BOLT, FLANGE Price: $6.49 |
| 6 |
90387-10010-00 |
COLLAR Price: $6.49 |
| 7 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 8 |
90445-212G3-00 |
HOSE (L95) This part replaces 90445-217G3-00. Price: $9.49 |
| 9 |
1WD-F7442-01-00 |
BRACKET 2 Price: $29.99 |
| 10 |
1WD-F7451-00-00 |
FOOTREST Price: $23.99 |
| 11 |
1WD-F7435-00-00 |
BOLT Price: $3.00 |
| 12 |
90508-183B9-00 |
SPRING, TORSION Price: $4.60 |
| 13 |
90240-08145-00 |
PIN, CLEVIS Price: $5.49 |
| 14 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 15 |
2MS-F7445-00-00 |
PLATE 1 Price: $64.99 |
| 16 |
90111-06013-00 |
BOLT, HEX. SOCKET BUTTON Price: $5.49 |
| 17 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 18 |
1WD-F7443-00-00 |
BRACKET 3 Price: $89.99 |
| 19 |
1WD-F7461-00-00 |
FOOTREST Price: $19.49 |
| 20 |
1WD-F7435-00-00 |
BOLT Price: $3.00 |
| 21 |
90508-183B9-00 |
SPRING, TORSION Price: $4.60 |
| 22 |
90240-08145-00 |
PIN, CLEVIS Price: $5.49 |
| 23 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 24 |
1WD-F7211-00-00 |
PEDAL, BRAKE Price: $74.99 |
| 25 |
4BP-27261-10-00 |
SHAFT This part replaces 4BP-27261-00-00. Price: $17.99 |
| 26 |
90201-10021-00 |
WASHER, PLATE Price: $6.49 |
| 27 |
90506-26807-00 |
SPRING, TENSION Price: $5.99 |
| 28 |
1WD-F144G-00-00 |
STAY, STOP SWITCH Price: $3.40 |
| 29 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 30 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 31 |
2MS-F7446-00-00 |
PLATE 2 Price: $32.99 |
| 32 |
1WD-F7430-01-00 |
REAR FOOTREST ASSY 1 Price: $69.99 |
| 33 |
1WD-F7431-01-00 |
FOOTREST, REAR 1 Price: $20.99 |
| 34 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 35 |
93501-04011-00 |
BALL This part replaces 93501-04830-00. Price: $9.49 |
| 36 |
1WD-F7437-00-00 |
WASHER, SPECIAL Price: $1.30 |
| 37 |
90240-08145-00 |
PIN, CLEVIS Price: $5.49 |
| 38 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 39 |
90110-08071-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 40 |
1WD-F7440-01-00 |
REAR FOOTREST ASSY 2 Price: $88.99 |
| 41 |
1WD-F7441-01-00 |
FOOTREST, REAR 2 Price: $13.49 |
| 42 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 43 |
93501-04011-00 |
BALL This part replaces 93501-04830-00. Price: $9.49 |
| 44 |
1WD-F7437-00-00 |
WASHER, SPECIAL Price: $1.30 |
| 45 |
90240-08145-00 |
PIN, CLEVIS Price: $5.49 |
| 46 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 47 |
90110-08071-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 48 |
4XV-27424-00-00 |
DAMPER, MUFFLER This part replaces 5TP-E4747-00-00. Price: $16.49 |
