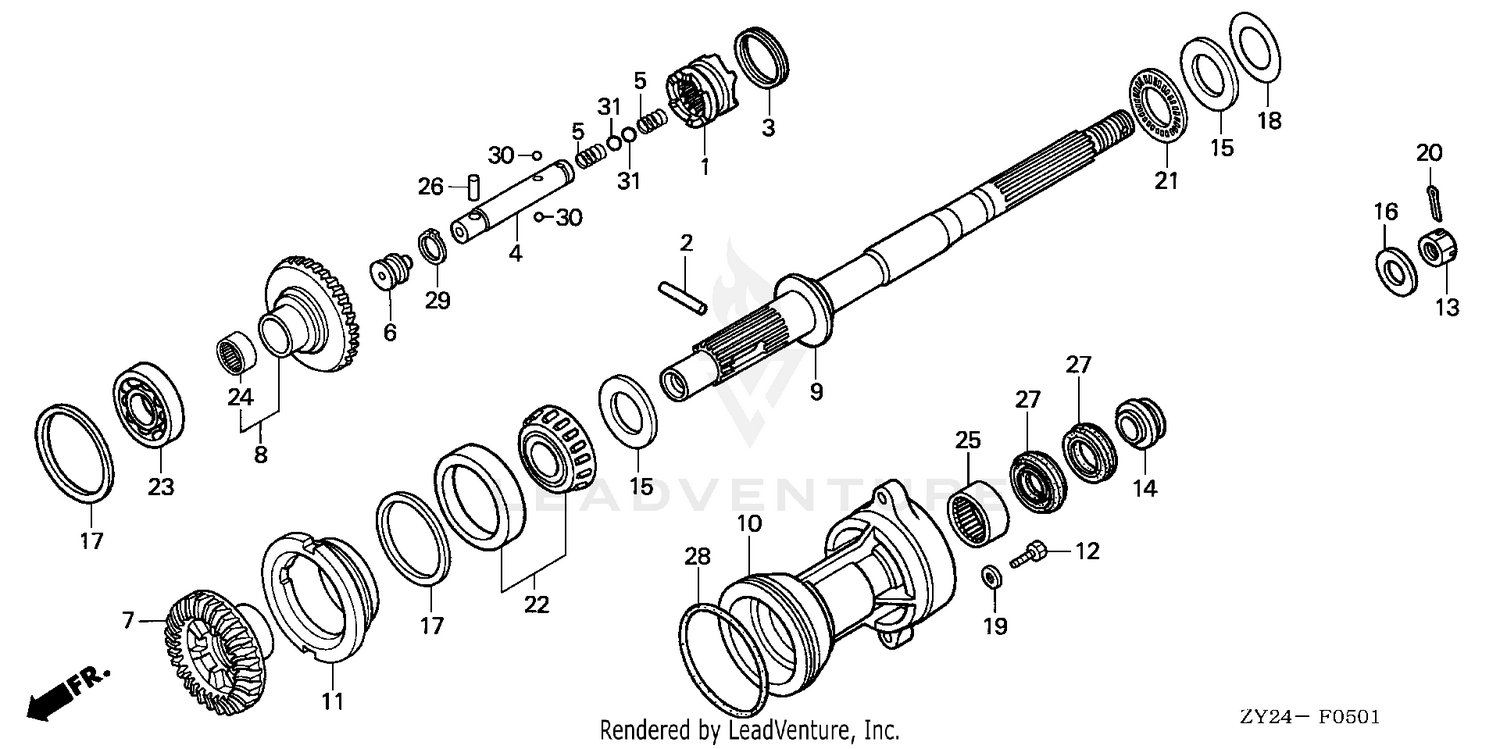

| Ref | Part Number | Description |
|---|
| 1 |
11350MET640 |
COVER COMP., L. RR. Price: Call Us |
| 1 |
24101-ZY3-000 |
SHIFTER, CLUTCH Price: $148.52 |
| 2 |
11355MET640 |
GUIDE COMP., DRIVE CHAIN Price: Call Us |
| 2 |
24102-ZY3-000 |
PIN, SHIFTER (8X50) Price: $5.20 |
| 3 |
19200MY5603 |
PUMP ASSY., WATER Price: Call Us |
| 3 |
24103-ZY3-000 |
RING, CROSS PIN Price: $3.40 |
| 4 |
19220MY5305 |
COVER COMP., WATER PUMP Price: Call Us |
| 4 |
24122-ZY3-000 |
SLIDER, SHIFT Price: $70.34 |
| 5 |
19226KE7010 |
GASKET, WATER PUMP COVER Price: Call Us |
| 5 |
24123-ZY3-000 |
SPRING, SHIFT Price: $2.90 |
| 6 |
24124-ZY3-310 |
PLATE, SHIFT Price: $21.74 |
| 6 |
90013883000 |
BOLT, FLANGE, 6X12 (CT200) Price: Call Us |
| 7 |
41141-ZY3-B02 |
GEAR, BEVEL (FORWARD 28T) (COUNTER ROTATION) Price: $391.42 |
| 7 |
90121MV9670 |
BOLT, FLANGE, 6X25 Price: Call Us |
| 8 |
41150-ZY3-710 |
GEAR, RR. (28T) Price: $423.40 |
| 8 |
90463ML7000 |
WASHER, SEALING, 6.5MM Price: Call Us |
| 9 |
41161-ZY3-710 |
SHAFT, PROPELLER Price: $410.16 |
| 9 |
91302MB0013 |
O-RING, 32.95X2.62 (ARAI) Price: Call Us |
| 10 |
41201-ZY3-000ZA |
HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U) Price: Call Us |
| 10 |
960010604500 |
BOLT, FLANGE, 6X45 Price: Call Us |
| 11 |
41202-ZY3-700 |
HOLDER, BEARING (COUNTER ROTATION) Price: $128.34 |
| 12 |
90123-ZY3-000 |
BOLT, HEX. (12X45) Price: $13.00 |
| 13 |
90301-ZW1-B00 |
NUT, CASTLE (18MM) Price: $15.50 |
| 14 |
90506-ZX2-C00 |
SEE PART DETAILS - PRI; WASHER, PROPELLER THRUST Price: $52.94 |
| 15 |
90509-ZW5-711 |
SEE PART DETAILS - PRI; WASHER, THRUST BEARING This part replaces 90509-ZW5-710. Price: $20.40 |
| 16 |
90512-ZX2-C00 |
SEE PART DETAILS - PRI; WASHER, PROPELLER Price: $51.44 |
| 17 |
90528-ZY3-000 |
SHIM A, BEVEL (0.10) Price: $23.08 |
| 17 |
90529-ZY3-000 |
SHIM B, BEVEL (0.15) Price: $23.08 |
| 17 |
90530-ZY3-000 |
SHIM C, BEVEL (0.30) Price: $23.08 |
| 17 |
90531-ZY3-000 |
SHIM D, BEVEL (0.50) Price: $23.08 |
| 18 |
90548-ZW5-710 |
SHIM A, THRUST (0.10) Price: $14.88 |
| 18 |
90549-ZW5-710 |
SHIM B, THRUST (0.15) Price: $14.88 |
| 18 |
90550-ZW5-710 |
SHIM C, THRUST (0.30) Price: $14.88 |
| 18 |
90551-ZW5-710 |
SHIM D, THRUST (0.50) Price: $14.88 |
| 19 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 20 |
90758-ZW1-B00 |
PIN, SPLIT (4.0) Price: $2.56 |
| 21 |
91005-PT2-N01 |
BEARING, THRUST (F) Price: $21.70 |
| 22 |
91051-ZY3-003 |
BEARING, TAPER (50X90X21.5) Price: $85.36 |
| 23 |
91055-ZY3-003 |
BEARING, ANGULAR (50X90X30.2) Price: $96.84 |
| 24 |
91056-ZY3-711 |
BEARING, NEEDLE (28X39X30) Price: $58.70 |
| 25 |
91057-ZY3-003 |
BEARING, NEEDLE (32X42X30) Price: $62.54 |
| 26 |
91151-ZY3-003 |
ROLLER (4X13.8) Price: $2.16 |
| 27 |
91252-ZY3-003 |
SEAL, WATER (30X45X7) Price: $10.08 |
| 28 |
91351-ZY3-003 |
O-RING (105X3.1) Price: $10.10 |
| 29 |
94510-15000 |
CIRCLIP (OUTER) (15MM) Price: $1.44 |
| 30 |
96211-07000 |
BALL, STEEL (#7) (7/32) Price: $1.60 |
