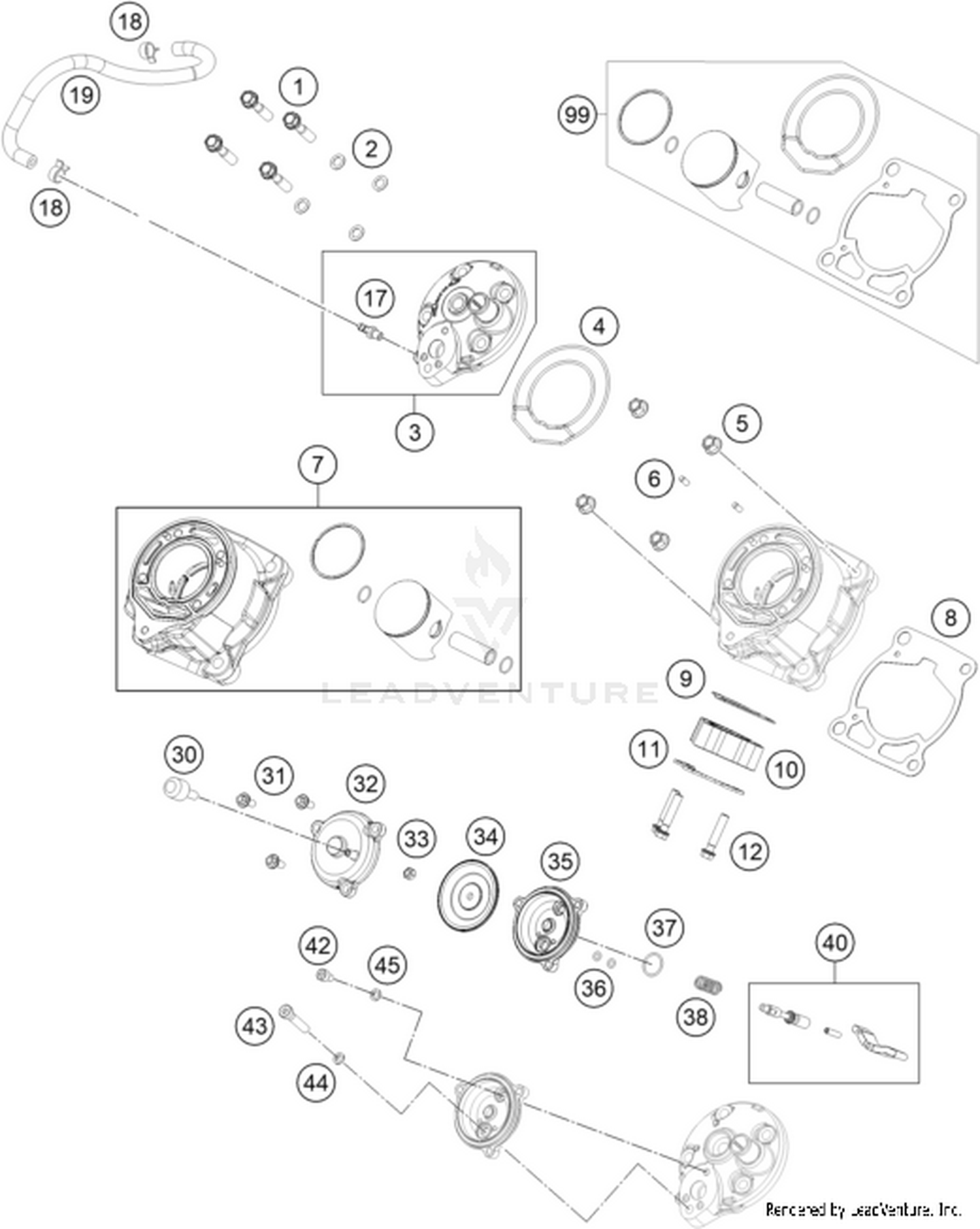

30 CYLINDER, CYLINDER HEAD
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 50430079100 | Cylinder head bolt Price: Call Us |
| 2 | 0603070121 | CU-SEAL RING DIN7603- 7,3X12X1 Price: Call Us |
| 3 | 46230006100 | Cylinder head Price: Call Us |
| 4 | 45230036000 | CYLINDER HEAD GASKET Price: Call Us |
| 6 | 0402040980 | Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 7 | 46230138000 | Cylinder + piston Price: Call Us |
| 8 | A40530035020 | Cylinder base gasket Price: Call Us |
| 8 | A40530035025 | Cylinder base gasket Price: Call Us |
| 8 | A40530035030 | Cylinder base gasket Price: Call Us |
| 8 | A40530035040 | Cylinder base gasket Price: Call Us |
| 8 | A40530035050 | Cylinder base gasket Price: Call Us |
| 8 | A40530035060 | Cylinder base gasket Price: Call Us |
| 9 | A40505004000 | Exhaust pipe flange gasket Price: Call Us |
| 10 | 46305003000 | Exhaust flange 65 Price: Call Us |
| 11 | 46205003050 | BRACKET FOR SPRINGHOLDER Price: Call Us |
| 12 | 0025060306S | HH collar screw M6x30 TX30 Price: Call Us |
| 17 | 58336020190 | VACUUM CONECTION M6/3MM '97 Price: Call Us |
| 18 | 59007017000 | CLAMP YDNAC 10096F (9,6MM) Price: Call Us |
| 19 | A40537214000 | Hose for exhaust control This part replaces A40537114000. Price: Call Us |
| 31 | 0014050163 | HH COLLAR SCREW M 5X16 WS=6 Price: Call Us |
| 32 | 46337035000 | Closing cover Price: Call Us |
| 33 | 0985050003 | Self locking nut DIN 985 M5 Price: Call Us |
| 34 | 46237013000 | MEMBRANE Price: Call Us |
| 35 | 46337011000 | Flange, exhaust control Price: Call Us |
| 36 | 0770030015 | O-RING 3,00X1,50 NBR 70 Price: Call Us |
| 37 | 0770150151 | O-RING 15,00X1,50 VITON Price: Call Us |
| 38 | 46237074100 | ADJ. SPRING - EXHAUST CONTROL Price: Call Us |
| 40 | 46337020033 | OUTLET VALVE CPL. Price: Call Us |
| 42 | 0912050083 | SHCS DIN 912 M5x8 Price: Call Us |
| 43 | 0012060303S | Cap head screw M6x30-8.8 Price: Call Us |
| 44 | 0603061001 | CU-SEAL RING DIN7603-6X10X1 Price: Call Us |
| 45 | 0603050901 | COPPERT GASKET 5X9X1 Price: Call Us |
| 99 | A40530007010 | I piston kit I 65 SX/TC/MC Price: Call Us A40530007010 I |
