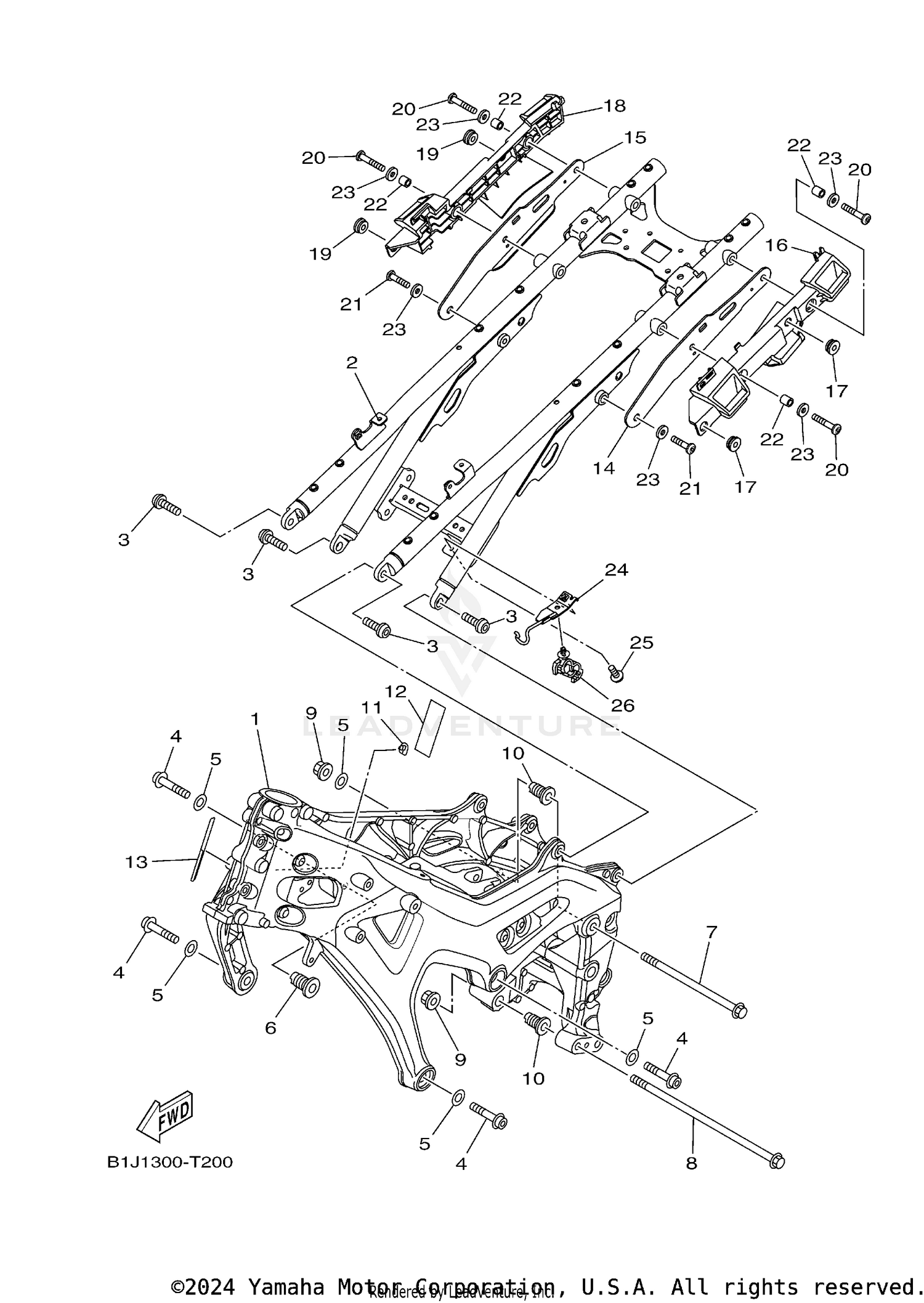

| Ref | Part Number | Description |
|---|
| 3 |
90149-10060-00 |
SCREW This part replaces 90149-10059-00. Price: $8.49 |
| 4 |
90110-10043-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.75 |
| 5 |
90201-10075-00 |
WASHER, PLATE Price: $3.55 |
| 6 |
1RC-21495-00-00 |
BOLT, ENGINE ADJUSTING Price: $21.99 |
| 7 |
90105-10391-00 |
BOLT, FLANGE Price: $12.49 |
| 8 |
90105-10437-00 |
BOLT, FLANGE Price: $14.49 |
| 9 |
90179-10024-00 |
NUT Price: $11.49 |
| 10 |
4C8-21495-00-00 |
BOLT, ENGINE ADJUSTING Price: $22.99 |
| 11 |
5VX-21289-00-00 |
PLUG, BLIND Price: $4.45 |
| 12 |
1HP-H2176-01-00 |
DAMPER This part replaces 34D-82176-00-00. Price: $2.40 |
| 13 |
1RC-2117G-00-00 |
PROTECTOR Price: $5.99 |
| 14 |
B5C-21214-00-00 |
REINF., FRAME RR. Price: $19.99 |
| 15 |
B5C-21224-00-00 |
REINF., FRAME RR. Price: $19.99 |
| 16 |
B5C-2164H-00-00 |
STAY 3 Price: $79.99 |
| 17 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 18 |
B5C-2164J-00-00 |
STAY 4 Price: $91.99 |
| 19 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 20 |
90149-08220-00 |
SCREW Price: $4.05 |
| 21 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 22 |
90387-08077-00 |
COLLAR Price: $9.49 |
| 23 |
90201-087P8-00 |
WASHER, PLATE Price: $3.05 |
| 24 |
B1J-22465-00-00 |
HOLDER Price: $19.49 |
| 25 |
90111-06103-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-06102-00. Price: $6.49 |
