Home / POWERSPORTS / ROV / 2021 / 2021 PROWLER 500 BLUE [U2021PAK4CUSE] / CARGO BOX AND TAILGATE ASSEMBLY [304005]

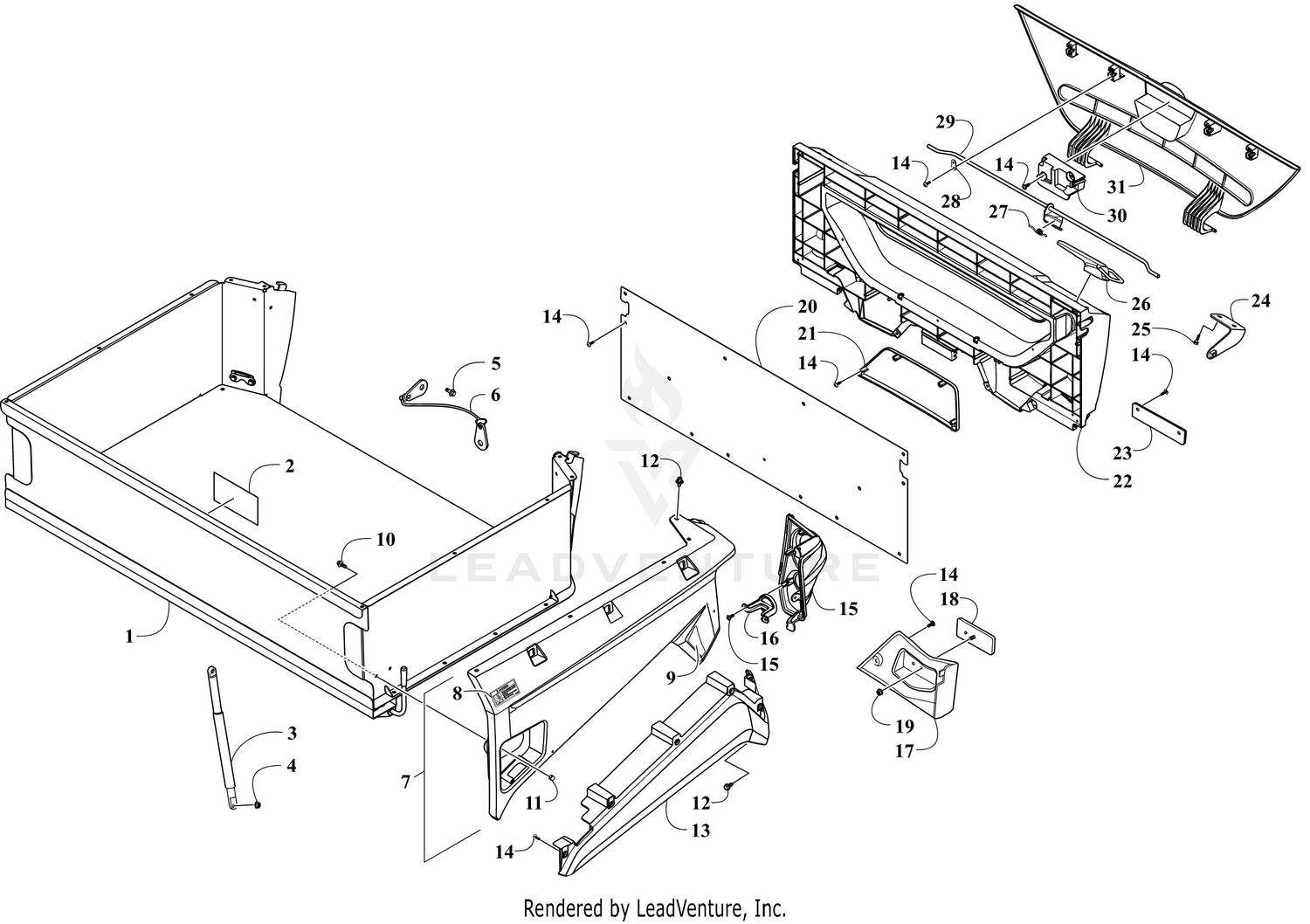

CARGO BOX AND TAILGATE ASSEMBLY [304005]

CARGO BOX AND TAILGATE ASSEMBLY [304005]

Parts (31)

RefPart NumberDescription
2 4411-965 DECAL,WARNING-CARGO Price: $10.94
3 3307-579 GAS DAMPER Price: $128.95
4 3304-668 NUT FLANGE 8MM Price: $0.85
5 3307-358 BOLT FLANGE 6MM Price: $6.12
6 3307-581 ROPE CARGO BED Price: $14.08
8 4411-883 Decal, Warning- Pinch Point Price: $3.84
9 5411-398 Decal, Reflector - RH Price: $17.24
9 5411-399 Decal, Reflector - LH Price: $14.08
10 3305-344 BOLT FLANGE 6*16 Price: $1.13
11 3307-503 NUT CAP 6MM Price: $6.12
12 3307-361 RIVET Price: $5.56
13 3307-497 Molding, Fender - Rear - Right Price: $21.96
13 3307-501 Molding, Fender - Rear - Left Price: $21.96
14 3304-650 SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56
16 3307-995 CAP TAIL COVER Price: $1.27
17 3307-491 COVER RH REFLECTOR Price: $6.60
17 3307-492 COVER LH REFLECTOR Price: $6.60
18 3304-737 REFLEX REFLECTOR Price: $12.51
19 3304-774 NUT FLANGE 5MM(G) Price: $0.93
20 3307-481 PLATE TAIL GATE Price: $85.95
21 3307-490 COVER B TAIL GATE Price: $14.08
22 3307-484 COVER,TAIL GATE Price: $171.95
23 3307-478 STAY HINGE Price: $3.39
24 3307-482 BRACKET R TRUNK STOPPER Price: $7.23
24 3307-483 BRACKET L TRUNK STOOPER Price: $7.23
25 3305-342 BOLT FLANGE 6*20 Price: $0.93
26 3307-479 LATCH REAR STORAGE LID Price: $43.95
27 3307-488 SPRING LATCH Price: $1.23
28 3307-489 STAY LATCH Price: $1.56
29 3307-487 LATCH LID Price: $26.95
30 3307-493 HOLDER LATCH Price: $4.38
