Home / POWERSPORTS / ATV / 2018 / 2018 ALTERRA 500 RED [A2018KAK4CUSR] / REAR BODY, RACK, AND TAILLIGHT ASSEMBLY [302359]

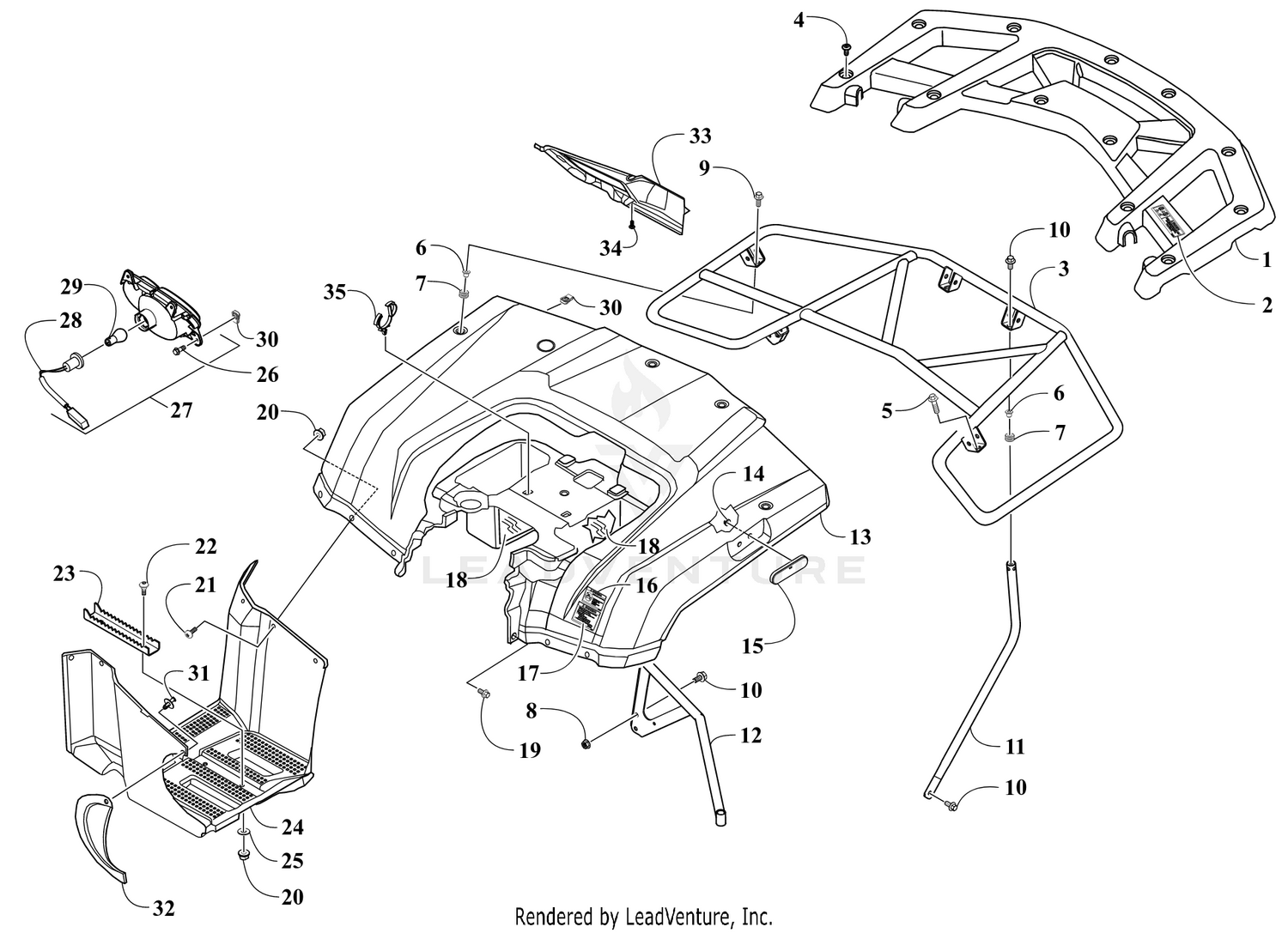

REAR BODY, RACK, AND TAILLIGHT ASSEMBLY [302359]

REAR BODY, RACK, AND TAILLIGHT ASSEMBLY [302359]

Parts (35)

RefPart NumberDescription
2 1411-682 DECAL,WARNING RACK (150LB) Price: $21.42
3 3307-183 RACK REAR Price: $204.95
4 3304-650 SCREW TAPPING 5*16 (CIRCLE HEAD) Price: $1.56
5 8410-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK Price: $1.20
6 0423-669 Spacer Price: $1.45
7 0423-465 GROMMET,RUBBER-12.7X23.8125 Price: $3.29
8 3304-668 NUT FLANGE 8MM Price: $0.85
9 3313-522 BOLT,M8*25 Price: $2.03
10 3304-543 BOLT FLANGE 8*16 Price: $1.56
11 3307-184 TUBE MOUNT-RACK-REAR-WELD (BLACK) Price: $20.38
12 3307-185 TUBE RACK MOUNT Price: $105.95
14 3304-774 NUT FLANGE 5MM(G) Price: $0.93
15 3313-360 REFLECTOR,REAR (OVAL) Price: $14.25
16 1411-809 DECAL,WARNING-PASSENGER Price: $4.19
17 5411-998 DECAL,TIRE PRESSURE Price: $6.74
18 3307-158 SHIELD RH Price: $21.96
18 3307-159 SHIELD LH Price: $18.80
19 3305-783 BOLT WASHER 8*16 Price: $3.46
20 3304-431 NUT LOCK Price: $1.27
21 3305-703 SCREW SPECIAL 6*20 Price: $1.85
22 3304-586 BOLT WASHER 6*20 Price: $1.27
23 5506-497 FOOTPEG,BLACK Price: $17.09
24 3307-160 FOOTWELL RH Price: $158.95
24 3307-161 FOOTWELL LH Price: $158.95
25 3305-852 WASHER,PLAIN 6MM Price: $0.93
26 3304-029 BOLT WASH 5*16 Price: $0.85
28 3307-174 SOCKET COMP R RR COMB Price: $36.95
28 3307-175 SOCKET COMP L RR COMB Price: $36.95
29 3303-849 BULB TAIL & STOP 12V21W/5W Price: $12.81
30 3304-061 NUT CLIP 5MM Price: $2.42
31 3305-448 CLIP,MUDGUARD Price: $2.42
32 3307-168 MUDGUARD FR RH FOOTWELL Price: $15.66
33 3307-166 COVER RH TAIL LIGHT Price: $20.38
33 3307-167 COVER LH TAIL LIGHT Price: $20.38
34 3304-645 SCREW TAPPING 5*12 Price: $1.41
