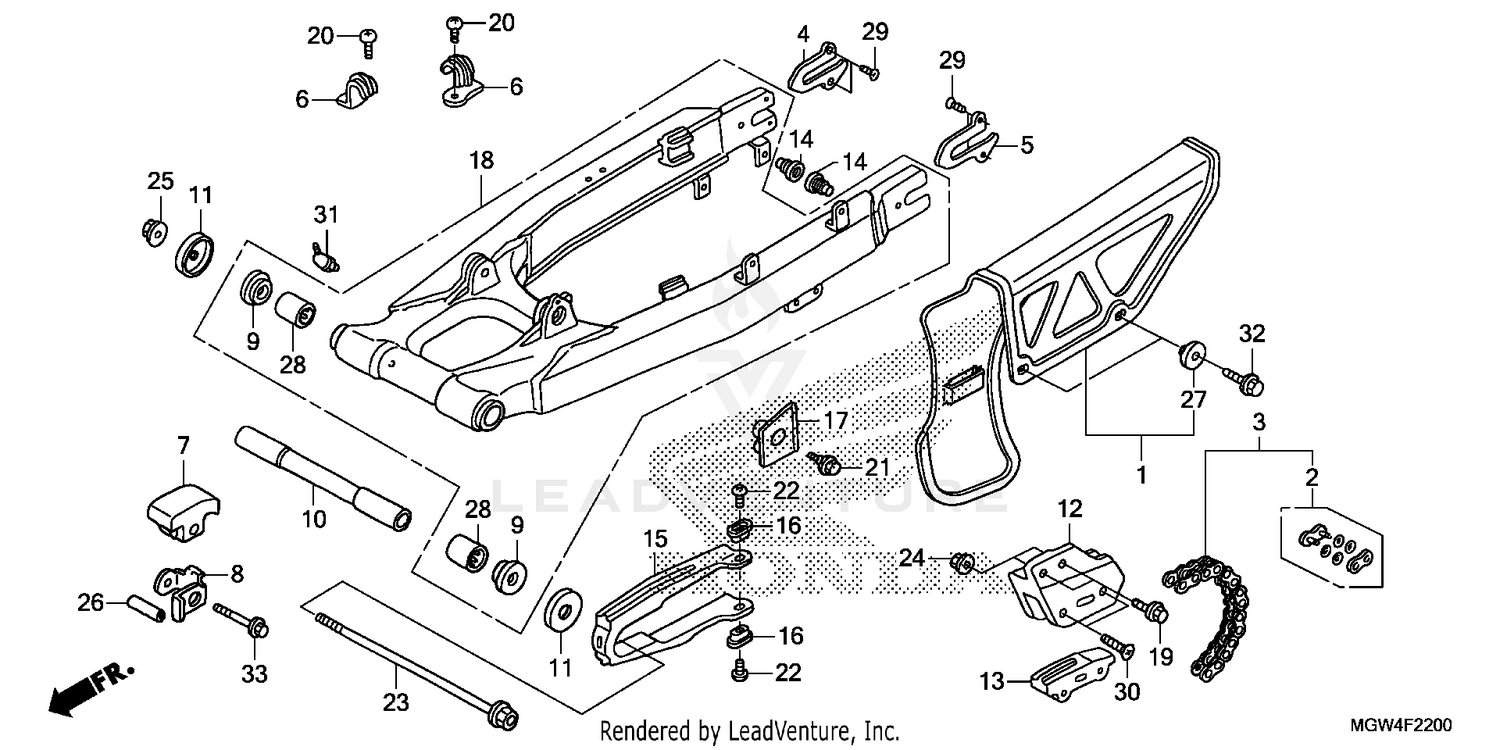

| Ref | Part Number | Description |
|---|
| 1 |
40510-KAE-870 |
CASE, DRIVE CHAIN Price: $51.91 |
| 2 |
40535-KV3-405 |
MASTER LINK SET (DAIDO) Price: $7.02 |
| 2 |
40535-KV3-406 |
MASTER LINK SET (RK EXCEL) Price: $5.65 |
| 3 |
40540-KV3-405 |
CHAIN, DRIVE (DID520V8-120ZB) (DAIDO) (STANDARD LINK 120L) (STANDARD LINK 110L) Price: $188.89 |
| 3 |
40540-KV3-406 |
CHAIN, DRIVE (RK EXCEL) (RK520MOZ6-120LJ-FZ) (STANDARD LINK 120L) (STANDARD LINK 110L) Price: $188.85 |
| 4 |
42307-MY6-670 |
WASHER, R. RR. SWINGARM Price: $37.73 |
| 5 |
42308-MY6-670 |
WASHER, L. RR. SWINGARM Price: $37.73 |
| 6 |
43468-KAE-000 |
GUIDE, RR. BRAKE HOSE Price: $6.85 |
| 7 |
50911-MN1-670 |
SLIPPER, CHAIN Price: $29.69 |
| 8 |
50912-MN1-670 |
STAY, CHAIN SLIPPER Price: $19.95 |
| 9 |
52109-430-300 |
BUSH, PIVOT THRUST Price: $19.40 |
| 10 |
52141-MN1-670 |
COLLAR, SWINGARM Price: $76.09 |
| 11 |
52144-356-005 |
CAP, SWINGARM DUST SEAL (NOK) Price: $20.98 |
| 12 |
52146-MN1-671 |
GUIDE, CHAIN Price: $41.25 |
| 13 |
52147-MN1-670 |
SLIDER, CHAIN GUIDE Price: $16.93 |
| 14 |
52156-KV6-000 |
PIN, CHAIN ADJUSTER Price: $12.93 |
| 15 |
52170-MN1-681 |
SLIDER, CHAIN Price: $69.89 |
| 16 |
52171-KR6-000 |
WASHER, CHAIN SLIDER Price: $2.95 |
| 17 |
52180-MY6-670 |
GUARD, CHAIN Price: $52.96 |
| 18 |
52200-MY6-305 |
SWINGARM SET Price: $1,153.82 |
| 19 |
90103-MY6-670 |
BOLT, FLANGE (6X16) Price: $4.69 |
| 20 |
90104-ML7-920 |
SCREW, PAN (5X10) Price: $3.55 |
| 21 |
90113-MY6-670 |
BOLT, FLANGE (6X10) Price: $4.69 |
| 22 |
90115-KV3-700 |
SCREW, PAN (5X8) Price: $2.98 |
| 23 |
90121-KK3-830 |
BOLT, SWINGARM PIVOT Price: $39.73 |
| 24 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 25 |
90305-GE8-003 |
NUT, U (14MM) Price: $4.85 |
| 26 |
90501-MN1-680 |
COLLAR, CHAIN SLIPPER Price: $4.62 |
| 27 |
90513-405-000 |
WASHER (6X9) Price: $2.51 |
| 28 |
91070-GC4-601 |
BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT Price: $29.96 |
| 29 |
93600-05010-0A |
SCREW, FLAT (5X10) Price: $0.82 |
| 30 |
93600-06045-0A |
SCREW, FLAT (6X45) Price: $1.07 |
| 31 |
96201-80000 |
FITTING, GREASE (B.76S) Price: $2.93 |
| 32 |
96300-06012-07 |
BOLT, FLANGE (6X12) Price: $1.47 |
