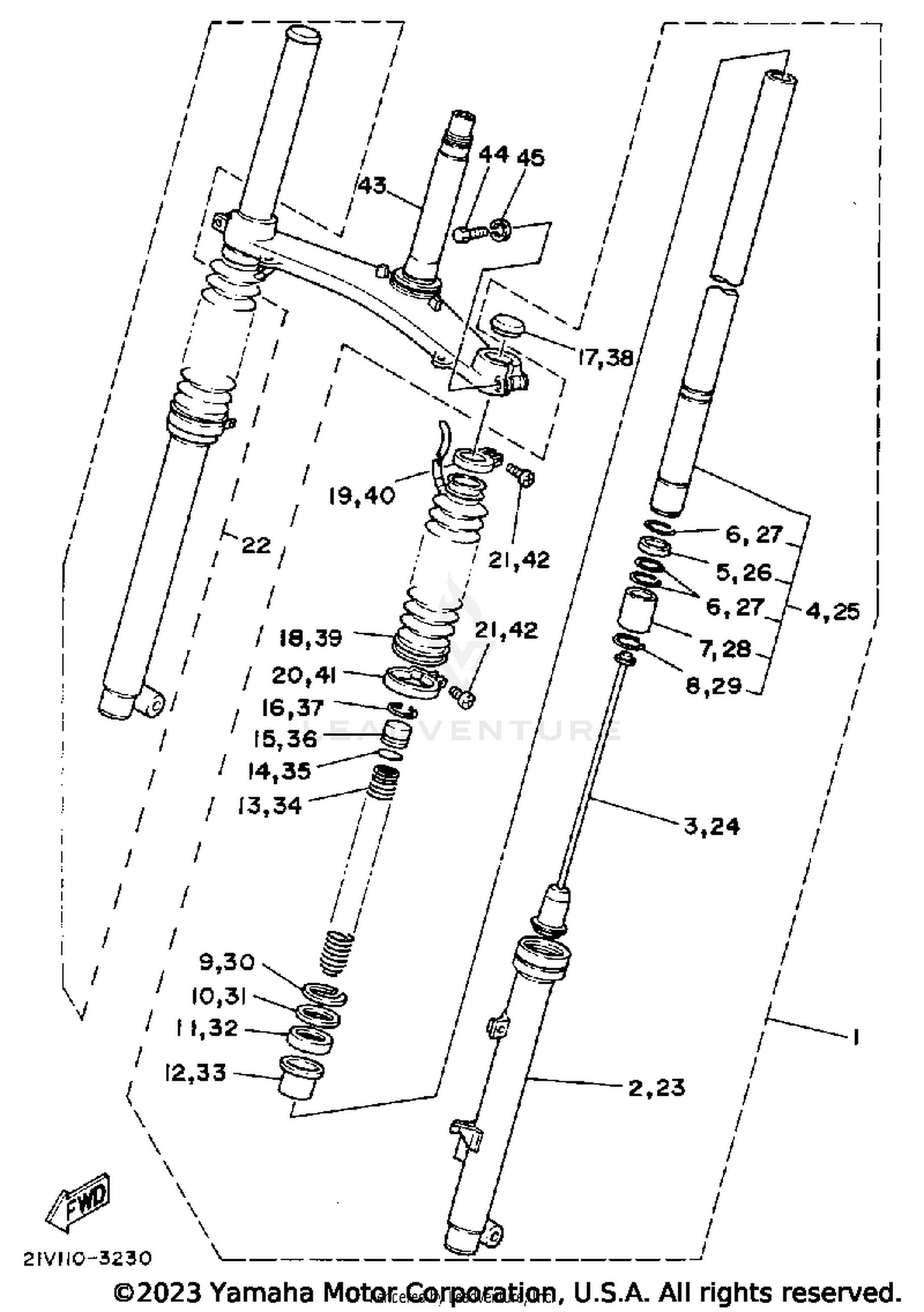

| Ref | Part Number | Description |
|---|
| 1 |
21V-23102-00-35 |
FRONT FORK ASY L Price: $329.99 |
| 3 |
21V-23170-00-00 |
CYLINDER,FRTFRK Price: $19.72 |
| 4 |
21V-23110-00-00 |
INNER TUBE 1 Price: $269.99 |
| 5 |
5H0-23113-00-00 |
COLLAR Price: $15.99 |
| 6 |
93440-29110-00 |
CIRCLIP,OUTER Price: $1.98 |
| 7 |
5H0-23189-00-00 |
FREE-PSTN, FRT FORKFRONT FORK Price: $12.49 |
| 8 |
93440-27091-00 |
CIRCLIP, OUTER Price: $4.60 |
| 9 |
99009-42500-00 |
CIRCLIP Price: $9.49 |
| 10 |
5H0-23146-00-00 |
WASHER, OIL SEAL Price: $2.20 |
| 11 |
93110-30013-00 |
OIL SEAL,SWO-TYPE Price: $29.99 |
| 12 |
5H0-23125-00-00 |
METAL, SLIDE 1 Price: $28.99 |
| 13 |
21V-23141-00-00 |
SPRING,FRONT FORK Price: $21.28 |
| 14 |
93210-21001-00 |
O-RING This part replaces 93210-21276-00. Price: $6.49 |
| 15 |
5H5-23111-00-00 |
BOLT,CAP Price: $19.49 |
| 16 |
93450-27071-00 |
CIRCLIP,INNER Price: $8.49 |
| 17 |
5H5-23154-00-00 |
PLUG,INNER TUBE Price: $11.99 |
| 18 |
21V-2312A-00-00 |
BOOT Price: $31.60 |
| 19 |
90460-52259-00 |
CLAMP,HOSE Price: $5.00 |
| 20 |
90460-35260-00 |
CLAMP,HOSE Price: $4.88 |
| 21 |
98517-04020-00 |
SCREW, PAN HEAD This part replaces 98506-04020-00. Price: $9.49 |
| 22 |
21V-23103-00-35 |
FRONT FORK ASY R Price: $329.99 |
| 24 |
21V-23170-00-00 |
CYLINDER,FRTFRK Price: $19.72 |
| 25 |
21V-23110-00-00 |
INNER TUBE 1 Price: $269.99 |
| 26 |
5H0-23113-00-00 |
COLLAR Price: $15.99 |
| 27 |
93440-29110-00 |
CIRCLIP,OUTER Price: $1.98 |
| 28 |
5H0-23189-00-00 |
FREE-PSTN, FRT FORKFRONT FORK Price: $12.49 |
| 29 |
93440-27091-00 |
CIRCLIP, OUTER Price: $4.60 |
| 30 |
99009-42500-00 |
CIRCLIP Price: $9.49 |
| 31 |
5H0-23146-00-00 |
WASHER, OIL SEAL Price: $2.20 |
| 32 |
93110-30013-00 |
OIL SEAL,SWO-TYPE Price: $29.99 |
| 33 |
5H0-23125-00-00 |
METAL, SLIDE 1 Price: $28.99 |
| 34 |
21V-23141-00-00 |
SPRING,FRONT FORK Price: $21.28 |
| 35 |
93210-21001-00 |
O-RING This part replaces 93210-21276-00. Price: $6.49 |
| 36 |
5H5-23111-00-00 |
BOLT,CAP Price: $19.49 |
| 37 |
93450-27071-00 |
CIRCLIP,INNER Price: $8.49 |
| 38 |
5H5-23154-00-00 |
PLUG,INNER TUBE Price: $11.99 |
| 39 |
21V-2312A-00-00 |
BOOT Price: $31.60 |
| 40 |
90460-52259-00 |
CLAMP,HOSE Price: $5.00 |
| 41 |
90460-35260-00 |
CLAMP,HOSE Price: $4.88 |
| 42 |
98517-04020-00 |
SCREW, PAN HEAD This part replaces 98506-04020-00. Price: $9.49 |
| 44 |
97070-10035-00 |
BOLT,WITH WASHER This part replaces 97023-10035-00. Price: $16.49 |
