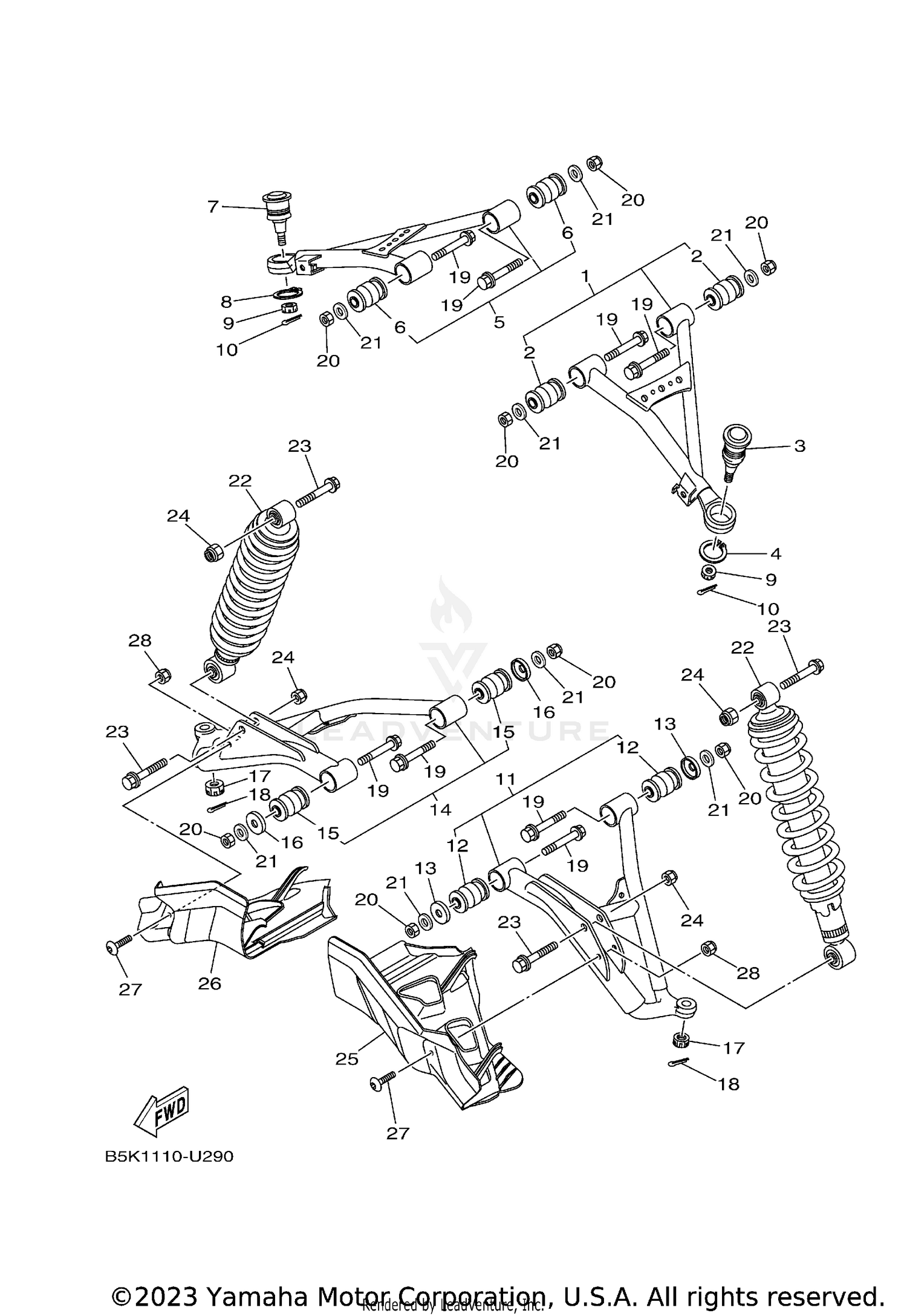

| Ref | Part Number | Description |
|---|
| 1 |
1HP-F3540-01-00 |
FRONT UPPER ARM CO Price: $66.99 |
| 2 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 3 |
3B4-23579-01-00 |
BALL JOINT 2 Price: $90.99 |
| 4 |
99009-30400-00 |
CIRCLIP Price: $9.49 |
| 5 |
1HP-F3550-01-00 |
FRONT UPPER ARM CO Price: $66.99 |
| 6 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 7 |
3B4-23579-01-00 |
BALL JOINT 2 Price: $90.99 |
| 8 |
99009-30400-00 |
CIRCLIP Price: $9.49 |
| 9 |
90171-12001-00 |
NUT, CASTLE Price: $3.55 |
| 10 |
91490-25020-00 |
PIN. COTTER Price: $3.45 |
| 11 |
1HP-F3570-11-00 |
FRONT LOWER ARM CO Price: $74.99 |
| 12 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 13 |
5KM-22149-10-00 |
WASHER Price: $8.49 |
| 14 |
1HP-F3580-11-00 |
FRONT LOWER ARM CO Price: $85.99 |
| 15 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 16 |
5KM-22149-10-00 |
WASHER Price: $8.49 |
| 17 |
90171-12001-00 |
NUT, CASTLE Price: $3.55 |
| 18 |
91490-25020-00 |
PIN. COTTER Price: $3.45 |
| 19 |
90105-10484-00 |
BOLT, FLANGE Price: $6.49 |
| 20 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 21 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 22 |
2SM-F3350-00-00 |
SHOCK ABSORBER ASSY Price: $196.99 |
| 23 |
90105-10131-00 |
BOLT, FLANGE Price: $6.49 |
| 24 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 25 |
1HP-F3123-01-00 |
COVER, UNDER 1 This part replaces 1HP-F3123-00-00. Price: $43.99 |
| 26 |
1HP-F3133-01-00 |
COVER, UNDER 2 This part replaces 1HP-F3133-00-00. Price: $43.99 |
| 27 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
