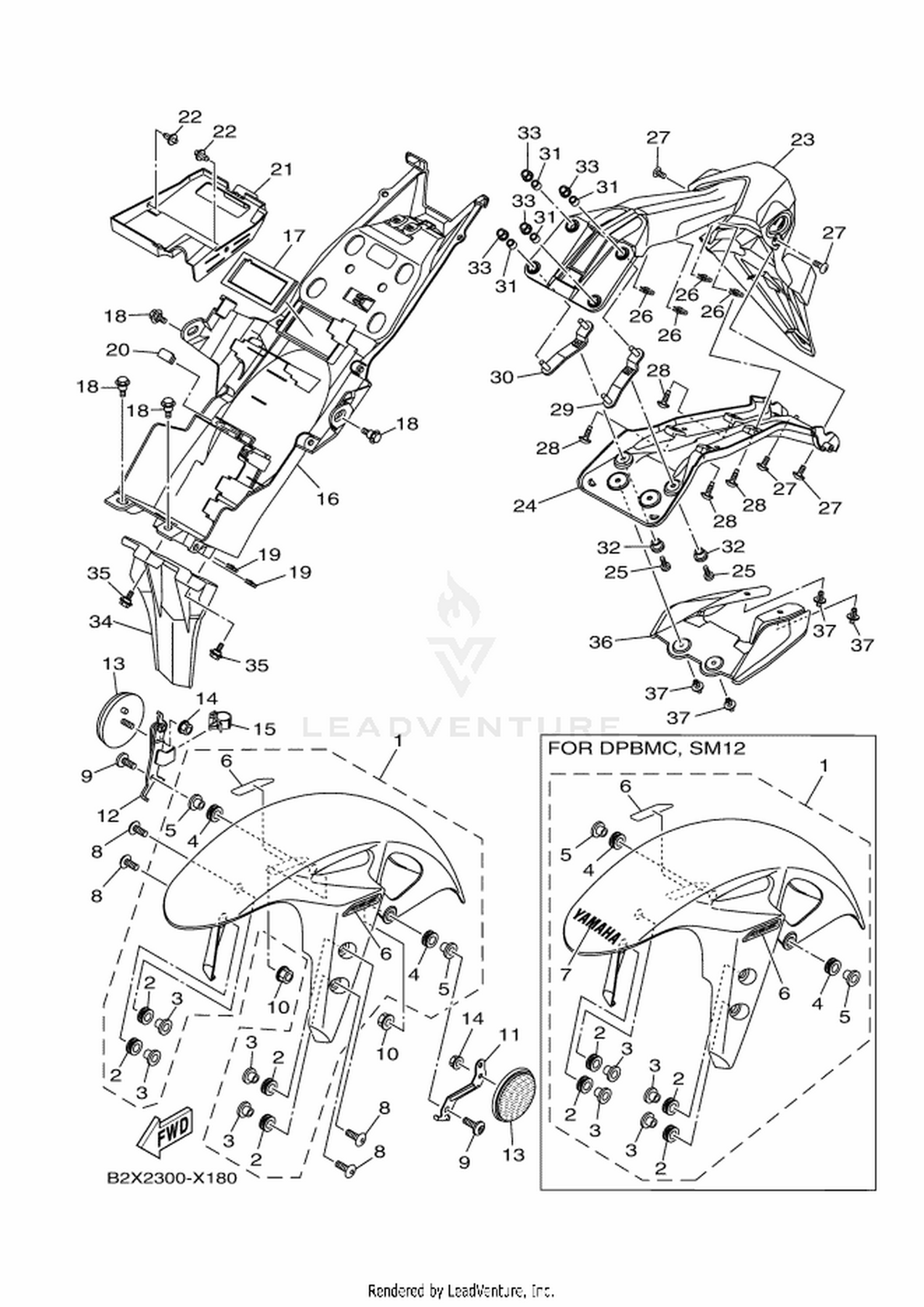

| Ref | Part Number | Description |
|---|
| 8 |
90111-06137 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 9 |
90111-06847 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 10 |
95702-06500 |
NUT, WITH WASHER Price: Call Us |
| 11 |
B5L-F113J-00 |
BRACKET, REFLECTOR 1 Price: Call Us |
| 12 |
B5L-F113K-01 |
BRACKET, REFLECTOR 2 Price: Call Us |
| 13 |
2FC-H5111-00 |
REFLECTOR, FRONT 1 Price: Call Us |
| 15 |
90464-16006 |
CLAMP Price: Call Us |
| 16 |
BR5-F1611-01 |
FENDER, REAR Price: Call Us |
| 17 |
1WD-F1669-00 |
SEAL Price: Call Us |
| 18 |
90109-063F1 |
BOLT Price: Call Us |
| 19 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 20 |
1WD-F16A2-00 |
SEAL, 2 Price: Call Us |
| 21 |
BR5-F163E-01 |
COVER, REAR FENDER 2 Price: Call Us |
| 22 |
90269-06816 |
RIVET Price: Call Us |
| 23 |
B1X-F1629-00 |
GUARD, MUD Price: Call Us |
| 24 |
1WD-F1617-01 |
BRACKET, FENDER Price: Call Us |
| 25 |
90111-05021 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 26 |
90183-050A7 |
NUT, SPRING Price: Call Us |
| 27 |
97707-50016 |
SCREW, TRUSS HEAD TAPPING Price: Call Us |
| 28 |
90111-05018 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 29 |
1WD-F1688-00 |
BRACKET, REAR STAY Price: Call Us |
| 30 |
1WD-F1689-00 |
BRACKET, REAR STAY 2 Price: Call Us |
| 31 |
90387-066J9 |
COLLAR Price: Call Us |
| 32 |
90387-068L9 |
COLLAR Price: Call Us |
| 33 |
95602-06200 |
NUT, SELF-LOCKING Price: Call Us |
| 34 |
1WD-F1621-01 |
FLAP Price: Call Us |
| 35 |
90109-05003 |
BOLT Price: Call Us |
| 36 |
1WD-F163A-00 |
COVER, REAR FENDER 1 Price: Call Us |
