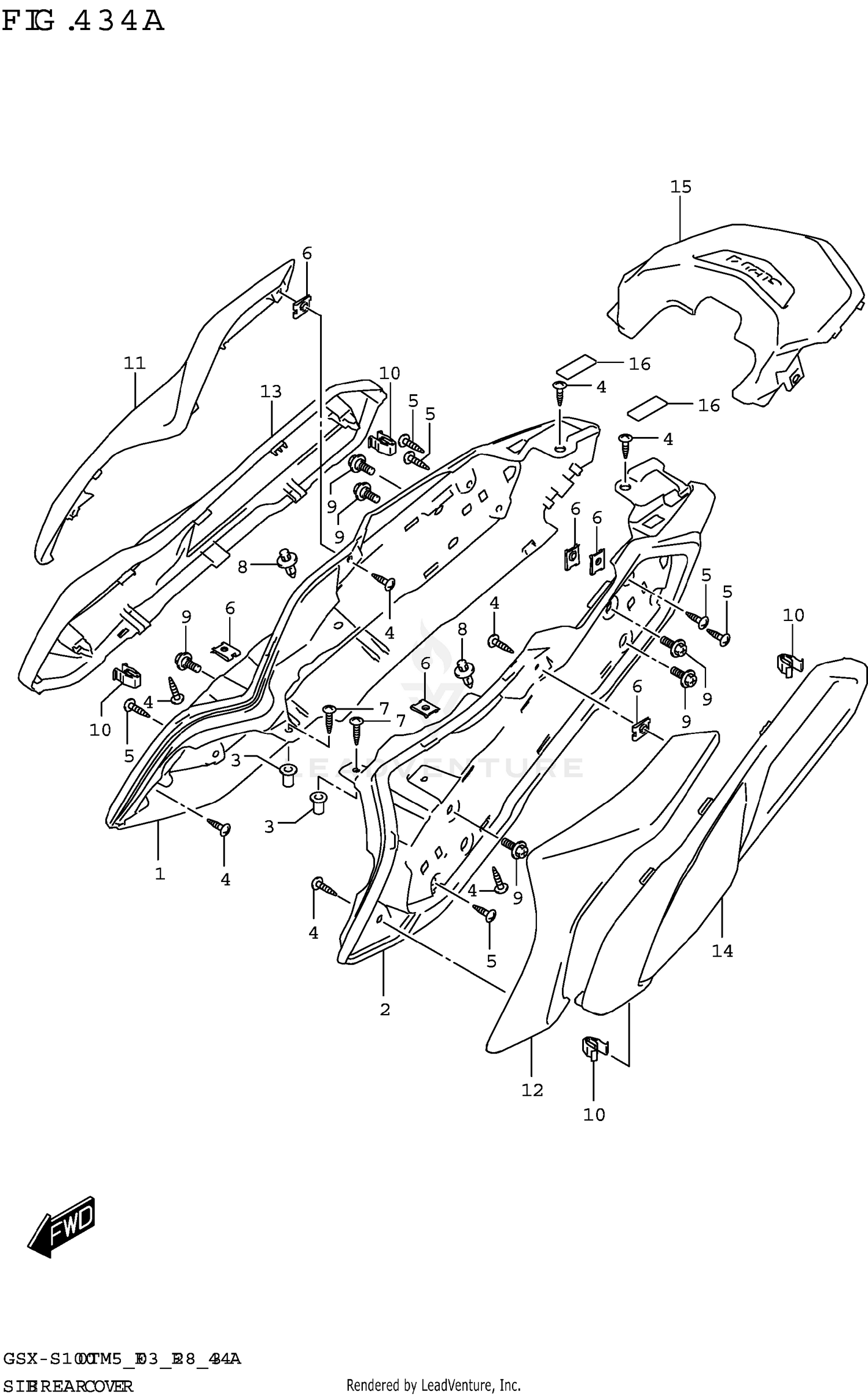

SIDE REAR COVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47131-48K10 | COVER,FRAME RR LWR,R Price: $51.44 |
| 2 | 47231-48K10 | COVER,FRAME RR LWR LH Price: $51.44 |
| 3 | 09159-05019 | NUT (M5) Price: $8.69 |
| 4 | 03541-0512B | SCREW Price: $2.15 |
| 5 | 03541-0516A | SCREW Price: $1.65 |
| 6 | 09148-05038 | NUT (M5) Price: $2.37 |
| 7 | 02142-1520B | SCREW Price: $2.73 |
| 8 | 09409-08308 | CLIP (7.6X25.7) Price: $2.79 |
| 9 | 09111-06262 | BOLT (6X13.5) Price: $1.41 |
| 10 | 09409-08326 | CLIP (10.5X14.3) Price: $2.87 |
| 13 | 47511-48K00 | COVER,FRAME REAR,R Price: $30.66 |
| 14 | 47611-48K00 | COVER,FRAME REAR,L Price: $30.66 |
| 15 | 47311-48K10 | COVER,FRAME CENTER Price: $39.12 |
