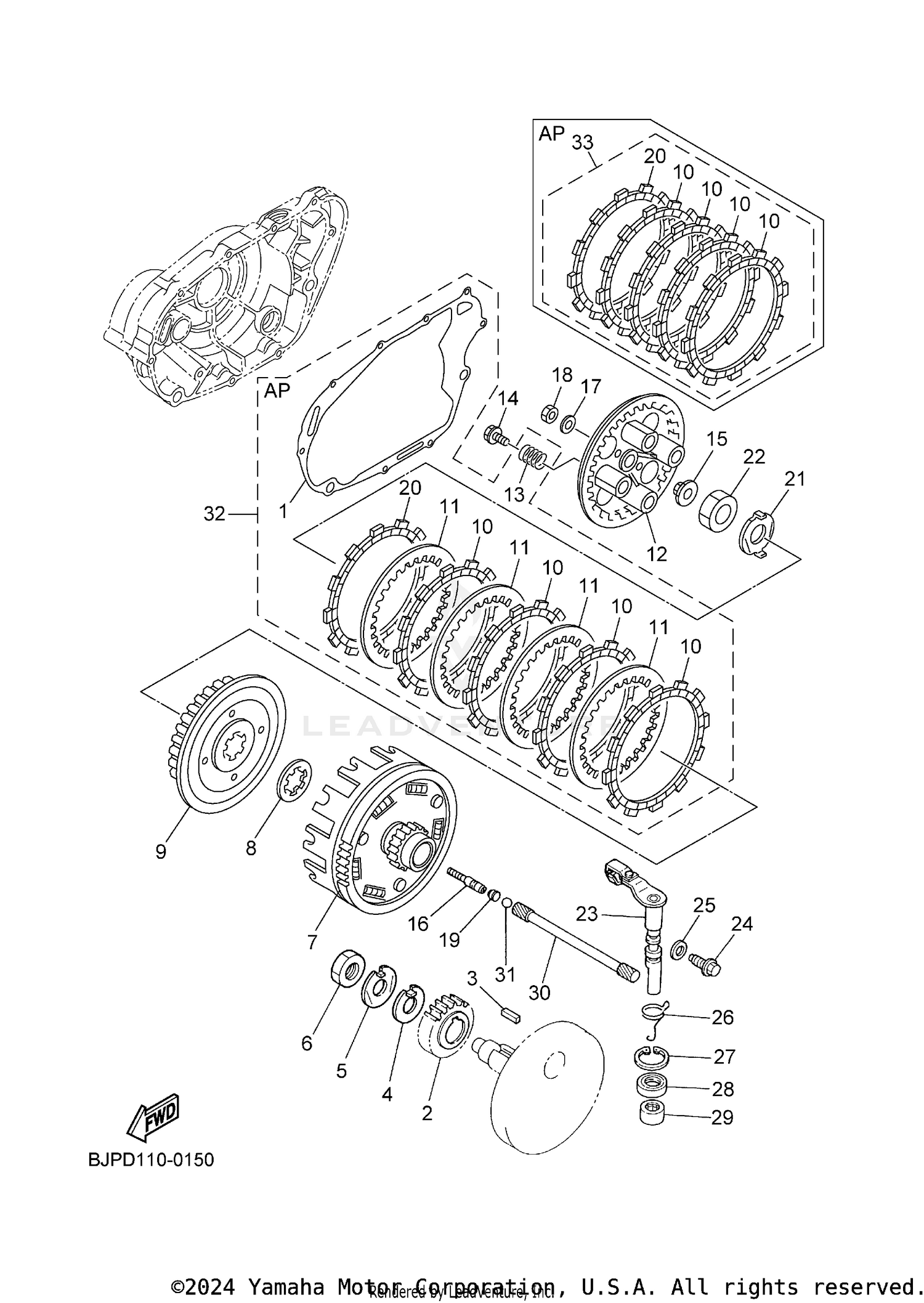

| Ref | Part Number | Description |
|---|
| 1 |
4RF-15461-01-00 |
GASKET, CRANKCASE COVER 2 Price: $28.99 |
| 2 |
3Y6-16111-03-00 |
GEAR, PRIMARY DRIVE (23T) Price: $32.99 |
| 3 |
90282-07023-00 |
KEY, STRAIGHT Price: $10.49 |
| 4 |
90215-16156-00 |
WASHER, LOCK Price: $8.49 |
| 5 |
90215-16222-00 |
WASHER, LOCK Price: $10.49 |
| 6 |
90170-16343-00 |
NUT This part replaces 90170-16256-00. Price: $16.49 |
| 7 |
2UJ-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $355.99 |
| 8 |
30X-16154-00-00 |
PLATE, THRUST 1 Price: $28.99 |
| 9 |
30X-16371-00-00 |
BOSS, CLUTCH Price: $154.99 |
| 10 |
5Y1-16331-01-00 |
PLATE, FRICTION 2 Price: $32.99 |
| 11 |
3J2-16324-10-00 |
PLATE, CLUTCH 1 Price: $11.99 |
| 12 |
30X-16351-02-00 |
PLATE, PRESSURE 1 Price: $87.99 |
| 13 |
90501-26148-00 |
SPRING, COMPRESSION Price: $5.49 |
| 14 |
90159-06016-00 |
SCREW, WITH WASHER Price: $3.65 |
| 15 |
1W1-16358-01-00 |
PLATE, PUSH Price: $25.99 |
| 16 |
4DN-16356-00-00 |
ROD, PUSH 1 Price: $31.99 |
| 17 |
92907-06200-00 |
WASHER Price: $9.49 |
| 18 |
95317-06600-00 |
NUT This part replaces 95307-06600-00. Price: $3.85 |
| 19 |
3YX-1635A-00-00 |
SEAL, ROD PUSH Price: $17.99 |
| 20 |
4H7-16321-02-00 |
PLATE, FRICTION This part replaces 31A-16321-01-00. Price: $25.99 |
| 21 |
90215-16320-00 |
WASHER, LOCK Price: $13.49 |
| 22 |
90170-16326-00 |
NUT Price: $14.49 |
| 23 |
2UJ-16380-00-00 |
PUSH LEVER ASSEMBLY Price: $47.99 |
| 24 |
90149-08067-00 |
SCREW Price: $6.49 |
| 25 |
90430-08119-00 |
GASKET Price: $7.49 |
| 26 |
90508-14433-00 |
SPRING, TORSION Price: $8.49 |
| 27 |
93420-28055-00 |
CIRCLIP Price: $10.49 |
| 28 |
93102-14209-00 |
OIL SEAL, SD TYPE Price: $12.49 |
| 29 |
93315-31428-00 |
BEARING Price: $38.99 |
| 30 |
2UJ-16357-00-00 |
ROD, PUSH 2 Price: $19.99 |
| 31 |
93511-32027-00 |
BALL This part replaces 93511-32017-00. Price: $9.49 |
