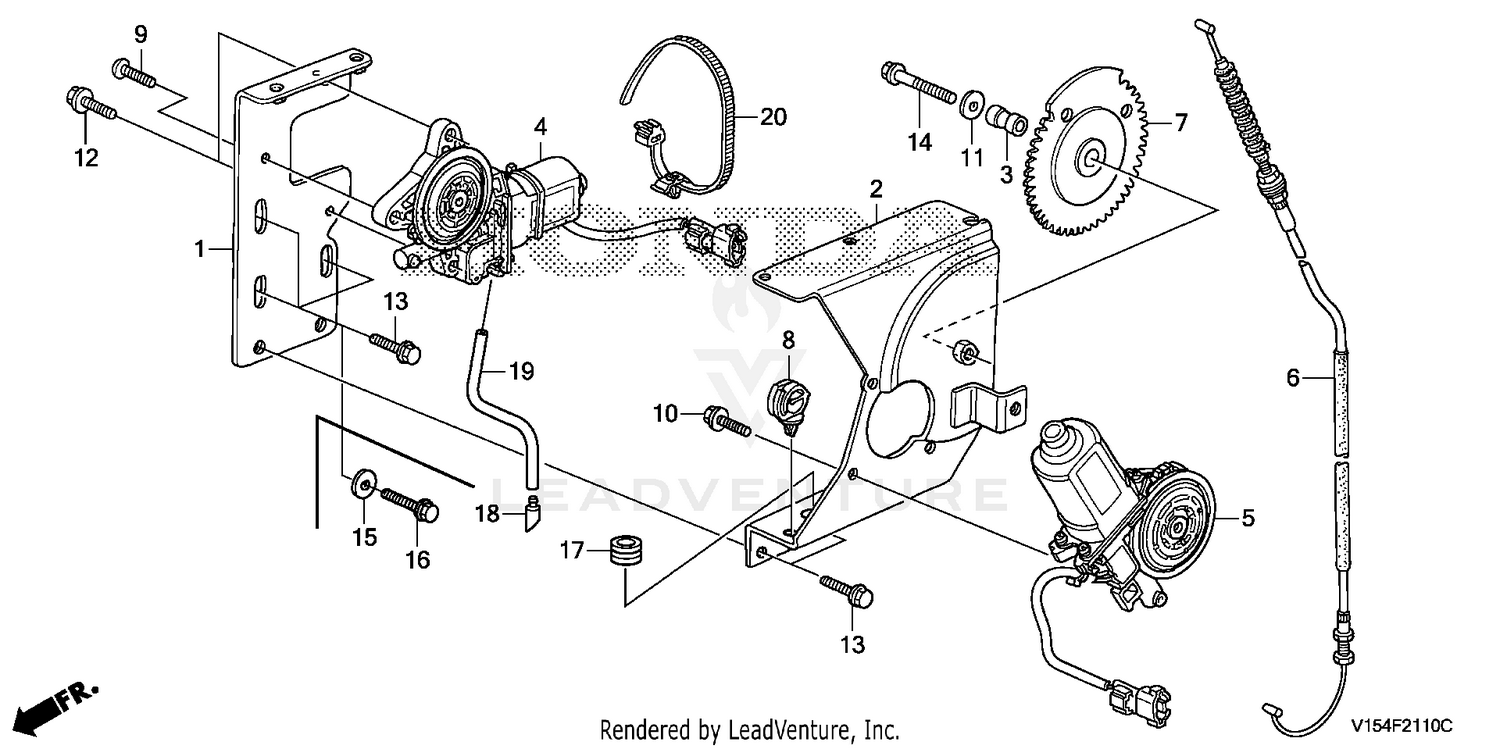

| Ref | Part Number | Description |
|---|
| 1 |
31350-V15-010 |
BRACKET, CHUTE MOTOR Price: $33.02 |
| 2 |
31361-V15-020 |
BRACKET, CHUTE GUIDE MOTOR Price: $45.66 |
| 3 |
31362-797-000 |
COLLAR, CLUTCH GUIDE GEAR Price: $5.30 |
| 4 |
36110-V15-013 |
MOTOR ASSY., CHUTE Price: $177.60 |
| 5 |
36115-V15-003 |
MOTOR ASSY., CHUTE GUIDE Price: $260.62 |
| 6 |
54580-V15-000 |
CABLE, CHUTE GUIDE Price: $32.84 |
| 7 |
54584-766-000 |
GEAR, CHUTE GUIDE MOTOR Price: $32.36 |
| 8 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 9 |
93500-06012-0A |
SEE PART DETAILS - PRI; SCREW, PAN (6X12) Price: $1.24 |
| 10 |
90105-V21-000 |
SCREW, TAPPING (5X14) Price: $1.68 |
| 11 |
94103-06000 |
WASHER, PLAIN (6MM) (Honda Code 0450122). Price: $1.24 |
| 12 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 13 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 14 |
95701-06030-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X30) (Honda Code 2401222). Price: $2.36 |
| 15 |
94103-06000 |
WASHER, PLAIN (6MM) (Honda Code 0450122). Price: $1.24 |
| 16 |
95701-06016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820. Price: $2.04 |
| 17 |
33606-GBZ-000 |
RUBBER, TURN SIGNAL BOLT MOUNTING (NOT AVAILABLE) Price: $2.96 |
| 18 |
38426-Z1E-H00 |
BELL, MOUTH Price: $7.88 |
| 19 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X75) Price: $12.54 |
