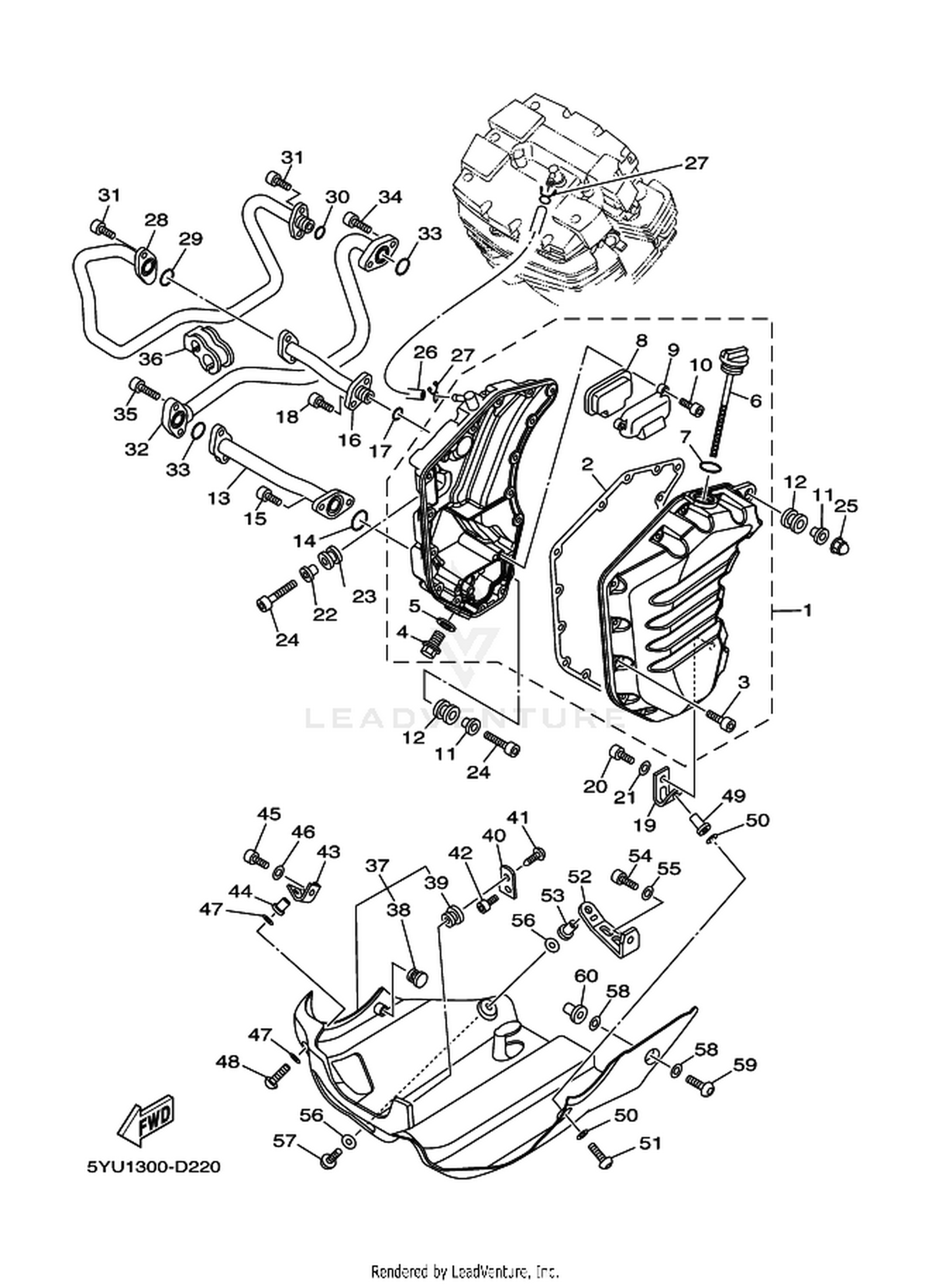

22 OIL TANK

22 OIL TANK

Parts (48)

RefPart NumberDescription
1 5YU-21750-00 OIL TANK ASSY Price: Call Us
3 91314-06030 BOLT, HEXAGON SOCKET HEAD Price: Call Us
4 90340-14132 PLUG, STRAIGHT SCREW Price: Call Us
5 214-11198-01 GASKET Price: Call Us
7 93210-27370 O-RING Price: Call Us
10 91317-06016 BOLT Price: Call Us
11 90387-06100 COLLAR Price: Call Us
12 90480-14010 GROMMET Price: Call Us
13 5YU-13464-00 HOSE, OIL 1 Price: Call Us
14 93210-23326 O-RING Price: Call Us
15 91314-06020 BOLT Price: Call Us
16 5YU-13465-00 HOSE, OIL 2 Price: Call Us
18 91314-06020 BOLT Price: Call Us
19 5YU-2836A-00 BRACKET 1 Price: Call Us
20 91317-06010 BOLT,HEX.SOCKET HEAD Price: Call Us
21 92907-06200 WASHER Price: Call Us
22 90387-06100 COLLAR Price: Call Us
23 90480-14010 GROMMET Price: Call Us
24 91314-06030 BOLT, HEXAGON SOCKET HEAD Price: Call Us
25 90176-06041 NUT, CROWN Price: Call Us
26 90445-11748 HOSE (L410) Price: Call Us
27 90467-10008 CLIP Price: Call Us
28 5YU-13416-00 PIPE, OIL 1 Price: Call Us
29 93210-19522 O-RING Price: Call Us
31 91314-06016 BOLT, HEXAGON SOCKET HEAD Price: Call Us
32 5YU-13418-00 PIPE, OIL 2 Price: Call Us
33 93210-19522 O-RING Price: Call Us
34 91314-06020 BOLT Price: Call Us
35 91314-06016 BOLT, HEXAGON SOCKET HEAD Price: Call Us
36 5YU-13159-00 DAMPER Price: Call Us
38 90338-10132 PLUG Price: Call Us
39 90480-12072 GROMMET Price: Call Us
40 5YU-28321-00 STAY 1 Price: Call Us
41 90338-08220 PLUG Price: Call Us
42 91314-06010 BOLT, HEXAGON SOCKET HEAD Price: Call Us
43 5YU-28322-00 STAY 2 Price: Call Us
44 90179-05523 NUT Price: Call Us
45 91317-06014 BOLT Price: Call Us
46 92907-06200 WASHER Price: Call Us
48 90149-05299 SCREW Price: Call Us
49 90179-05523 NUT Price: Call Us
51 90149-05299 SCREW Price: Call Us
52 5YU-2836E-00 BRACKET 2 Price: Call Us
53 90179-05523 NUT Price: Call Us
54 91317-06014 BOLT Price: Call Us
55 92907-06200 WASHER Price: Call Us
57 90149-05299 SCREW Price: Call Us
59 90149-05244 SCREW Price: Call Us
