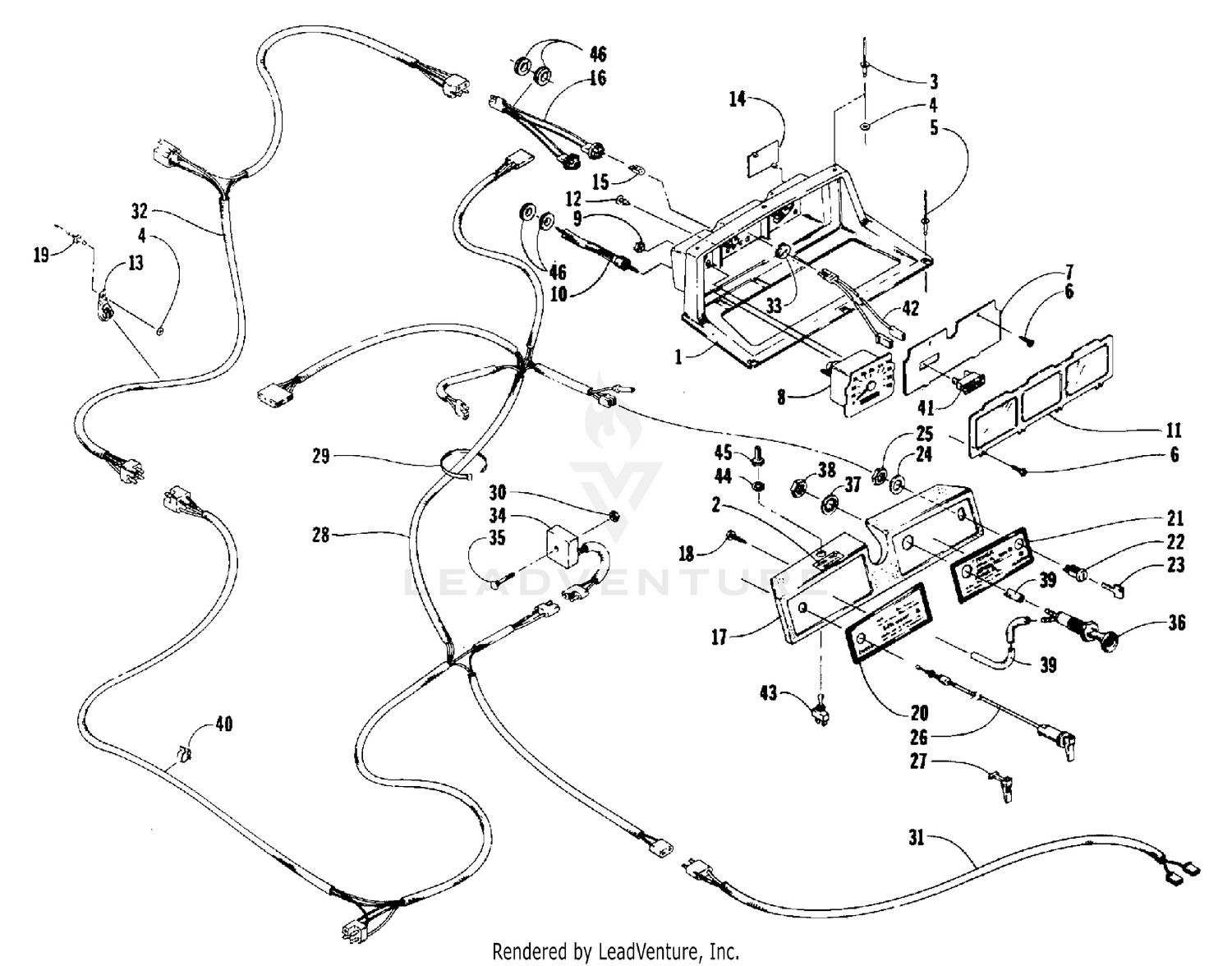

CONSOLE AND WIRING ASSEMBLIES [55215]

Parts (41)

Ref	Part Number	Description
1	0117-475	Panel, Instrument Price: $14.95
2	0611-284	DECAL, HANDWARMER Price: $4.95
3	8060-426	Rivet, Blind-DH AA54 BLK Price: $0.24
4	0123-149	Washer, Flat Price: $2.26
5	8060-424	RIVET,BLIND-DH AA53 BLK Price: $0.69
6	0123-950	Screw, Self-Tapping Price: $0.35
7	0120-353	ADAPTOR DRIVE-SPEEDOMETER Price: $113.95
8	0620-015	SPEEDOMETER HEAD Price: $118.95
9	0123-700	Nut Price: $0.15
10	0120-700	CABLE, SPEEDOMETER Price: $90.95
11	0117-557	LENS, INST. PANEL Price: $28.95
12	0123-995	Rivet, Push Price: $1.09
13	1623-984	Clamp, Routing Price: $7.08
14	0115-530	Plate, Cover Price: $3.04
15	0230-020	Bulb Price: $3.38
16	0609-023	SOCKET, ASSEMBLY Price: $30.95
17	0706-140	CONSOLE Price: $9.95
18	0623-057	Screw, Self-Tapping Price: $0.19
19	8060-430	RIVET,BLIND-DH AA58 BLK Price: $0.39
20	0611-055	DECAL, CONSOLE -LEFT Price: $12.95
21	0611-303	DECAL, CONSOLE - RIGHT Price: $6.95
22	0709-027	Switch, Ignition - Assembly Price: $21.37
23	0609-412	Key, Ignition Switch Price: $21.77
24	0123-899	Washer Price: $1.08
25	0123-900	Nut, Ignition Price: $1.09
26	0687-003	CABLE,CHOKE-SINGLE Price: $69.07
27	0636-062	Choke Lever Kit Price: $13.28
28	0686-009	HARNESS, MAIN IGNTION Price: $44.95
28	0686-023	HARNESS, MAIN IGNITION Price: $89.95
29	0123-788	Tie, Cable - 8 in Price: $0.23
30	8041-366	Nut, Lock Price: $0.35
31	0115-458	Harness, Taillight Price: $5.60
32	0686-008	Harness, Headlight Price: $36.95
33	0620-027	GROMMET Price: $0.79
34	0630-001	Regulator, Voltage Price: $70.95
35	0123-697	Bolt Price: $0.99
40	0123-394	Clip, Cable Price: $4.63
43	0609-903	SWITCH,TOGGLE-SPDT Price: $30.95
44	0123-985	Washer, Internal Tooth Lock Price: $3.38
45	0123-983	Nut, Toggle Switch Price: $3.59
46	0620-026	Grommet Price: $1.79
