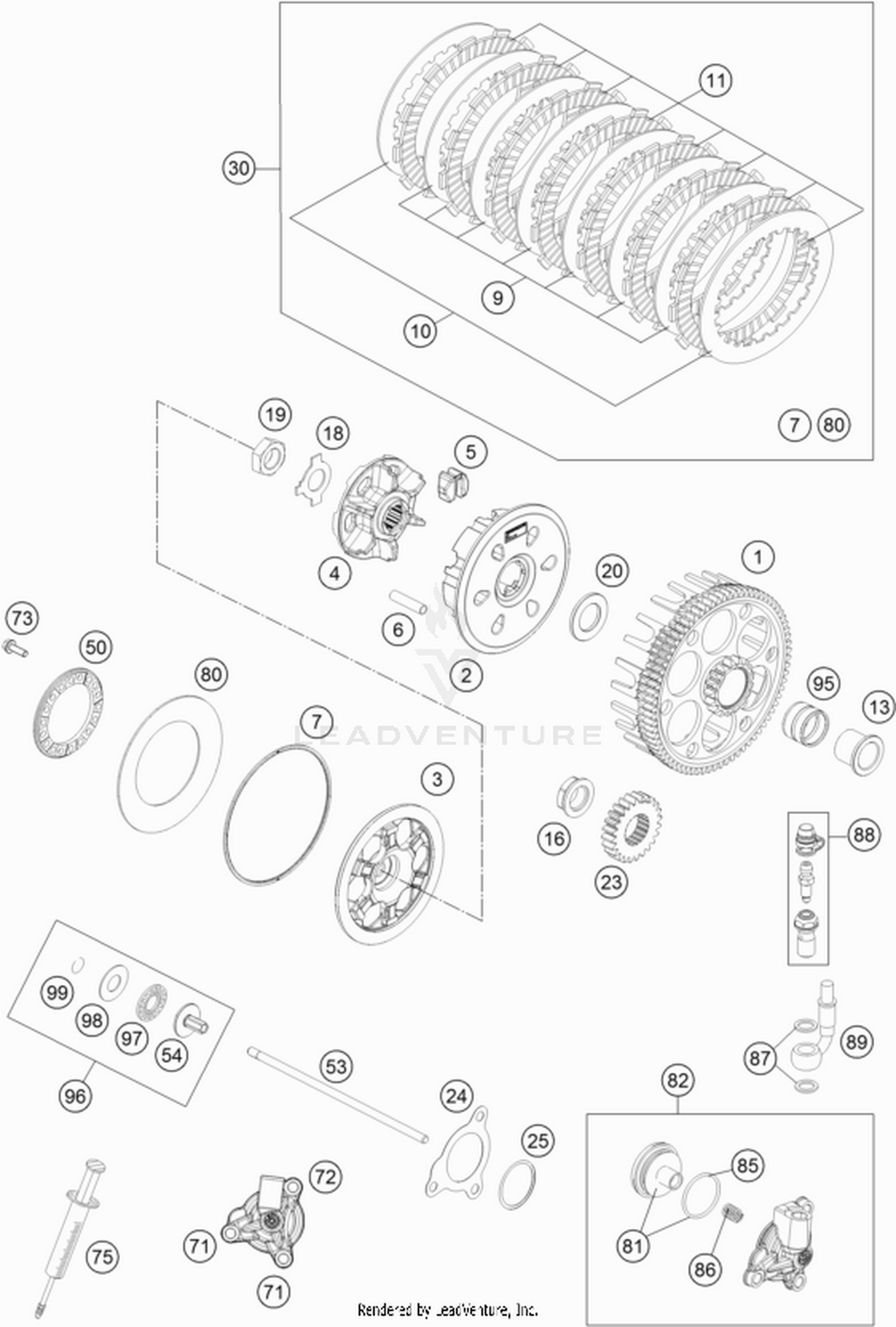

| Ref | Part Number | Description |
|---|
| 1 |
77232001173 |
OUTER CLUTCH HUB Price: Call Us |
| 2 |
78132002244 |
Set inner clutch hub This part replaces 78132002200. Price: Call Us |
| 3 |
78132003110 |
Repair Kit Pressure Plate This part replaces 78132003100. Price: Call Us |
| 4 |
78132002244 |
Set inner clutch hub This part replaces 78132002111. Price: Call Us |
| 5 |
78132025100 |
DAMPING RUBBER Price: Call Us |
| 6 |
78132004000 |
SLEEVE 7,5X33.4 Price: Call Us |
| 7 |
78132013000 |
WASHER 112X118X1.5 Price: Call Us |
| 9 |
59032010200 |
INTERMEDIATE DISC 1,4MM 2002 Price: Call Us |
| 10 |
59032010100 |
INTERMEDIATE DISC 1MM 2002 Price: Call Us |
| 11 |
79532011000 |
Lining disc 1,95mm This part replaces 59032011100. Price: Call Us |
| 16 |
0910001801001S |
Nut M18x1.5 Precote LH thread This part replaces 77230029000. Price: Call Us |
| 18 |
56532018000 |
LOCK WASHER Price: Call Us |
| 19 |
0936181505 |
HEXAGON NUT DIN0936-M18X1,5 R. Price: Call Us |
| 20 |
77232009000 |
WASHER 21,8 X 37 X 5,1 Price: Call Us |
| 23 |
77232023024 |
PRIMARY GEAR 24T. Price: Call Us |
| 24 |
77232062000 |
GASKET F. OUTPUT CYLINDER Price: Call Us |
| 25 |
0770300015 |
O-ring 30x1.5 NBR 70 Price: Call Us |
| 30 |
78132010110 |
CLUTCH KIT 350 EXC-F 12-15 Price: Call Us |
| 50 |
78132006200 |
Spring retainer This part replaces 78132006100. Price: Call Us |
| 53 |
77232054000 |
PUSH ROD Price: Call Us |
| 54 |
78032057044 |
PRESSURE PIECE CPL. 08 This part replaces 78032057000. Price: Call Us |
| 71 |
0025060166 |
HH collar screw M6x16 TX30 Price: Call Us |
| 72 |
0025060356 |
HH collar screw M6x35 TX30 Price: Call Us |
| 73 |
0025050166 |
HH collar screw M5x16 TX30 Price: Call Us |
| 75 |
50329050000 |
VENT INJEKTION HYDR. CLUTCH Price: Call Us |
| 80 |
78132005000 |
BELLEVILLE SPRING 71X115X1,5 I Price: Call Us |
| 81 |
77232066000 |
PISTON CPL. Price: Call Us |
| 82 |
77232061044 |
OUTPUT CYLINDER CPL. Price: Call Us |
| 85 |
54832067000 |
O-RING Price: Call Us |
| 86 |
54832069000 |
PRESSURE SPRING Price: Call Us |
| 87 |
42013226000 |
CU-SEAL RING DIN7603-10X16X1 Price: Call Us |
| 88 |
62513020000 |
BLEEDER SCREW CPL. 05 Price: Call Us |
| 89 |
54832063000 |
CLUTCH PIPE 06 Price: Call Us |
| 95 |
56532095000 |
NEEDLE BEARING K26X30X22ZW.KSE Price: Call Us |
| 96 |
78032057044 |
PRESSURE PIECE CPL. 08 Price: Call Us |
| 97 |
54637097200 |
AXIAL NEEDLE BEARING AXK 1226 Price: Call Us |
| 98 |
54637098200 |
AXIAL WASHER AS1226 12X26X1 Price: Call Us |
