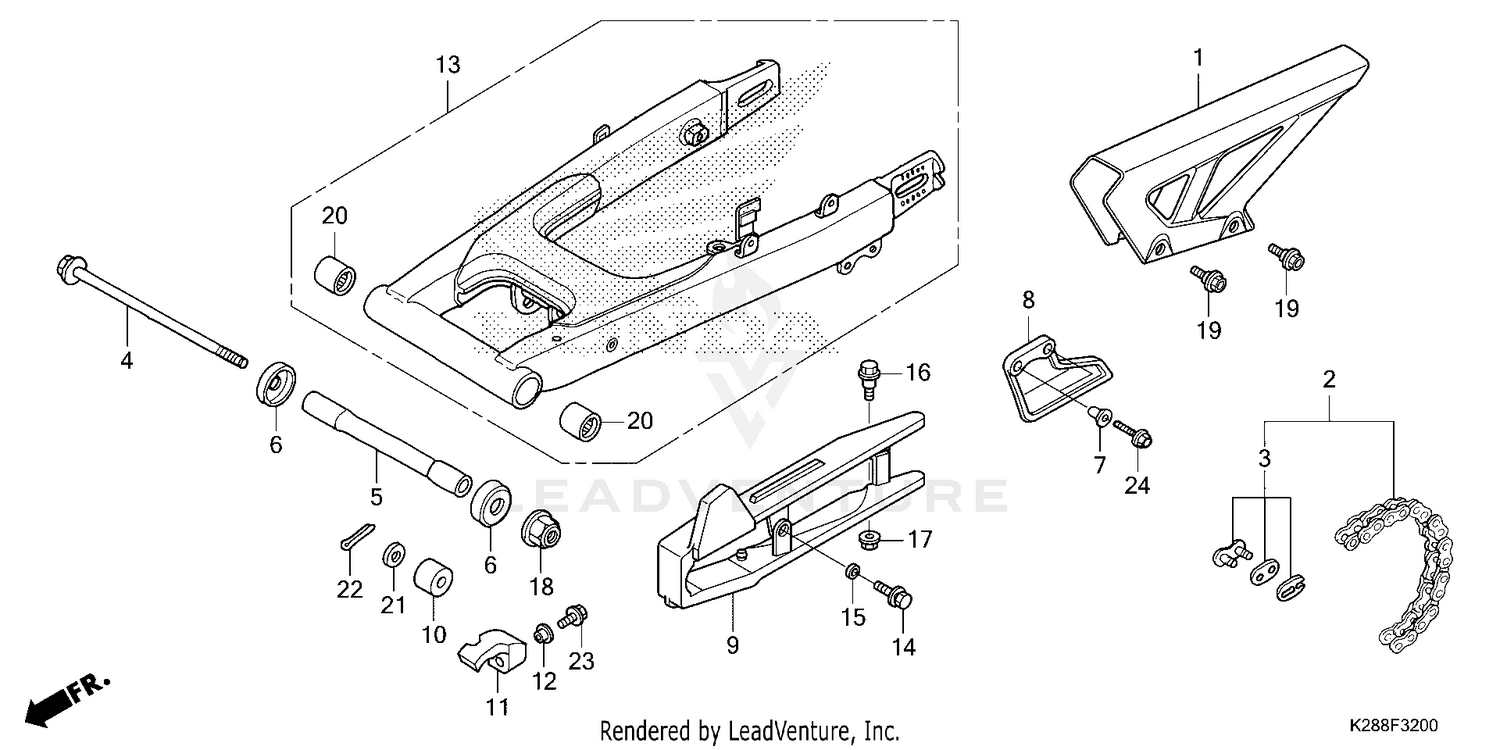

| Ref | Part Number | Description |
|---|
| 1 |
40510-K28-910 |
CASE, DRIVE CHAIN Price: $33.42 |
| 2 |
40530-KSJ-003 |
CHAIN, DRIVE (DID428HD-118RB) (DAIDO) Price: $75.27 |
| 3 |
40531-355-013 |
MASTER LINK (DAIDO) Price: $5.20 |
| 4 |
52101-K28-910 |
BOLT, SWINGARM PIVOT Price: $21.11 |
| 5 |
52141-K28-910 |
COLLAR, SWINGARM Price: $38.73 |
| 6 |
52144-GF5-003 |
DUST SEAL (31X38.5X7) (NOK) Price: $12.64 |
| 7 |
52157-K28-910 |
COLLAR, CHAIN GUARD Price: $3.54 |
| 8 |
52160-K28-910 |
GUARD, CHAIN Price: $23.65 |
| 9 |
52170-K28-910 |
SLIDER, CHAIN Price: $80.55 |
| 10 |
52175-K28-910 |
ROLLER, CHAIN (UPPER) Price: $8.16 |
| 11 |
52185-K28-910 |
SLIDER, CHAIN (LOWER) Price: $15.31 |
| 12 |
52186-K28-910 |
WASHER (6MM) Price: $2.78 |
| 13 |
52200-K28-920 |
SWINGARM SUB-ASSY., RR. Price: $363.44 |
| 14 |
90107-K28-910 |
BOLT-WASHER (5X16) Price: $2.78 |
| 15 |
90108-K28-910 |
COLLAR (10.5X5.3X3) Price: $5.44 |
| 16 |
90113-KYK-910 |
BOLT, FLANGE (6X20) Price: $3.95 |
| 17 |
90302-KYA-601 |
NUT, FLANGE (6MM) (PT) Price: $2.55 |
| 18 |
90306-KYA-601 |
NUT, FLANGE (12MM) (PT) Price: $3.45 |
| 19 |
90653-KYK-910 |
BOLT, SPECIAL (6MM) Price: $3.28 |
| 20 |
91070-GC4-601 |
BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT Price: $29.96 |
| 21 |
94102-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 22 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 23 |
95701-06012-07 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 24 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
