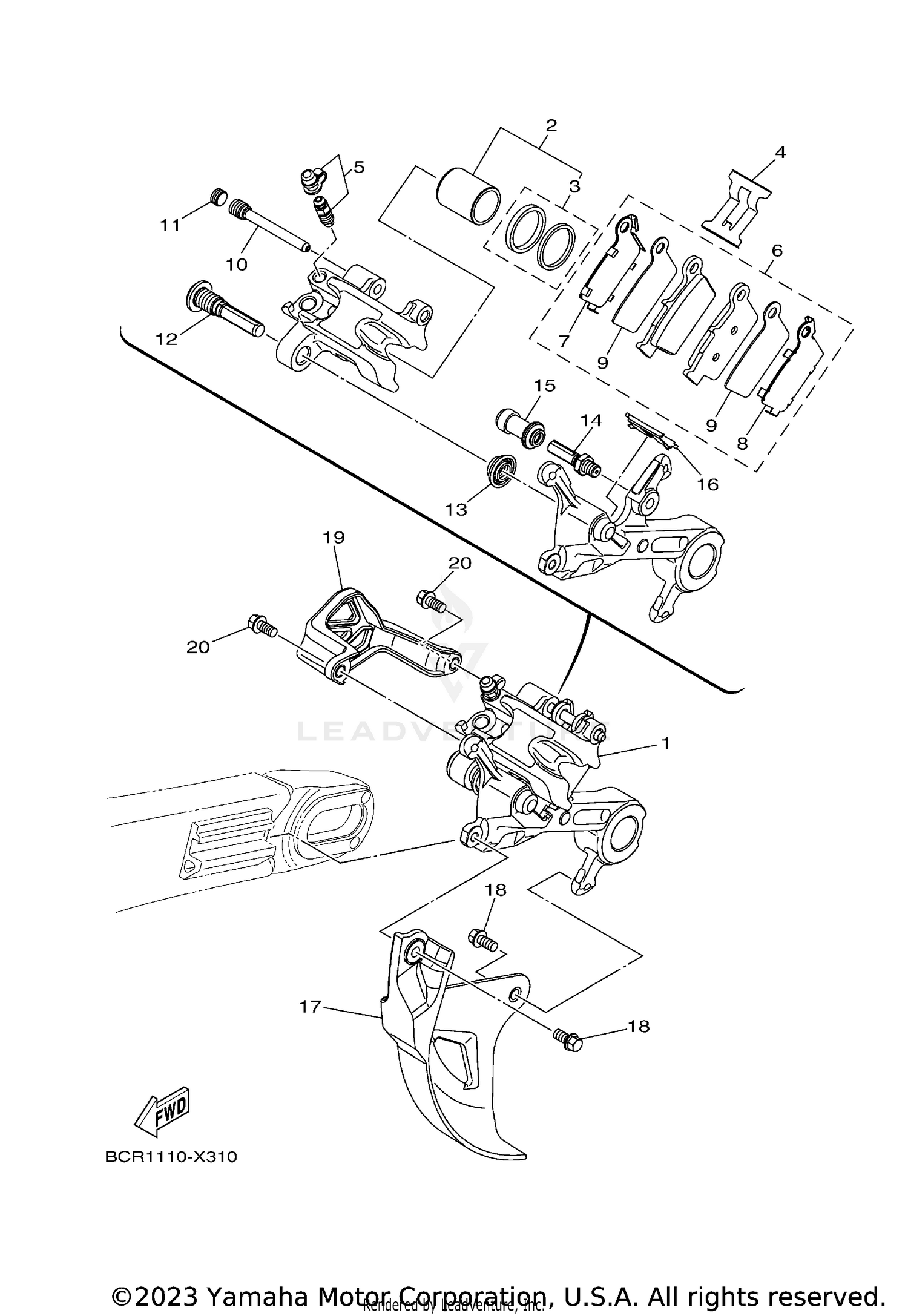

| Ref | Part Number | Description |
|---|
| 1 |
BCR-2580W-00-00 |
CALIPER ASSY, REAR Price: $293.99 |
| 2 |
5UN-W0057-50-00 |
PISTON ASSY, CALIPER Price: $62.99 |
| 3 |
5UN-W0047-50-00 |
CALIPER SEAL KIT Price: $17.99 |
| 4 |
5DH-25919-50-00 |
SUPPORT, PAD Price: $22.99 |
| 5 |
36Y-W0048-00-00 |
BLEED SCREW KIT This part replaces 1UY-W0048-50-00. Price: $10.99 |
| 6 |
1C3-W0046-50-00 |
BRAKE PAD KIT 2 Price: $55.99 |
| 7 |
5UN-25828-60-00 |
SHIM, CALIPER Price: $12.99 |
| 8 |
5UN-25827-60-00 |
SHIM, CALIPER Price: $16.49 |
| 9 |
5UN-22898-60-00 |
INSULATOR, HEAT Price: $21.99 |
| 10 |
8CR-25924-00-00 |
PIN, PAD Price: $15.49 |
| 11 |
5DH-25916-00-00 |
PLUG Price: $10.99 |
| 12 |
5DH-25914-50-00 |
PIN, SLIDE Price: $24.99 |
| 13 |
3JD-25917-00-00 |
BOOT, CALIPER Price: $9.49 |
| 14 |
5UN-25914-00-00 |
PIN, SLIDE Price: $15.49 |
| 15 |
1UY-25937-51-00 |
BOOT 2 Price: $15.49 |
| 16 |
5UN-25913-00-00 |
RETAINER Price: $19.99 |
| 17 |
17D-25718-50-00 |
PROTECTOR, DISC BRAKE Price: $32.99 |
| 18 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 19 |
B2W-2583E-00-00 |
PROTECTOR, CALIPER Price: $16.49 |
