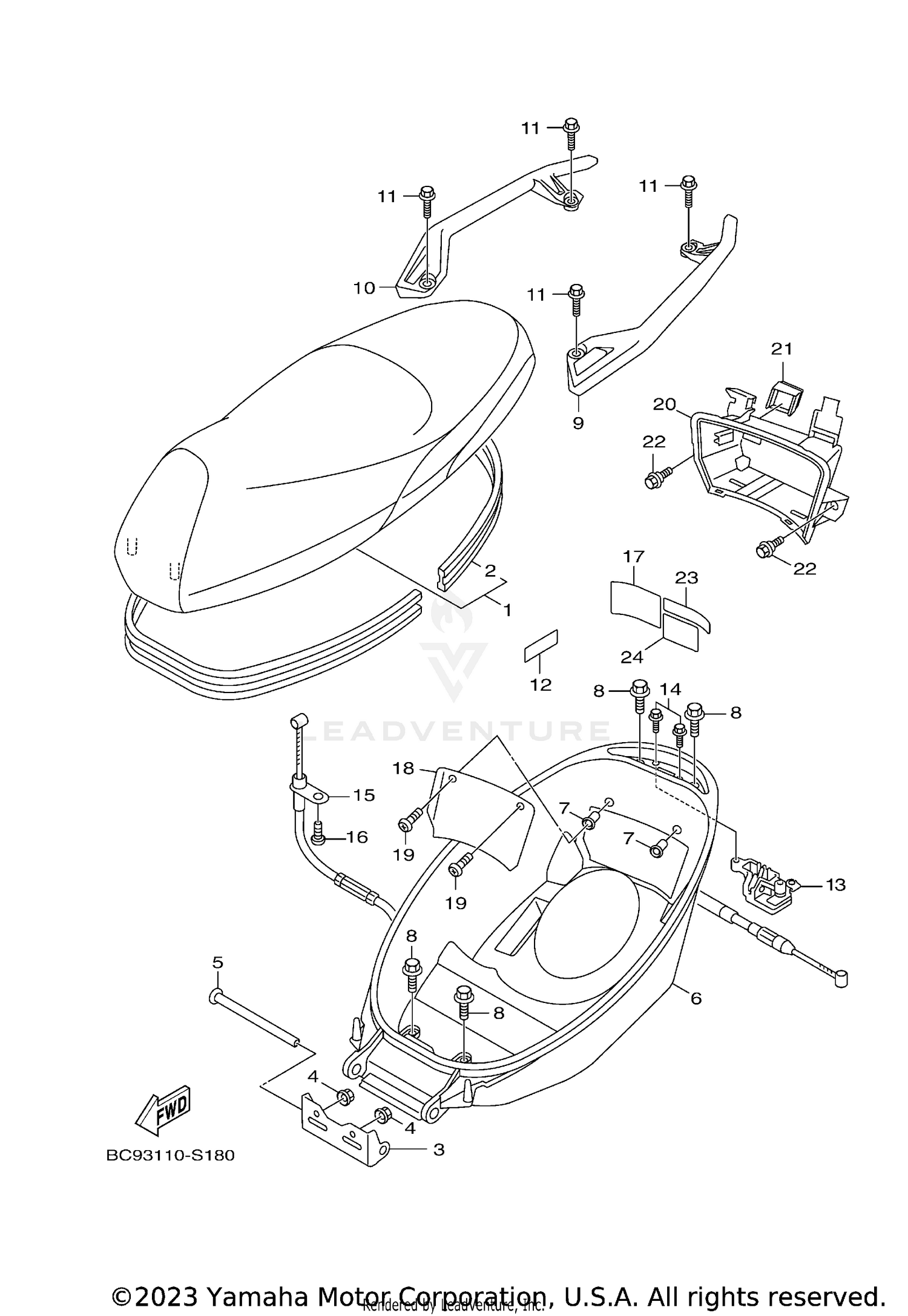

| Ref | Part Number | Description |
|---|
| 1 |
2JS-F4730-12-00 |
DOUBLE SEAT ASSY This part replaces 2JS-F4730-11-00. Price: $184.99 |
| 2 |
2JS-F475M-00-00 |
SEAL Price: $13.49 |
| 3 |
2JS-F4726-00-00 |
HINGE, SEAT Price: $8.49 |
| 4 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 5 |
90241-10015-00 |
PIN Price: $13.49 |
| 6 |
2JS-F473R-00-00 |
BOX 1 Price: $52.99 |
| 7 |
90179-05523-00 |
NUT This part replaces 90179-05849-00. Price: $7.49 |
| 8 |
90109-06885-00 |
BOLT Price: $2.35 |
| 11 |
95022-08030-00 |
BOLT, FLANGE Price: $4.20 |
| 12 |
5PJ-F4877-01-00 |
LABEL, CAUTION Price: $0.55 |
| 13 |
5ML-F4780-00-00 |
SEAT LOCK ASSY Price: $19.99 |
| 14 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 15 |
2JS-F478E-00-00 |
CABLE, SEAT LOCK Price: $19.49 |
| 16 |
90119-05022-00 |
BOLT, WITH WASHER Price: $8.49 |
| 17 |
24P-F1668-00-00 |
LABEL, TIRE Price: $1.00 |
| 18 |
2JS-H2129-01-00 |
COVER, BATTERY Price: $3.55 |
| 19 |
98907-05014-00 |
SCREW, BIND Price: $9.49 |
| 20 |
2JS-XH21B-02-00 |
BOX, BATTERY Price: $14.49 |
| 21 |
2JS-H215B-00-00 |
CAP Price: $1.95 |
| 22 |
90109-06172-00 |
BOLT Price: $3.50 |
| 23 |
4JK-F8446-01-00 |
LABEL, CAUTION Price: $1.40 |
