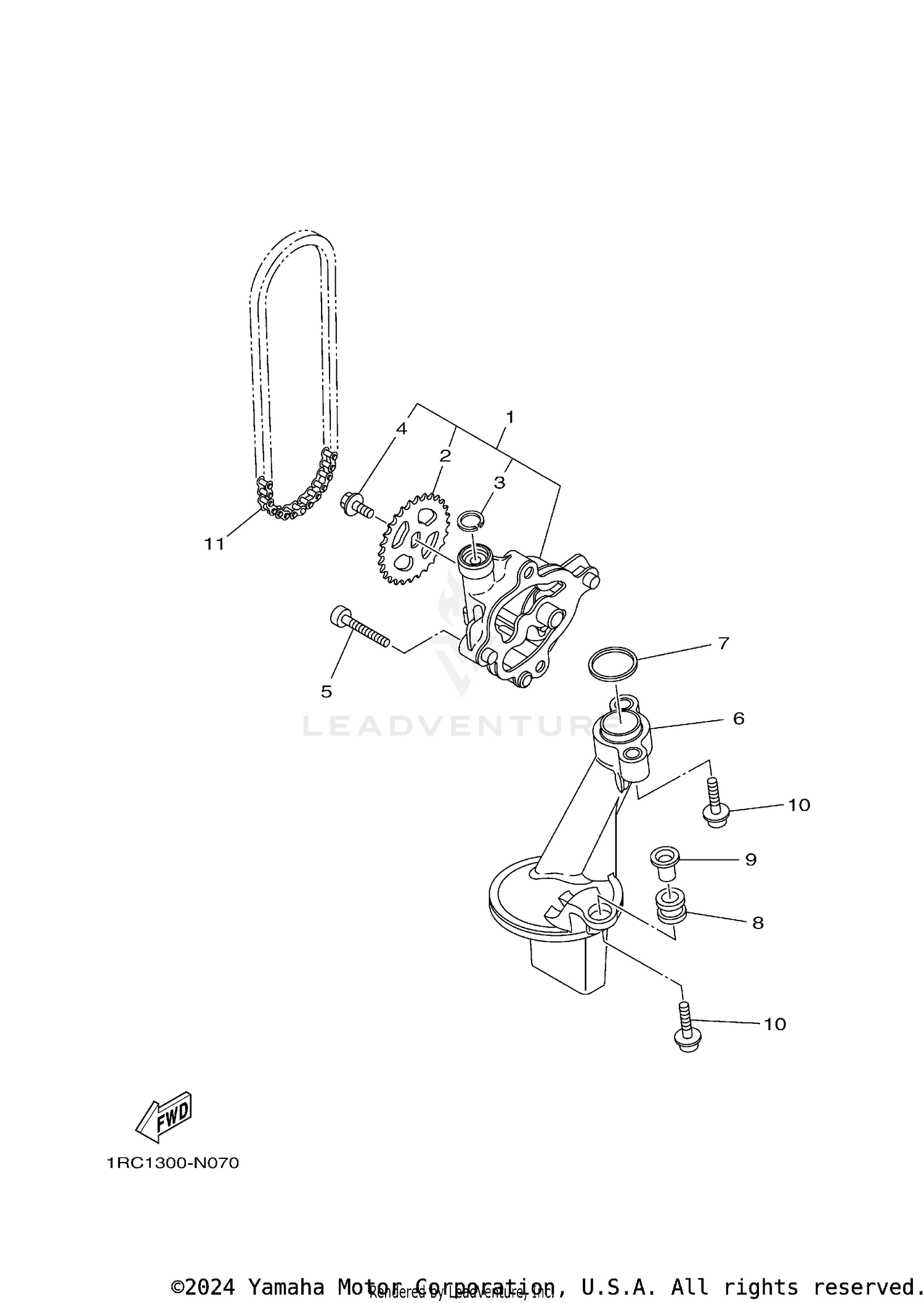

OIL PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1RC-13300-00-00 | OIL PUMP ASSY Price: $160.99 |
| 2 | 1RC-13355-00-00 | SPROCKET, DRIVEN Price: $41.99 |
| 3 | 99009-15500-00 | CIRCLIP Price: $11.49 |
| 4 | 90105-06066-00 | BOLT, FLANGE Price: $9.49 |
| 5 | 91312-06035-00 | BOLT, HEXAGON SOCKET HEAD Price: $3.28 |
| 6 | 1RC-13410-00-00 | STRAINER HOUSING ASSY Price: $38.99 |
| 7 | 93210-22001-00 | O-RING Price: $8.49 |
| 8 | 90480-13010-00 | GROMMET Price: $8.49 |
| 9 | 5VY-13117-10-00 | COLLAR, DISTANCE Price: $9.49 |
| 10 | 90110-06172-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06173-00. Price: $10.49 |
