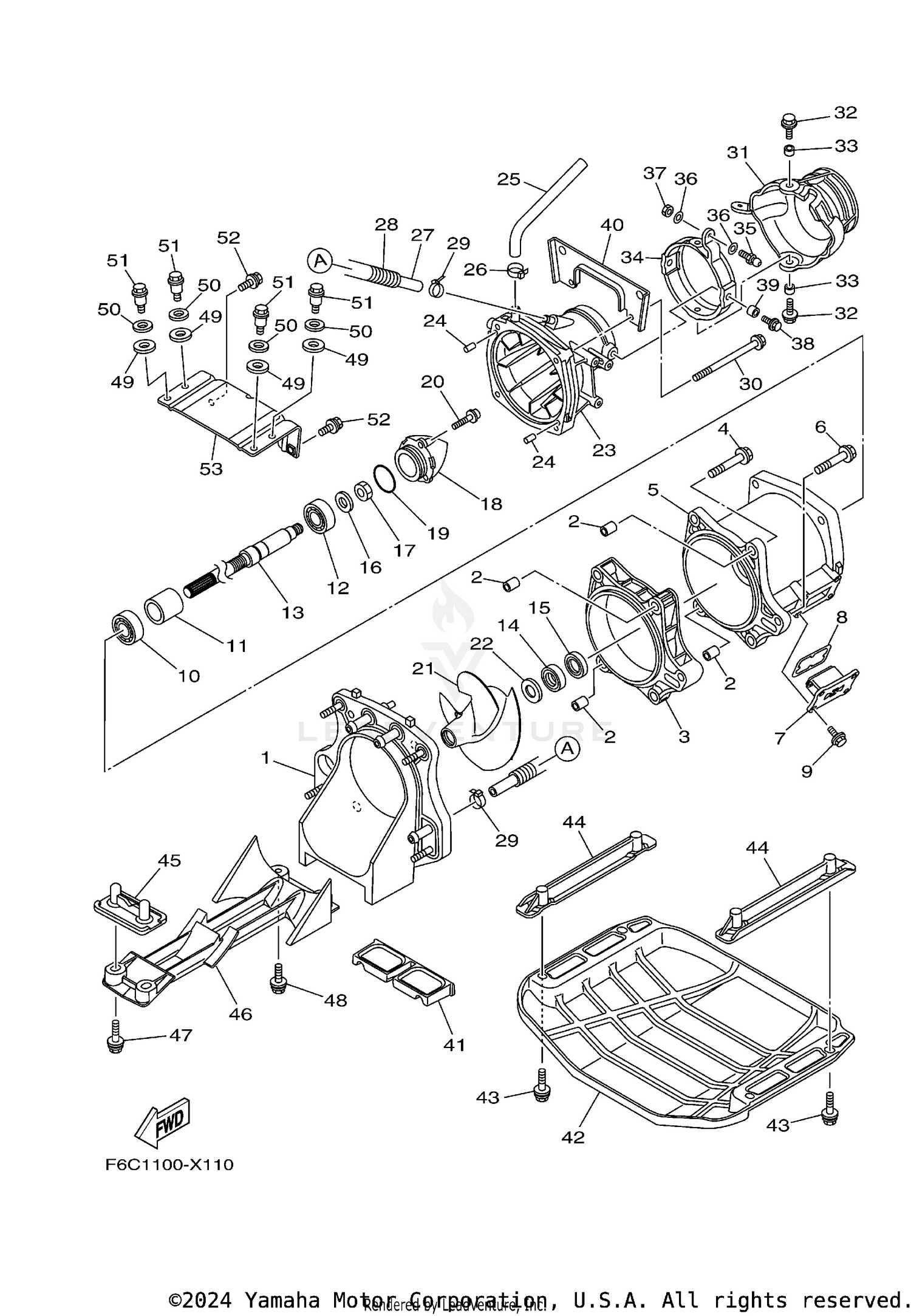

| Ref | Part Number | Description |
|---|
| 1 |
6GA-G5831-00-00 |
PLATE, TRANSOM Price: $165.99 |
| 2 |
99590-14016-00 |
PIN, DOWEL Price: $4.60 |
| 3 |
6GY-R1317-00-00 |
HOUSING, IMPELLER Price: $117.99 |
| 4 |
90119-10817-00 |
BOLT, WITH WASHER Price: $8.99 |
| 5 |
6GA-R1312-02-00 |
HOUSING, IMPELLER Price: $263.99 |
| 6 |
97595-10565-00 |
BOLT, WITH WASHER Price: $7.99 |
| 7 |
6GA-G6882-00-00 |
FILTER Price: $12.99 |
| 8 |
6GA-G2414-00-00 |
O-RING Price: $4.99 |
| 9 |
90119-06890-00 |
BOLT,WITH WASHER This part replaces 90119-06889-00. Price: $2.99 |
| 10 |
93306-255X9-00 |
BEARING Price: $18.99 |
| 11 |
65V-G5538-00-00 |
SPACER 1 Price: $11.99 |
| 12 |
93306-304XB-00 |
BEARING Price: $23.99 |
| 13 |
6GY-G5511-00-00 |
SHAFT, DRIVE Price: $273.20 |
| 14 |
93101-28M66-00 |
OIL SEAL Price: $31.99 |
| 15 |
93101-28002-00 |
OIL SEAL Price: $13.99 |
| 16 |
92990-16200-00 |
WASHER, PLAIN This part replaces 92990-16600-00. Price: $9.49 |
| 17 |
95317-16700-00 |
NUT Price: $4.99 |
| 18 |
6GY-R1326-00-00 |
CAP Price: $24.99 |
| 19 |
93210-44003-00 |
O-RING Price: $2.99 |
| 20 |
90110-06823-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06822-00. Price: $6.99 |
| 21 |
6GY-R1321-02-00 |
IMPELLER Price: $316.99 |
| 22 |
6EY-R1348-00-00 |
SPACER Price: $12.99 |
| 23 |
6GY-R1318-00-00 |
NOZZLE Price: $87.99 |
| 24 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 25 |
6GY-U72M2-00-00 |
HOSE 1 Price: $11.99 |
| 26 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 27 |
90445-14M25-00 |
HOSE (L380) This part replaces 90445-14M24-00. Price: $27.99 |
| 28 |
90446-20M24-00 |
HOSE Price: $8.99 |
| 29 |
90465-10098-00 |
CLAMP This part replaces 90465-11829-00. Price: $2.70 |
| 30 |
90119-08882-00 |
BOLT, WITH WASHER Price: $3.99 |
| 31 |
6GY-R1313-00-00 |
NOZZLE, DEFLECTOR Price: $32.99 |
| 32 |
90119-08852-00 |
BOLT,WITH WASHER This part replaces 90119-08851-00. Price: $8.99 |
| 33 |
90387-08M06-00 |
COLLAR Price: $12.49 |
| 34 |
6GY-R1190-00-00 |
RING,TRIM Price: $11.99 |
| 35 |
6ET-U1461-00-00 |
STUD, JOINT BALL Price: $2.99 |
| 36 |
90201-068M4-00 |
WASHER, PLATE Price: $2.30 |
| 37 |
95380-06700-00 |
NUT Price: $9.49 |
| 38 |
90119-08841-00 |
BOLT, WITH WASHER This part replaces 90119-08840-00. Price: $2.99 |
| 39 |
90387-08M06-00 |
COLLAR Price: $12.49 |
| 40 |
6GA-R1959-00-00 |
BRACKET Price: $12.99 |
| 41 |
F3Y-U72C0-00-00 |
SPACER Price: $10.99 |
| 42 |
F3Y-U273B-10-00 |
PLATE 2 Price: $123.99 |
| 43 |
90119-08829-00 |
BOLT, WITH WASHER This part replaces F4L-U3222-00-00. Price: $8.99 |
| 44 |
F0V-U8572-10-00 |
BRACKET 2 Price: $23.99 |
| 45 |
F2S-U8577-00-00 |
BRACKET, 3 Price: $22.99 |
| 46 |
F4L-R1333-00-00 |
SCREEN, INTAKE Price: $51.99 |
| 47 |
F3Y-U1426-01-00 |
BOLT This part replaces F3Y-U1426-00-00. Price: $2.99 |
| 48 |
F3Y-U1426-01-00 |
BOLT This part replaces F3Y-U1426-00-00. Price: $2.99 |
| 49 |
90430-12002-00 |
GASKET Price: $1.99 |
| 50 |
92990-12200-00 |
WASHER, PLAIN Price: $9.49 |
| 51 |
90109-08043-00 |
BOLT This part replaces 90109-08041-00. Price: $4.49 |
| 52 |
90119-08800-00 |
BOLT, WITH WASHER This part replaces 90119-089U7-00. Price: $8.99 |
