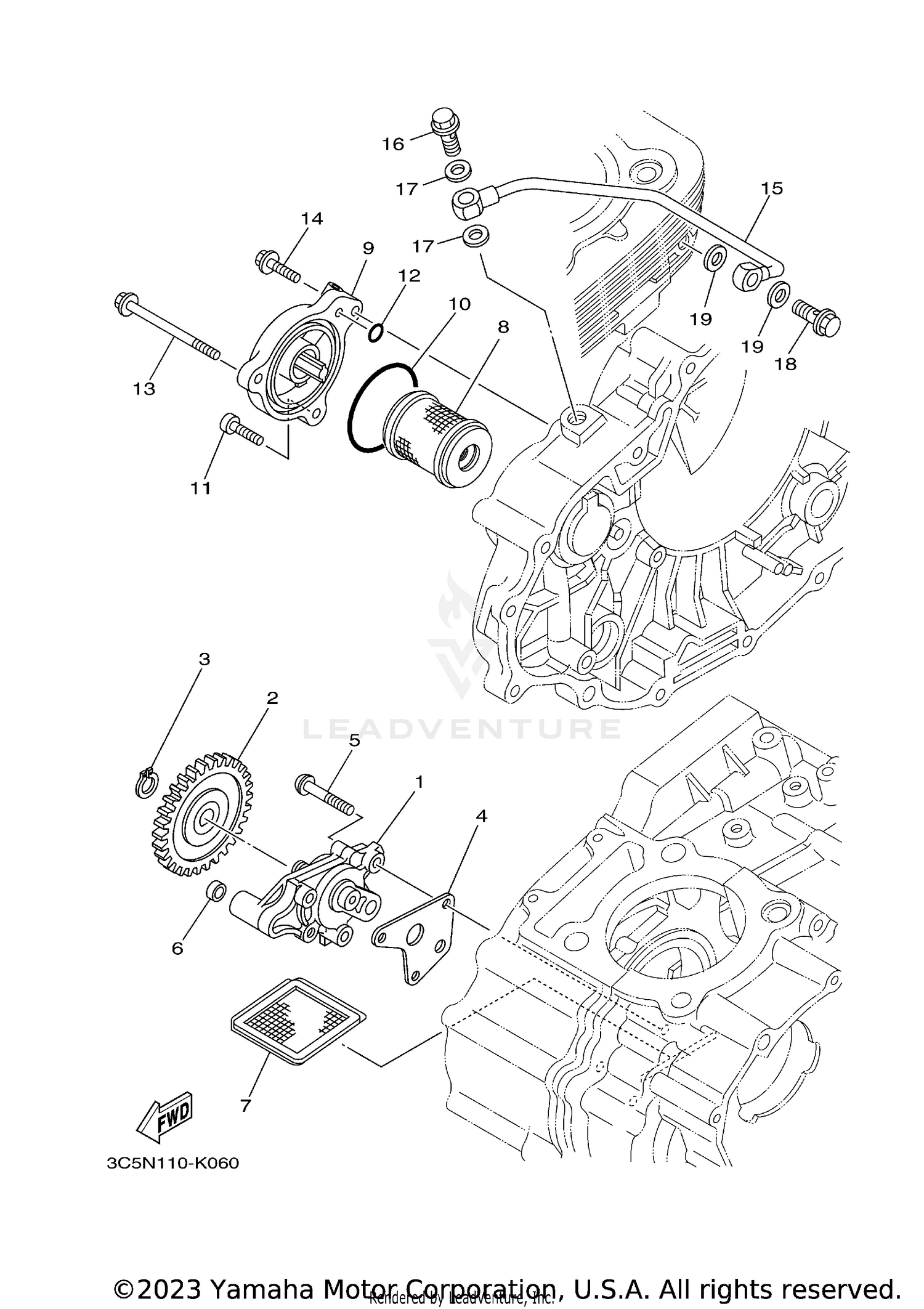

| Ref | Part Number | Description |
|---|
| 1 |
4D3-13300-00-00 |
OIL PUMP ASSY Price: $172.99 |
| 2 |
5BP-13326-01-00 |
GEAR, PUMP DRIVEN 2 (38T) Price: $37.99 |
| 3 |
99009-11400-00 |
CIRCLIP Price: $9.49 |
| 4 |
4D3-13329-00-00 |
GASKET, PUMP COVER Price: $7.49 |
| 5 |
90149-06122-00 |
SCREW This part replaces 90149-06093-00. Price: $9.49 |
| 6 |
90430-06156-00 |
GASKET Price: $4.40 |
| 7 |
22F-13411-01-00 |
STRAINER, OIL Price: $32.99 |
| 8 |
5D3-13440-09-00 |
ELEMENT ASSY, OIL CL This part replaces 5D3-13440-02-00. Price: $14.49 |
| 9 |
5XT-13447-00-00 |
COVER, OIL ELEMENT Price: $72.99 |
| 10 |
93210-54175-00 |
O-RING Price: $13.99 |
| 11 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 12 |
93210-07135-00 |
O-RING Price: $6.99 |
| 13 |
91314-06070-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 14 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.65 |
| 15 |
5XT-13161-01-00 |
PIPE, DELIVERY 1 Price: $72.99 |
| 16 |
90401-10003-00 |
BOLT, UNION Price: $9.49 |
| 17 |
90430-10171-00 |
BOLT, UNION Price: $3.45 |
| 18 |
90401-08007-00 |
BOLT, UNION Price: $9.49 |
