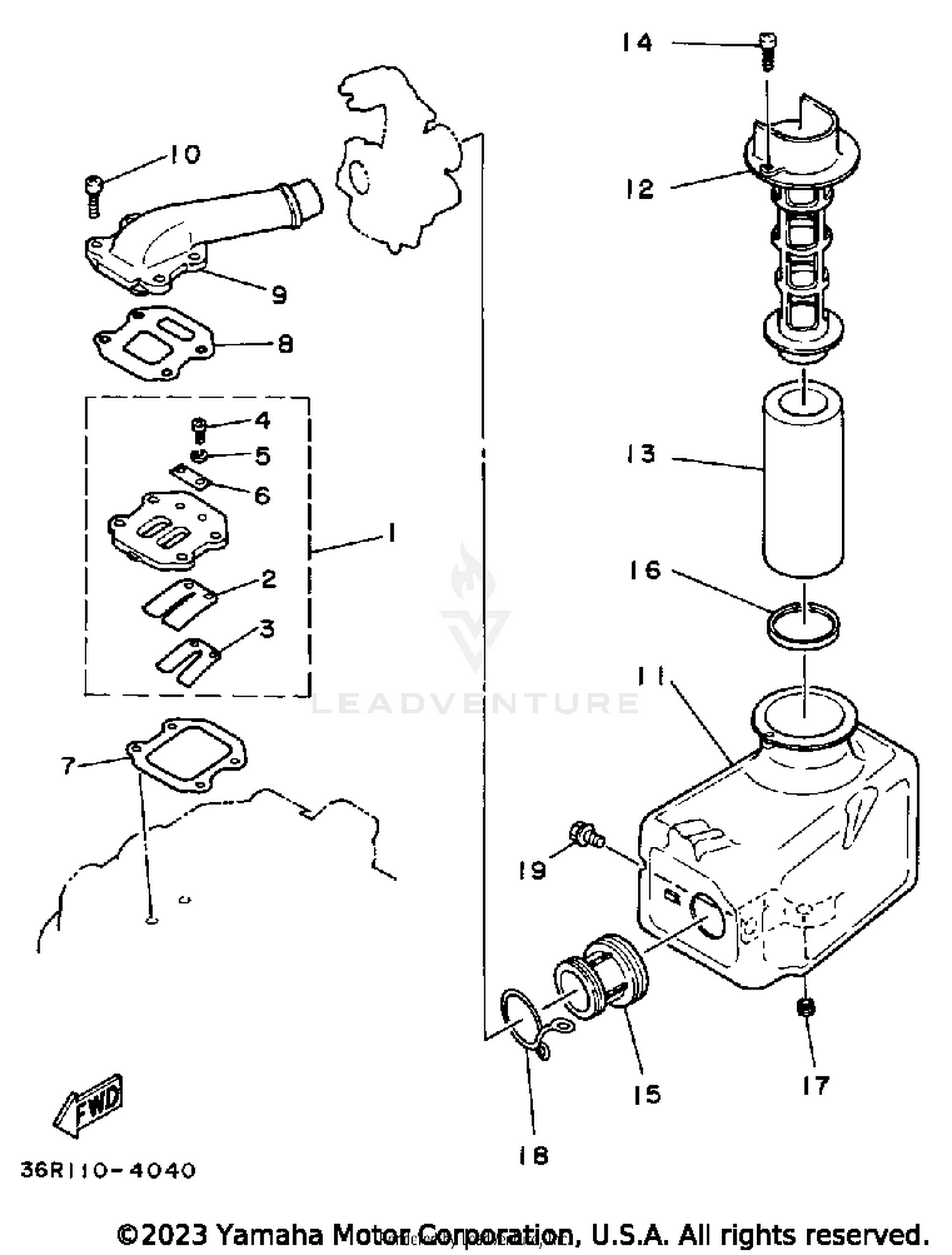

| Ref | Part Number | Description |
|---|
| 1 |
3L5-13610-00-00 |
REED VALVE ASSY Price: $88.99 |
| 2 |
3L5-13613-00-00 |
REED, VALVE Price: $46.99 |
| 3 |
3L5-13616-00-00 |
STOPPER, REED VALVE Price: $10.99 |
| 4 |
98580-03010-00 |
SCREW, PAN HEAD Price: $9.49 |
| 5 |
92990-03100-00 |
WASHER, SPRING (92901-03100-0 Price: $9.49 |
| 6 |
3L5-13624-00-00 |
PLATE, REED VALVE Price: $7.49 |
| 7 |
3HK-13621-00-00 |
GASKET, VALVE SEAT Price: $22.99 |
| 8 |
3L5-13622-10-00 |
GASKET, VALVE SEAT Price: $31.99 |
| 9 |
36R-13555-01-00 |
MANIFOLD, INTAKE Price: $32.70 |
| 10 |
98580-06020-00 |
SCREW, PAN HEAD Price: $9.49 |
| 11 |
36R-14411-00-00 |
CASE, AIR CLEANER 1 Price: $46.99 |
| 12 |
36R-14412-00-00 |
CAP, CLEANER CASE 1 Price: $19.49 |
| 13 |
36R-14451-01-00 |
ELEMENT,AIR CLNR This part replaces 36R-14451-00-00. Price: $11.49 |
| 14 |
97780-50125-00 |
SCREW, TAPPING Price: $3.10 |
| 15 |
36R-14453-00-00 |
JOINT, AIR CLNR 1 Price: $47.99 |
| 16 |
36R-14455-00-00 |
BAND Price: $10.99 |
| 17 |
90480-14100-00 |
GROMMET Price: $9.49 |
| 18 |
90467-20023-00 |
CLIP Price: $6.49 |
