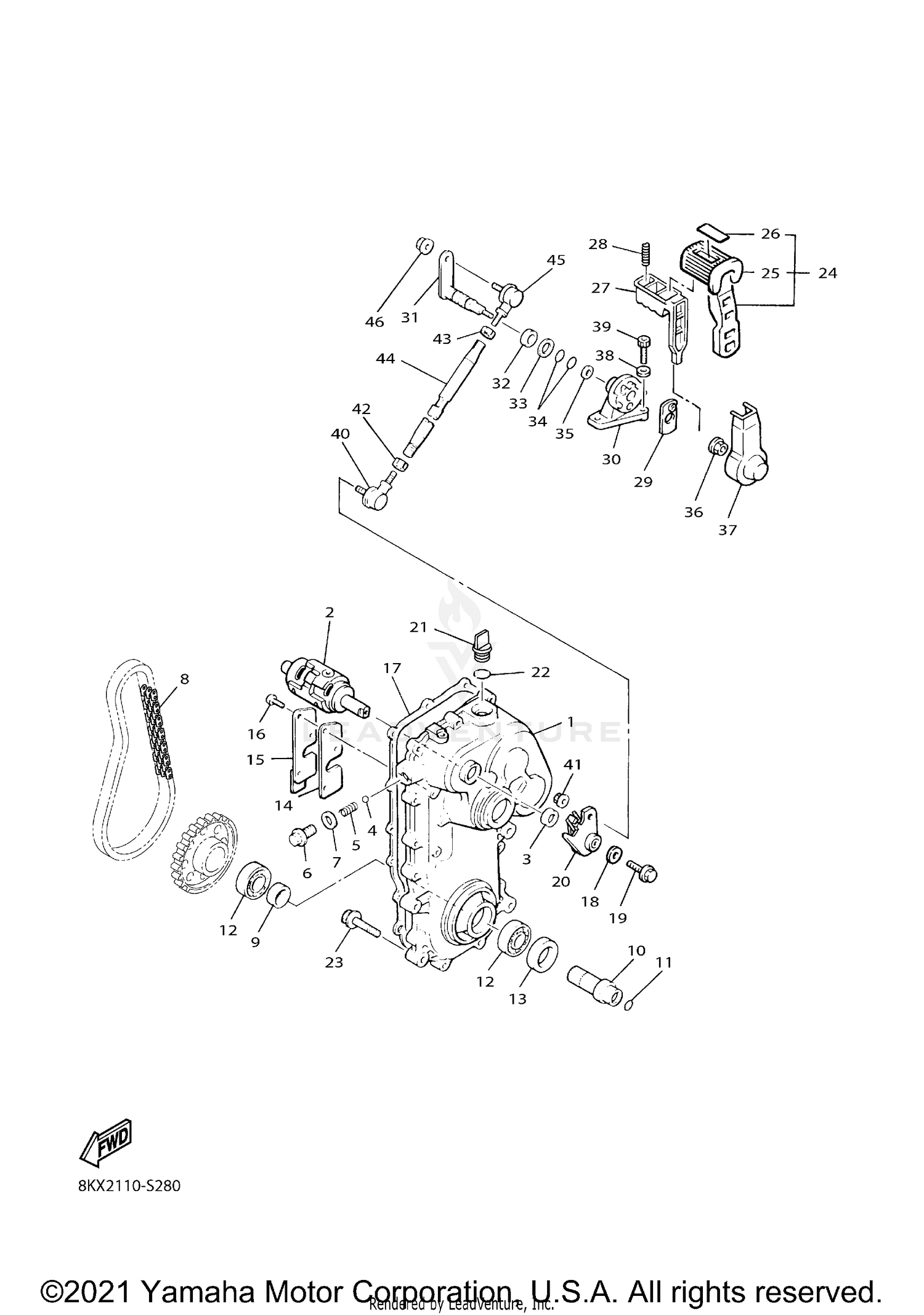

| Ref | Part Number | Description |
|---|
| 1 |
87R-47541-00-00 |
HOUSING, CHAIN Price: $574.99 |
| 2 |
89N-18540-00-00 |
SHIFT CAM ASSY Price: $115.99 |
| 3 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 4 |
93503-08007-00 |
BALL Price: $4.50 |
| 5 |
90501-147A6-00 |
SPRING, COMPRESSION Price: $5.99 |
| 6 |
90105-14003-00 |
BOLT, FLANGE Price: $9.49 |
| 7 |
90430-14194-00 |
GASKET Price: $9.49 |
| 8 |
94591-63070-00 |
CHAIN Price: $123.99 |
| 9 |
90387-405T8-00 |
COLLAR Price: $18.49 |
| 10 |
83R-47571-00-00 |
JOURNAL 1 Price: $202.99 |
| 11 |
93210-28763-00 |
O-RING Price: $8.49 |
| 12 |
93306-90802-00 |
BEARING Price: $147.99 |
| 13 |
93102-46394-00 |
OIL SEAL Price: $16.49 |
| 14 |
85R-47544-02-00 |
GASKET Price: $5.99 |
| 15 |
88N-47591-00-00 |
PLATE Price: $11.99 |
| 16 |
98907-06008-00 |
SCREW, BIND This part replaces 90154-06050-00. Price: $9.49 |
| 17 |
85R-47592-01-00 |
GASKET Price: $21.99 |
| 18 |
90201-06072-00 |
WASHER, PLATE Price: $10.49 |
| 19 |
95817-06035-00 |
BOLT, FLANGE This part replaces 90105-06405-00. Price: $8.49 |
| 20 |
89N-18130-01-00 |
SHIFT SHAFT ASSY Price: $90.99 |
| 21 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 22 |
93210-19123-00 |
O-RING Price: $8.99 |
| 23 |
95817-08040-00 |
BOLT, FLANGE This part replaces 95812-08040-00. Price: $7.49 |
| 24 |
8KX-18150-00-00 |
SHIFT LEVER ASSY Price: $46.99 |
| 25 |
52G-18113-00-00 |
COVER, SHIFT PEDAL Price: $26.99 |
| 26 |
8KX-1815A-00-00 |
LABEL Price: $3.35 |
| 27 |
59V-18174-00-00 |
KNOB, SHIFT LEVER Price: $19.99 |
| 28 |
90501-101A7-00 |
SPRING, COMPRESSION Price: $10.49 |
| 29 |
59V-18561-00-00 |
PLATE, SIDE 1 Price: $5.99 |
| 30 |
59V-18153-01-00 |
GUIDE, SHIFT RETURN SPRING This part replaces 83R-18153-00-00. Price: $90.99 |
| 31 |
83R-18341-00-00 |
SHAFT, RINK Price: $38.99 |
| 32 |
90387-145T7-00 |
COLLAR Price: $4.85 |
| 33 |
90201-144J2-00 |
WASHER, PLATE Price: $9.49 |
| 34 |
93210-10010-00 |
O-RING Price: $2.05 |
| 35 |
90201-064J1-00 |
WASHER, PLATE Price: $5.49 |
| 36 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 37 |
59V-18433-00-00 |
COVER, SHIFT SPRING Price: $21.99 |
| 38 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 39 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 40 |
3X3-18157-10-00 |
JOINT 2 Price: $33.99 |
| 41 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 42 |
95333-08600-00 |
NUT This part replaces 95312-08600-00. Price: $3.80 |
| 43 |
90170-08261-00 |
NUT Price: $2.00 |
| 44 |
83R-18116-00-00 |
JOINT, ROD 1 Price: $36.99 |
| 45 |
3X3-18156-10-00 |
JOINT 1 Price: $33.99 |
