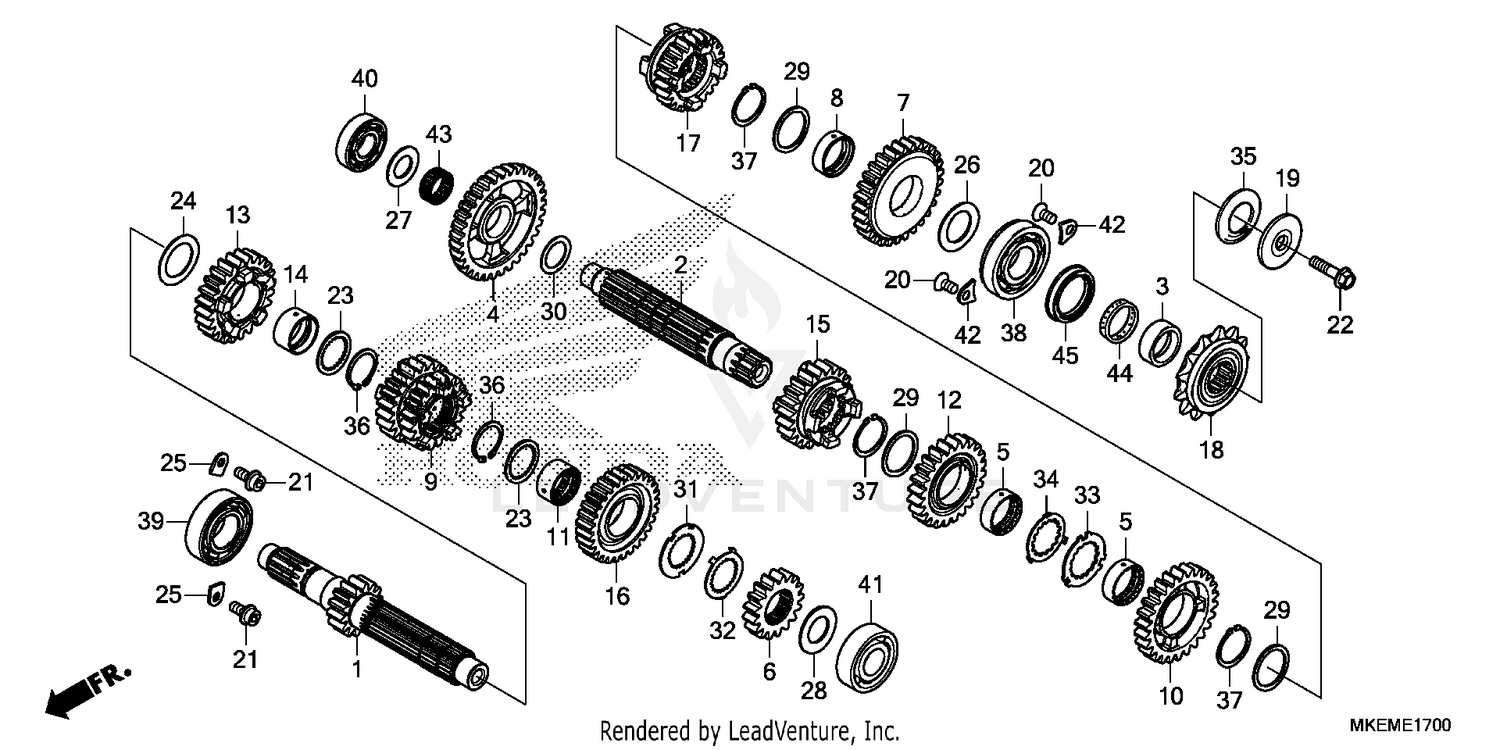

| Ref | Part Number | Description |
|---|
| 1 |
23210-MKE-A50 |
MAINSHAFT (14T) Price: $187.27 |
| 2 |
23221-MKE-A50 |
COUNTERSHAFT Price: $174.55 |
| 3 |
23225-MEN-730 |
COLLAR, COUNTERSHAFT Price: $18.11 |
| 4 |
23421-MKE-A50 |
GEAR, COUNTERSHAFT FIRST (33T) Price: $125.89 |
| 5 |
23422-MV1-000 |
COLLAR, SPLINE (28X10) Price: $22.22 |
| 6 |
23431-MKE-A50 |
GEAR, MAINSHAFT SECOND (17T) Price: $64.18 |
| 7 |
23441-MKE-A50 |
GEAR, COUNTERSHAFT SECOND (29T) Price: $119.25 |
| 8 |
23442-MM4-000 |
COLLAR (28MM) Price: $26.98 |
| 9 |
23451-MKE-A50 |
GEAR, MAINSHAFT THIRD & FOURTH (20T/22T) Price: $155.91 |
| 10 |
23461-MKE-A50 |
GEAR, COUNTERSHAFT THIRD (26T) Price: $119.25 |
| 11 |
23462-MKE-A00 |
COLLAR, SPLINE (26X14.3) Price: $18.85 |
| 12 |
23481-MKE-A50 |
GEAR, COUNTERSHAFT FOURTH (24T) Price: $118.18 |
| 13 |
23491-MKE-A50 |
GEAR, MAINSHAFT FIFTH (24T) Price: $117.02 |
| 14 |
23492-MKE-A50 |
COLLAR (26X29X15) Price: $21.49 |
| 15 |
23501-MKE-A50 |
GEAR, COUNTERSHAFT FIFTH (22T) Price: $131.49 |
| 16 |
23511-MKE-A50 |
GEAR, MAINSHAFT SIXTH (29T) Price: $121.42 |
| 17 |
23521-MKE-A50 |
GEAR, COUNTERSHAFT SIXTH (23T) Price: $131.49 |
| 18 |
23801-MKE-A50 |
SPROCKET, DRIVE (13T) Price: $57.60 |
| 19 |
23802-KSC-670 |
COLLAR, DRIVE SPROCKET Price: $17.80 |
| 20 |
90003-KRN-670 |
SCREW, SPECIAL FLAT (6X12) Price: $2.33 |
| 21 |
90071-MF5-000 |
BOLT, FLANGE SOCKET (6X14) Price: $4.20 |
| 22 |
90112-413-000 |
BOLT, UBS (8X33) Price: $4.84 |
| 23 |
90402-HP6-A00 |
WASHER, SPLINE (26MM) Price: $2.73 |
| 24 |
90407-415-000 |
WASHER, THRUST (26MM) (NOT AVAILABLE) Price: $6.44 |
| 25 |
90441-KRM-840 |
PLATE, BEARING HOLDER Price: $0.69 |
| 26 |
90445-MEN-A70 |
WASHER, THRUST (24.1X37X1.5) Price: $3.85 |
| 27 |
90446-MKE-A00 |
WASHER, THRUST (17.1X30X1.5) Price: $3.91 |
| 28 |
90451-MEW-D40 |
WASHER, THRUST (20MM) Price: $3.24 |
| 29 |
90452-MR7-000 |
WASHER, SPLINE (28X34X1.5) Price: $7.24 |
| 30 |
90453-360-000 |
WASHER, THRUST (20MM) (SOURCE: VINTAGE PARTS INC.) Price: $3.76 |
| 31 |
90461-MKE-A00 |
WASHER, SPLINE (26MM) Price: $3.62 |
| 32 |
90462-MKE-A00 |
WASHER, LOCK (26MM) Price: $3.84 |
| 33 |
90463-MCJ-000 |
WASHER, SPLINE (28MM) Price: $6.35 |
| 34 |
90464-MCJ-000 |
WASHER, LOCK (28MM) Price: $6.35 |
| 35 |
90501-KSC-670 |
WASHER, SPRING (24MM) Price: $5.35 |
| 36 |
90602-MKE-A00 |
CIRCLIP, SPECIAL (OUTER) (26MM) Price: $3.24 |
| 37 |
90603-MN4-000 |
CIRCLIP (28MM) Price: $4.71 |
| 38 |
91001-MEN-A71 |
BEARING, RADIAL BALL (24X56X14) (NTN) Price: $16.95 |
| 39 |
91003-MKE-A51 |
BEARING, RADIAL BALL SPECIAL (6205U) Price: $30.04 |
| 40 |
91006-MKE-A51 |
BEARING, RADIAL BALL (17X40X11) Price: $23.62 |
| 41 |
91011-HN2-004 |
BEARING, RADIAL BALL (6204U SPL.) (KOYO) Price: $19.51 |
| 42 |
91012-KA3-710 |
PLATE, COUNTERSHAFT BEARING Price: $6.13 |
| 43 |
91023-MKE-A51 |
BEARING, NEEDLE (20X24X9.6) Price: $12.18 |
| 44 |
91201-MKE-A71 |
D-RING (23.75MM) Price: $3.84 |
